Dell Precision M6600 - DC-in Jack Replacement; Removing the DC-in Jack

DC-in Jack 26
Removing The DC-in Jack
1. Follow the procedures in Before Working On Your Computer
2. Remove the battery .
3. Remove the base cover .
4. Remove the keyboard trim .
5. Remove the keyboard .
6. Remove the optical drive .
7. Remove the primary hard drive .
8. Remove the secondary hard drive .
9. Remove the CPU fan .
10. Remove the palm rest .
11. Remove the CPU heatsink .
12. Remove the Input/Output board .

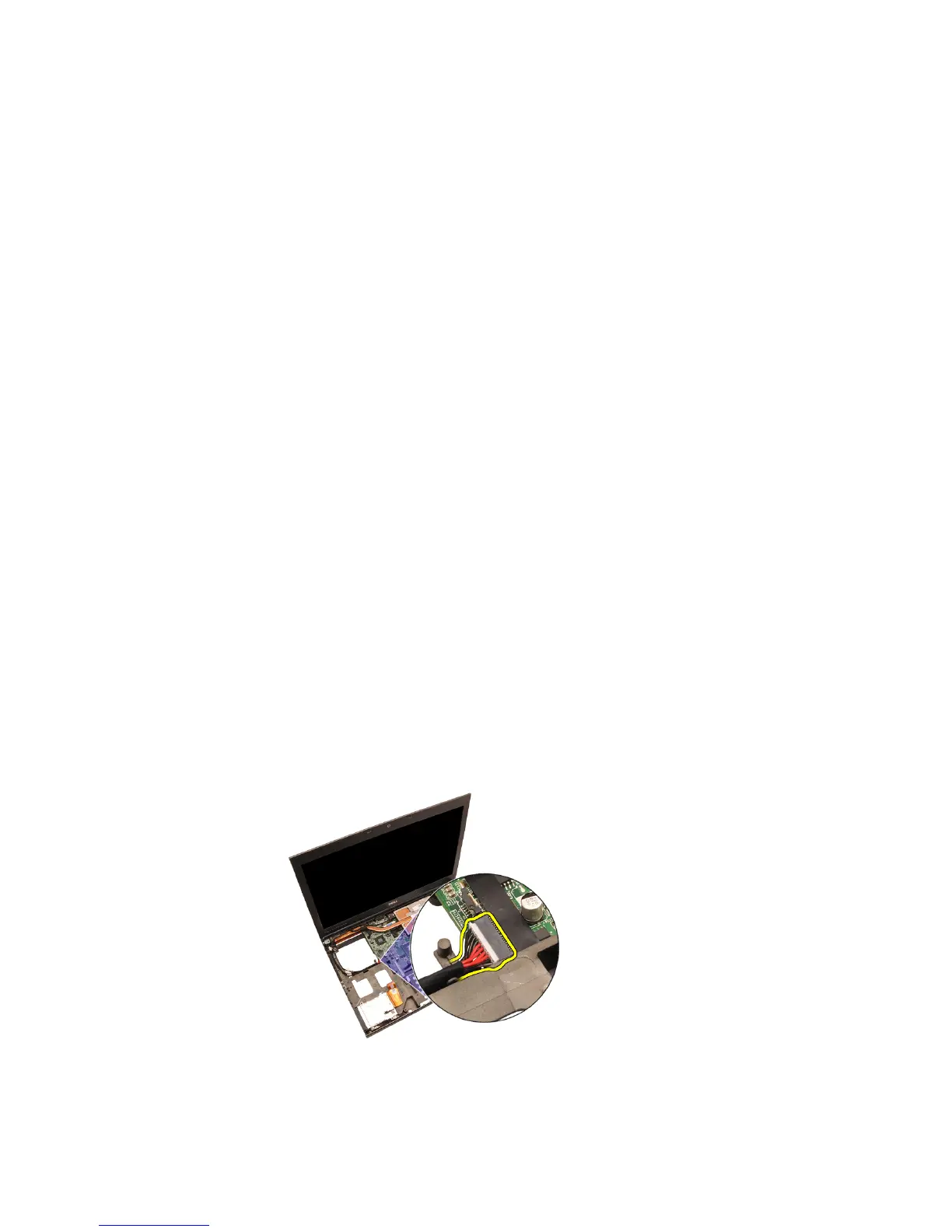

13. Disconnect the DC-in cable from the system board.
14. Remove the single screw securing the DC-in bracket in place.
73
