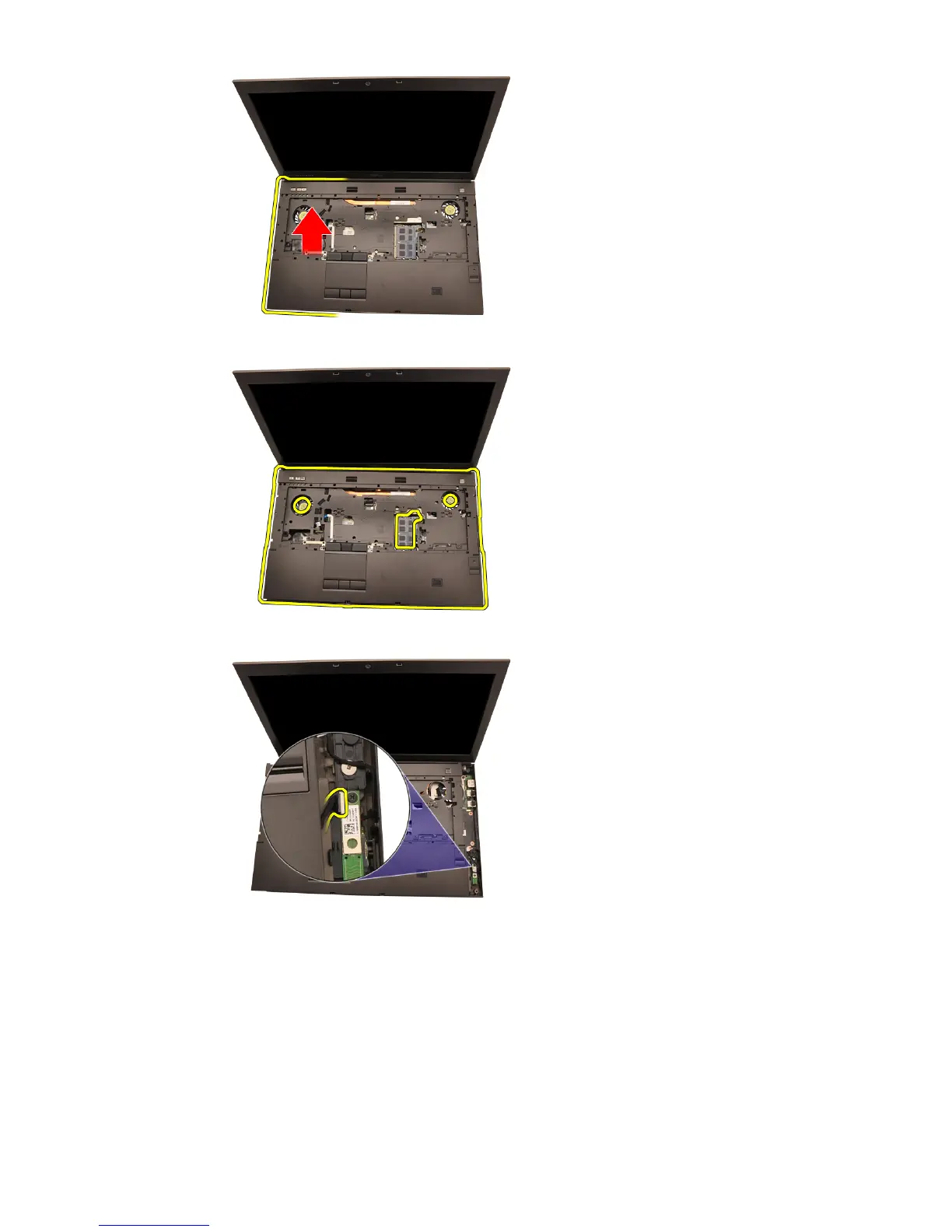

20. Release the tabs along the edges of the palmrest.

21. Disconnect the Bluetooth cable from the Bluetooth module.

22. Remove the palm rest.

55
