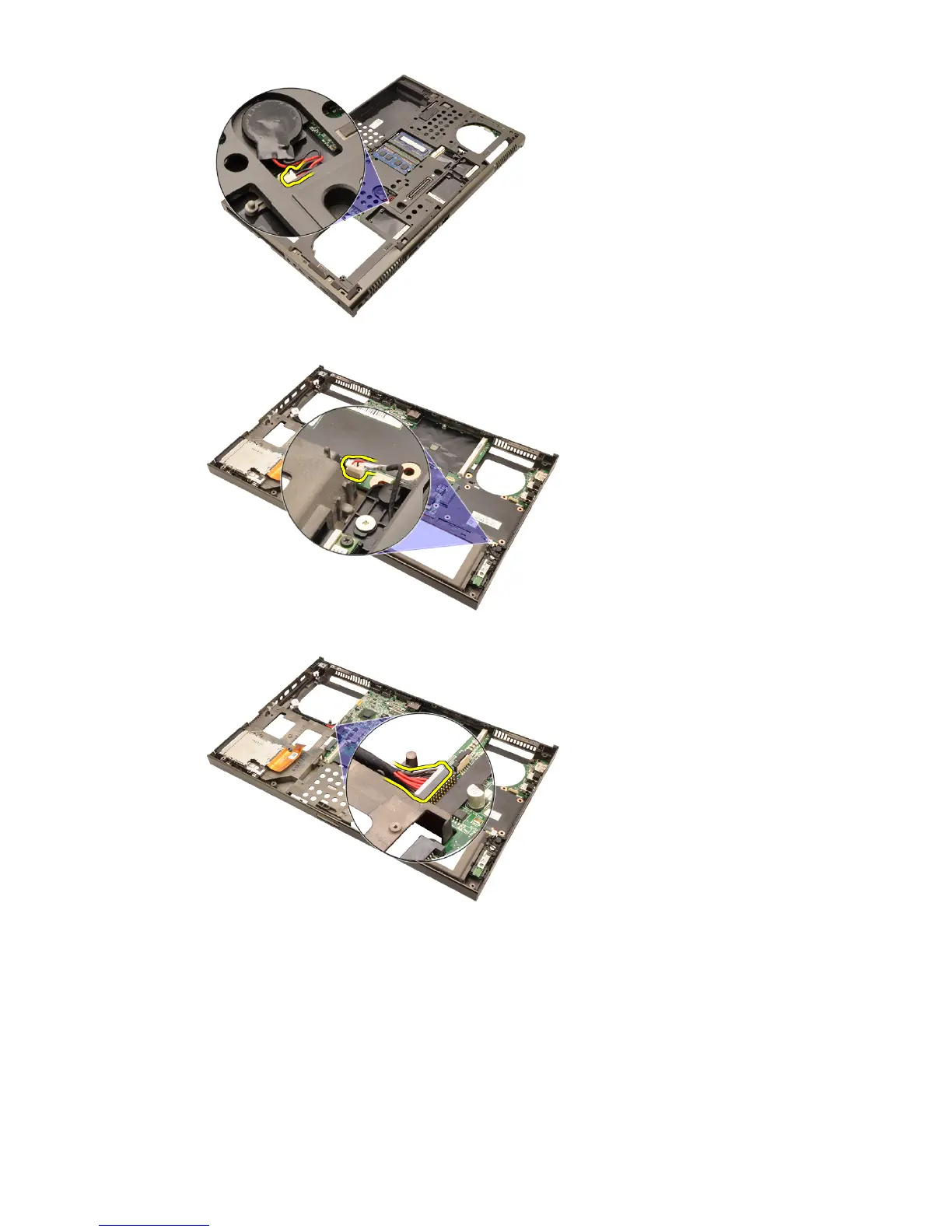

23. Disconnect the wireless switch cable on the top side of the system board.

24. Disconnect the DC-in cable.

25. Remove the screws securing the system board in place.

84
