Example

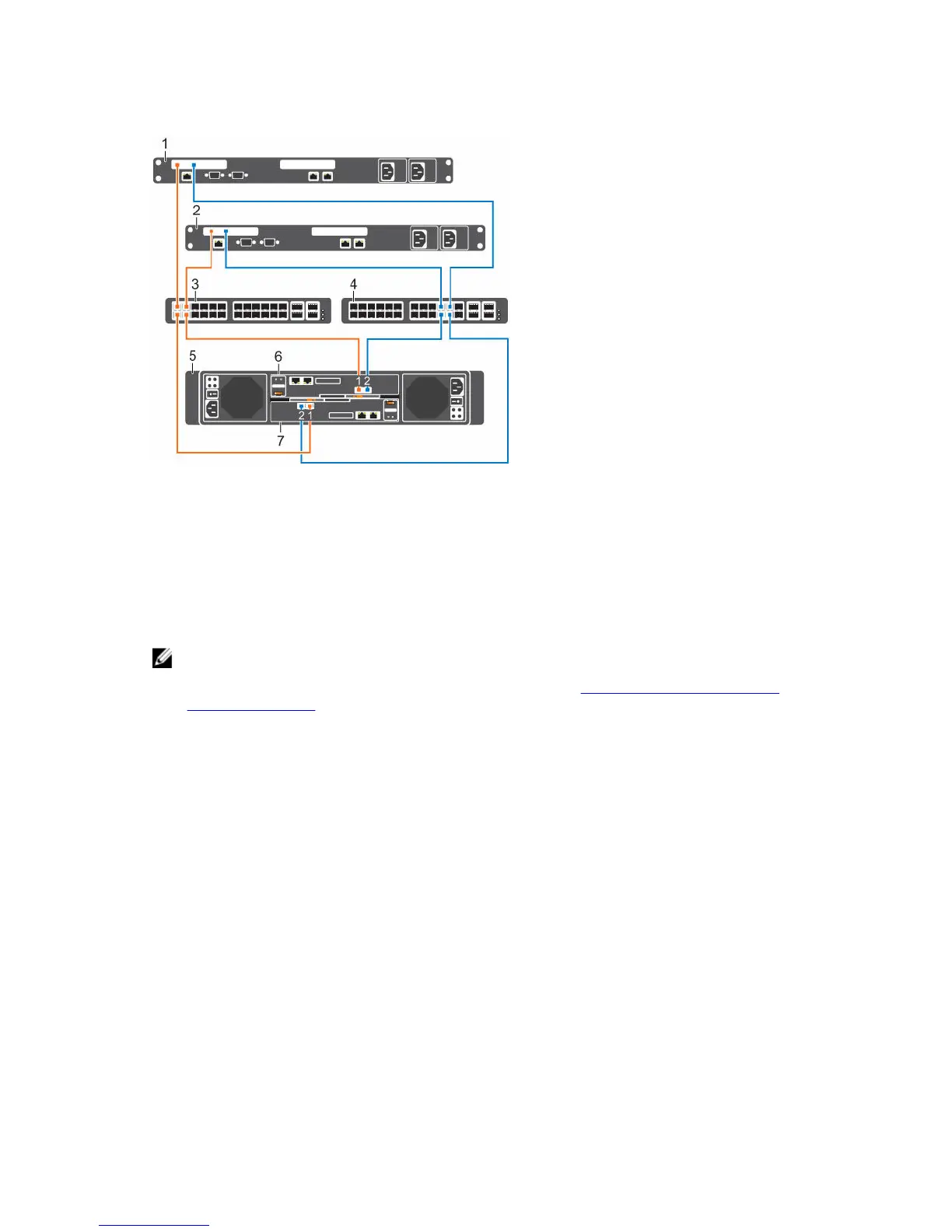

Figure 40. Storage System with Dual 10 GbE Storage Controllers and Two Ethernet Switches
1. Server 1 2. Server 2
3. Ethernet switch 1 (fault domain 1) 4. Ethernet switch 2 (fault domain 2)
5. Storage system 6. Storage controller 1
7. Storage controller 2
Next steps
Install or enable MPIO on the host servers.
NOTE: After the Storage Center configuration is complete, run the host access wizard to configure
host server access and apply MPIO best practices.
For the latest best practices, see the Dell Storage
Center Best Practices document on the Dell TechCenter site (http://en.community.dell.com/
techcenter/storage/).
Two iSCSI Networks with Dual 1 GbE 4-Port Storage Controllers
Use two iSCSI networks to prevent an unavailable port, switch, or storage controller from causing a loss
of connectivity between the host servers and a storage system with dual 1 GbE 4-port storage
controllers
.
About this task
This configuration includes two fault domains, two iSCSI networks, and two Ethernet switches. The
storage controllers connect to each Ethernet switch using two iSCSI connections.
• If a physical port becomes unavailable, the virtual port moves to another physical port in the same
fault domain on the same storage controller.
• If an Ethernet switch becomes unavailable, the storage system is accessed from the switch in the
other fault domain.
• If a storage controller becomes unavailable, the virtual ports on the offline storage controller move to
physical ports on the other storage controller.
Steps
1. Connect each server to both iSCSI networks.
2. Connect fault domain 1 (shown in orange) to iSCSI network 1.
50
Connect the Front End
