AH Motion – Hardware Manual
3-68
_3

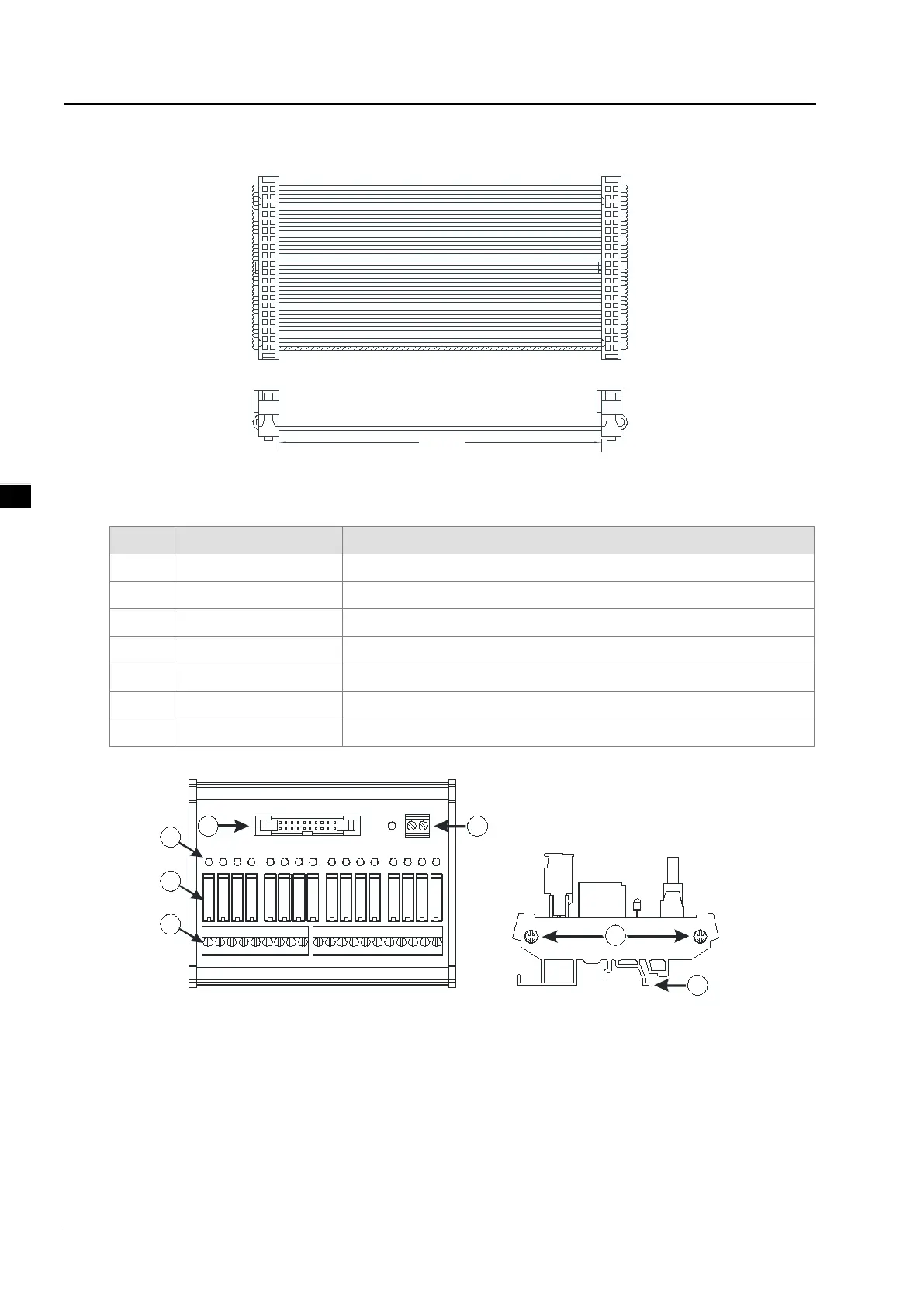

Dimensions:
100
1 2
1 2
39 4039 40
Dimensions are in cm.
- External terminal modules for AH32AN02T-5C/AH64AN02T-5C
Number
Name
Description
1
20-pin MIL connector
Connecting the external terminal module and a digital input/output module
2
Output LED indicator
If there is an output signal, the output LED indicator is ON.
3
Output relay
Output relay
4 Output terminal Output terminal for wiring
5
Power input terminal
Power input terminal for wiring
6
Clip 
Hanging the external terminal module on a DIN rail
7 Set screw Fixing the base
UB-10-OR16A(DVPAETB-OR16A)
5
7
2
1
3
4
6
