Delta AH Motion Series - Page 127

Chapter 3 Product Specifications
3-95
3_

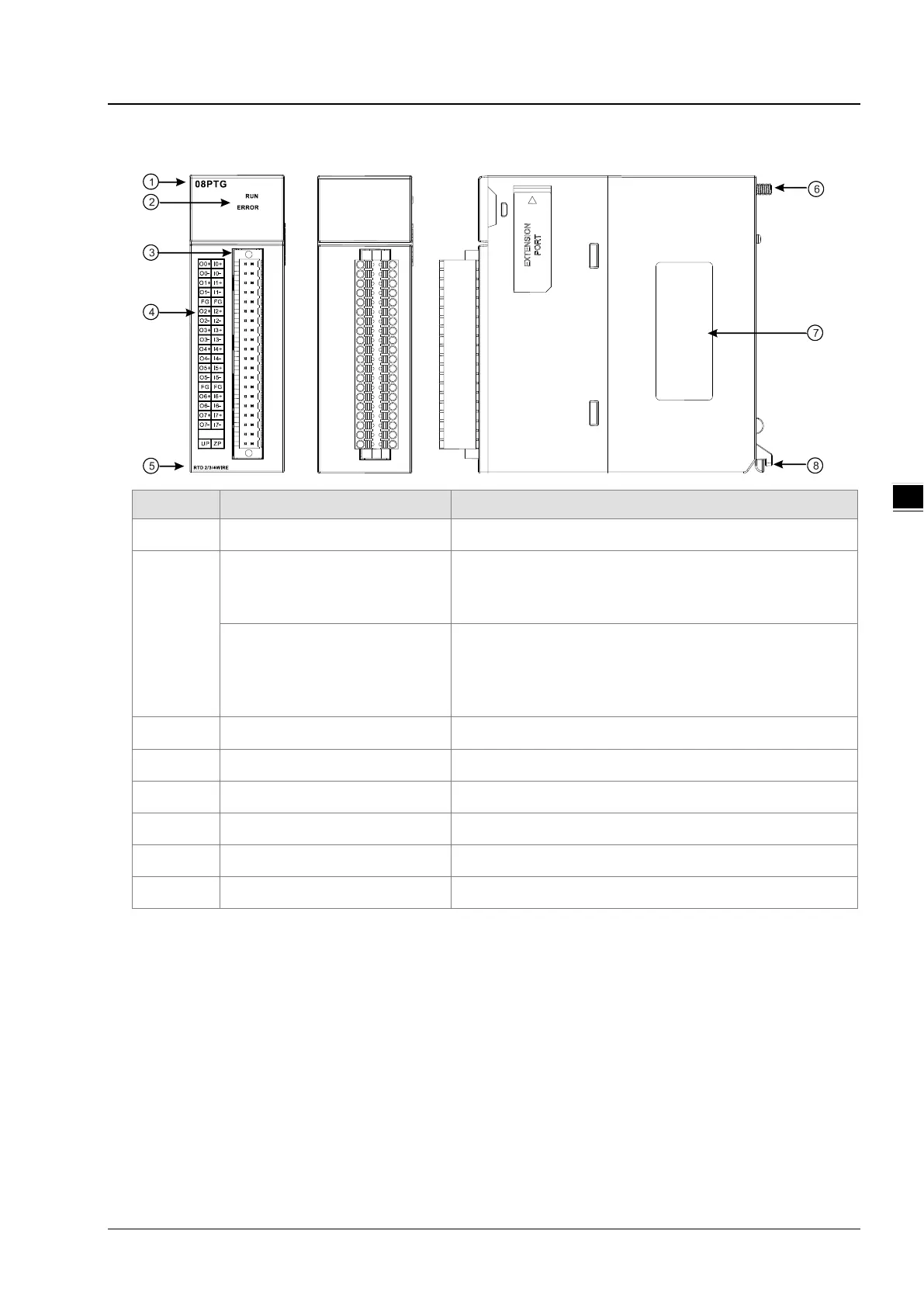

 AH08PTG-5A
Number
Name
Description
1
Model name
Model name of the module
2
RUN LED indicator
Operating status of the module
ON: The module is running.
OFF: The module stops running.
ERROR LED indicator
Error status of the module
ON: A serious error occurs in the module.
OFF: The module is normal.
Blinking: A slight error occurs in the module.
3
Removable terminal block
The inputs are connected to a sensor.
4
Arrangement of the input terminals
Arrangement of the terminals
5
Description of the inputs
Simple specifications for the module
6 Set screw Fixing the module
7
Label
Nameplate
8
Projection
Fixing the module
