AH Motion – Hardware Manual
3-100
_3
Number
Name
Description
port.
RX1/RX2 LED indicator (orange)
Blinking: The data is being reveived through the RS-485/RS422 port.
OFF: The data is not being reveived through the RS-485/RS422
port.
3
Switch of terminal resistor 1
Switching terminal resistor 1 ON/OFF
4
Terminals
Terminals for COM1 (RS-422)
5 Terminals Terminals for COM1 (RS-485)
6
Switch of terminal resistor 2
Switching terminal resistor 2 ON/OFF
7
Terminals
Terminals for COM2 (RS-422)
8 Terminals Terminals for COM2 (RS-485)
9
European-style terminal block
Terminals for wiring
10 Label Nameplate
11
Set screw
Fixing the module
12
Connector
Connecting the module and a backplane
13 Projection Fixing the module

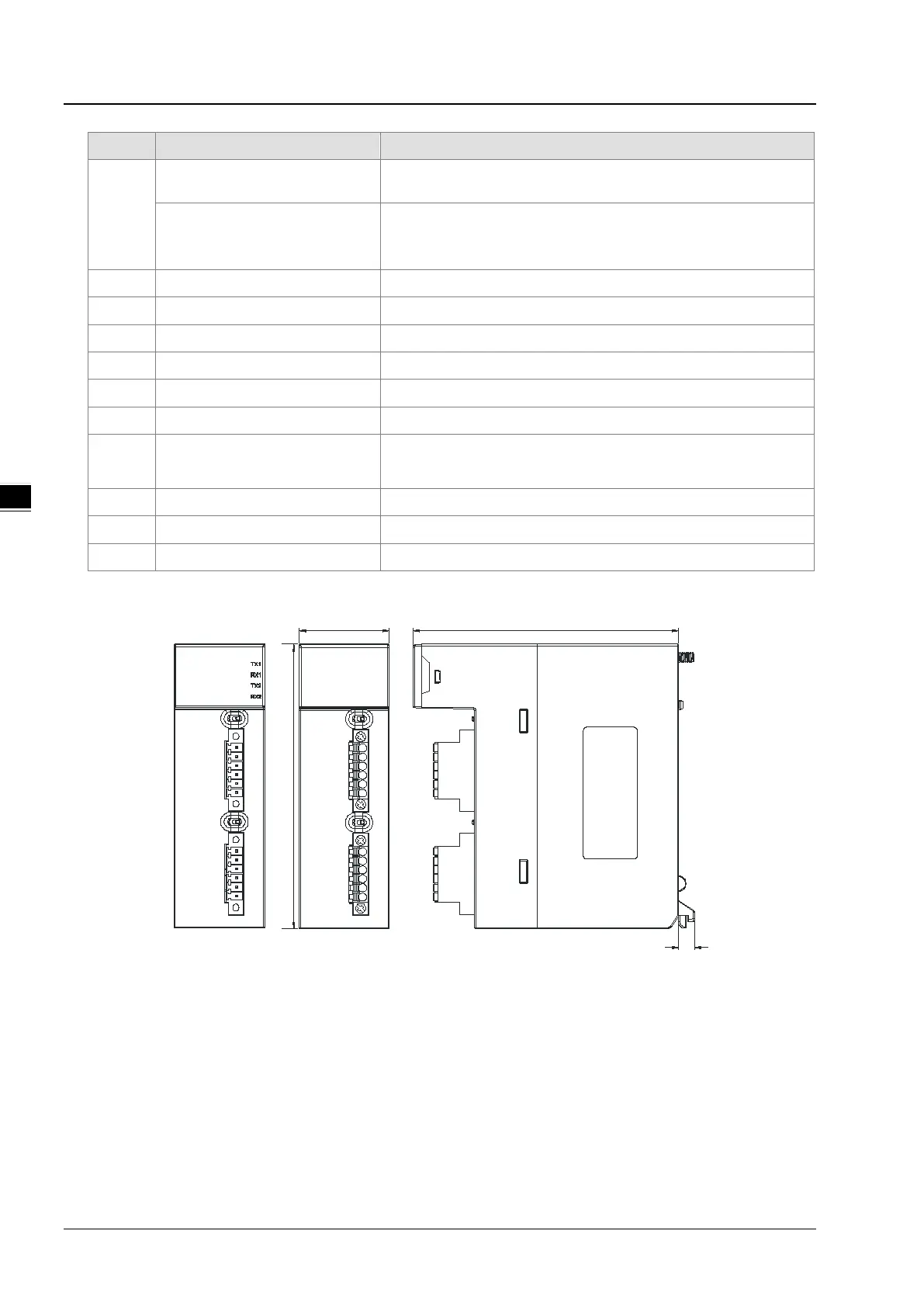

Dimensions:
110
35
6
103
D+
D-
ON
TR 2
COM2
TX+
RX+
RX-
TX-
OFF
D+
D-
10SCM
RX+
RX-
COM1
TX-
TX+
TR 1
ON
COM2 RS485
COM1 RS485
RUN
ERROR
OFF
GND
FG
FG
GND
GND
FG
GND
FG
Dimensions are in mm.
