Chapter 3 Product Specifications
3-101
3_
 AH10COPM-5A
7
10
9
8
DR 2
RUN
ERROR
x16
x16
N
O
Node Address
DR 1
DR 0
IN 0
GND
CAN-
SHLD
CAN+
1
2
3
4
6
5
10COPM
Number
Name
Description
1
Model name
Model name of the module
2 Address knobs For setting an address
3
Function switch
For setting a function
4
CANopen connector
For a CANopen connection
5 RUN LED indicator Operating status of the module
6 ERROR LED indicator Error status of the module
7
Removable terminal block
Terminals
8
Set screw
Fixing the module
9 Label Nameplate
10
Projection
Fixing the module

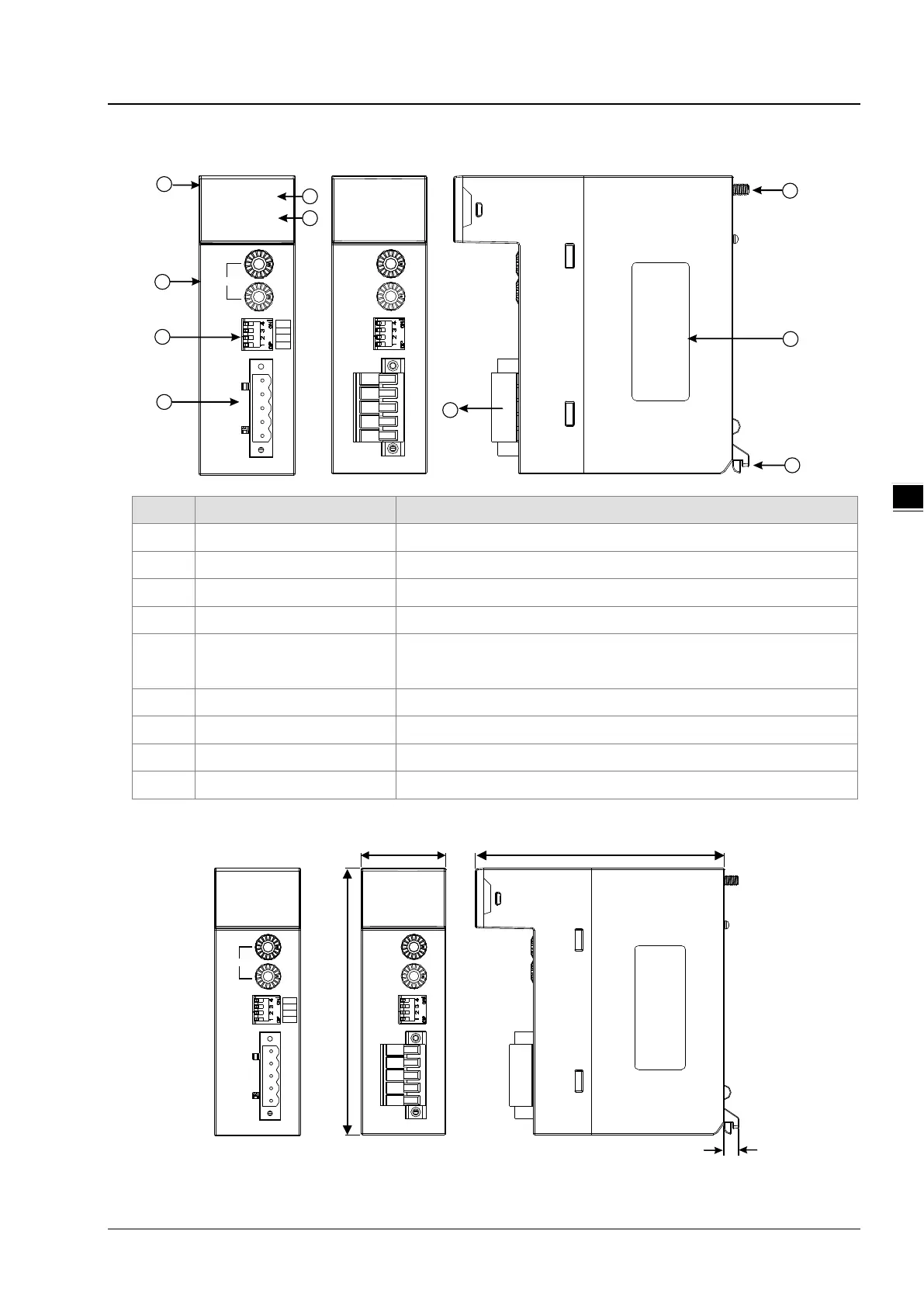

Dimensions:
35
110
6
DR 2
RUN
ERROR
x16
x16
N
O
Node Address
DR 1
DR 0
IN 0
GND
CAN-
SHLD
CAN+
10COPM
103
