Delta AH Motion Series User Manual

AH Motion – Hardware Manual
4-46
_4

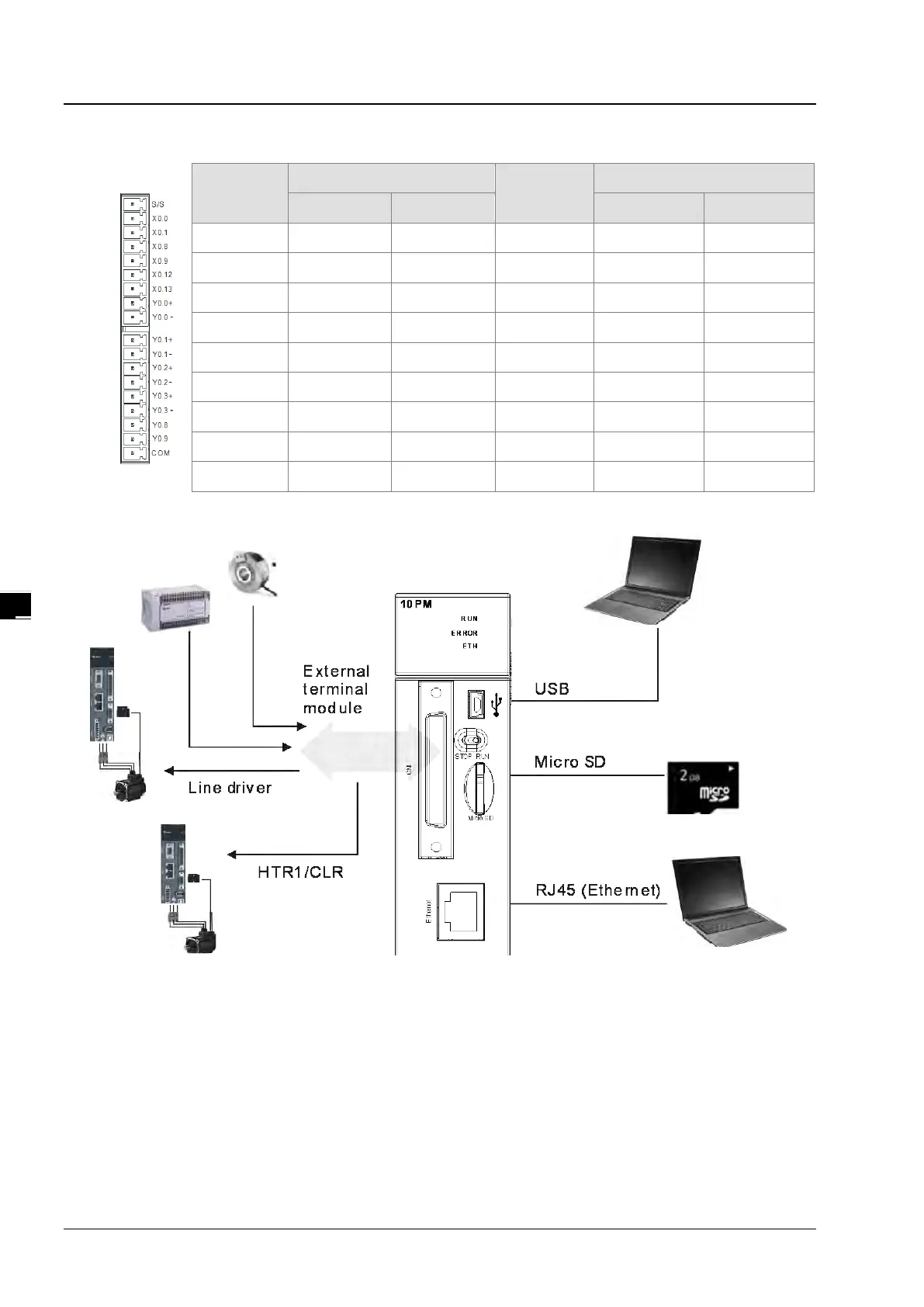

 Terminals on AH05PM-5A
Terminal
Function
Terminal
Function
Pulse Count Pulse Count
S/S S/S S/S Y0.1+ B0+ -
X0.0 PG0 Rst0 Y0.1- B0- -
X0.1 PG1 - Y0.2+ A1+ -
X0.8 MPGA CntA0 Y0.2- A1- -
X0.9 MPGB CntB0 Y0.3+ B1+ -
X0.12 DOG0 - Y0.3- B1- -
X0.13 DOG1 - Y0.8 CLR0 -
Y0.0+ A0+ - Y0.9 CLR1 -
Y0.0- A0- - COM - -
 External devices for AH10PM-5A
