Wiring Input Terminals
The input signal is the direct-current power input. Sinking and sourcing are the current driving capability of a circuit. They
are defined below.

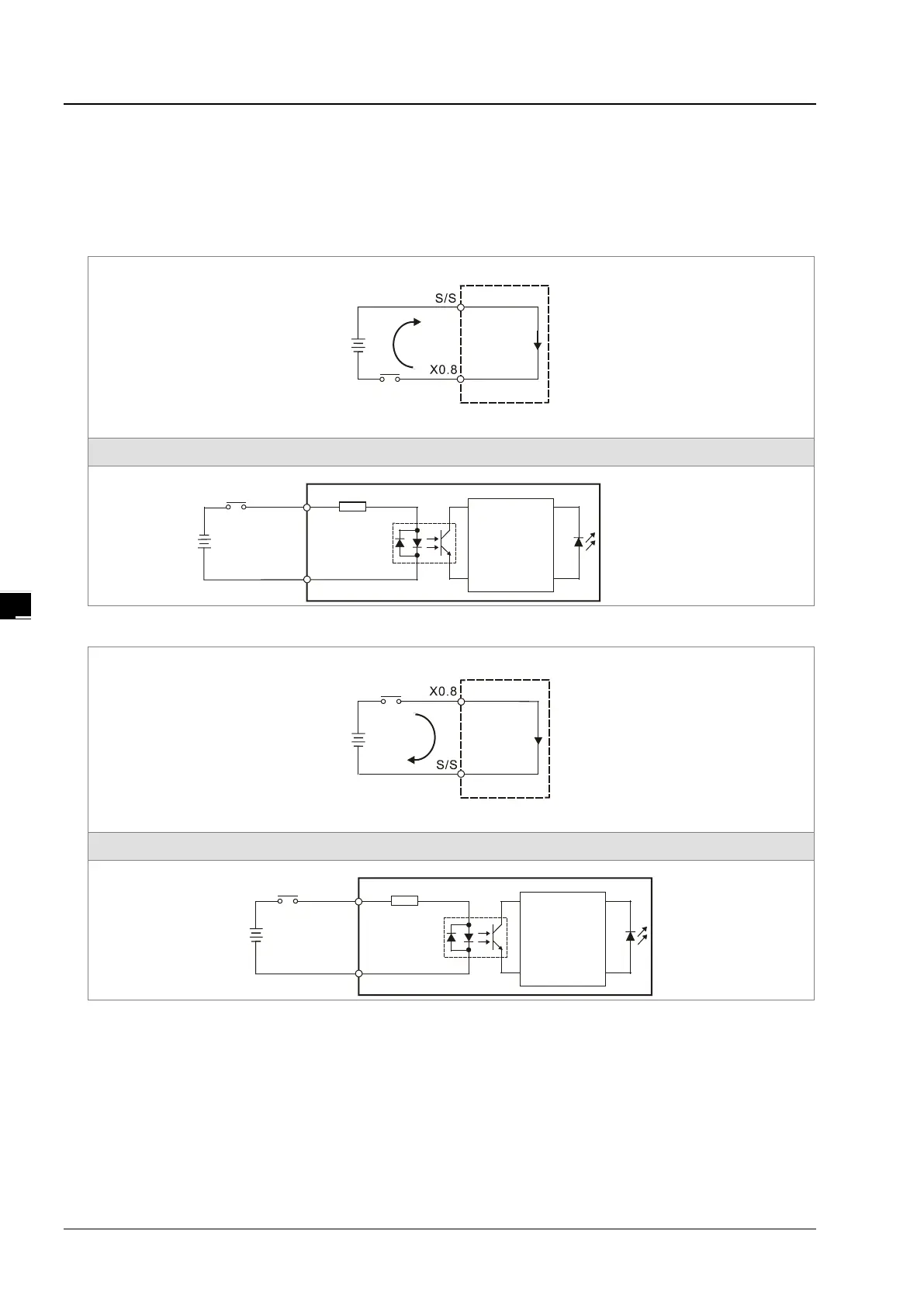

 NPN(Sink)
Direct current
The current flows into the common terminal S/S.
Equivalent circuit of the input circuit
S/S
X0.8
I/O
Internal
circuit
 PNP(Source)
Direct current
The current flows from the common terminal S/S.
Equivalent circuit of the input circuit
S/S
X0.8
I/O
Internal
circuit
