Delta AH Motion Series User Manual

Chapter 4 Installation and Wiring
4-51
4_

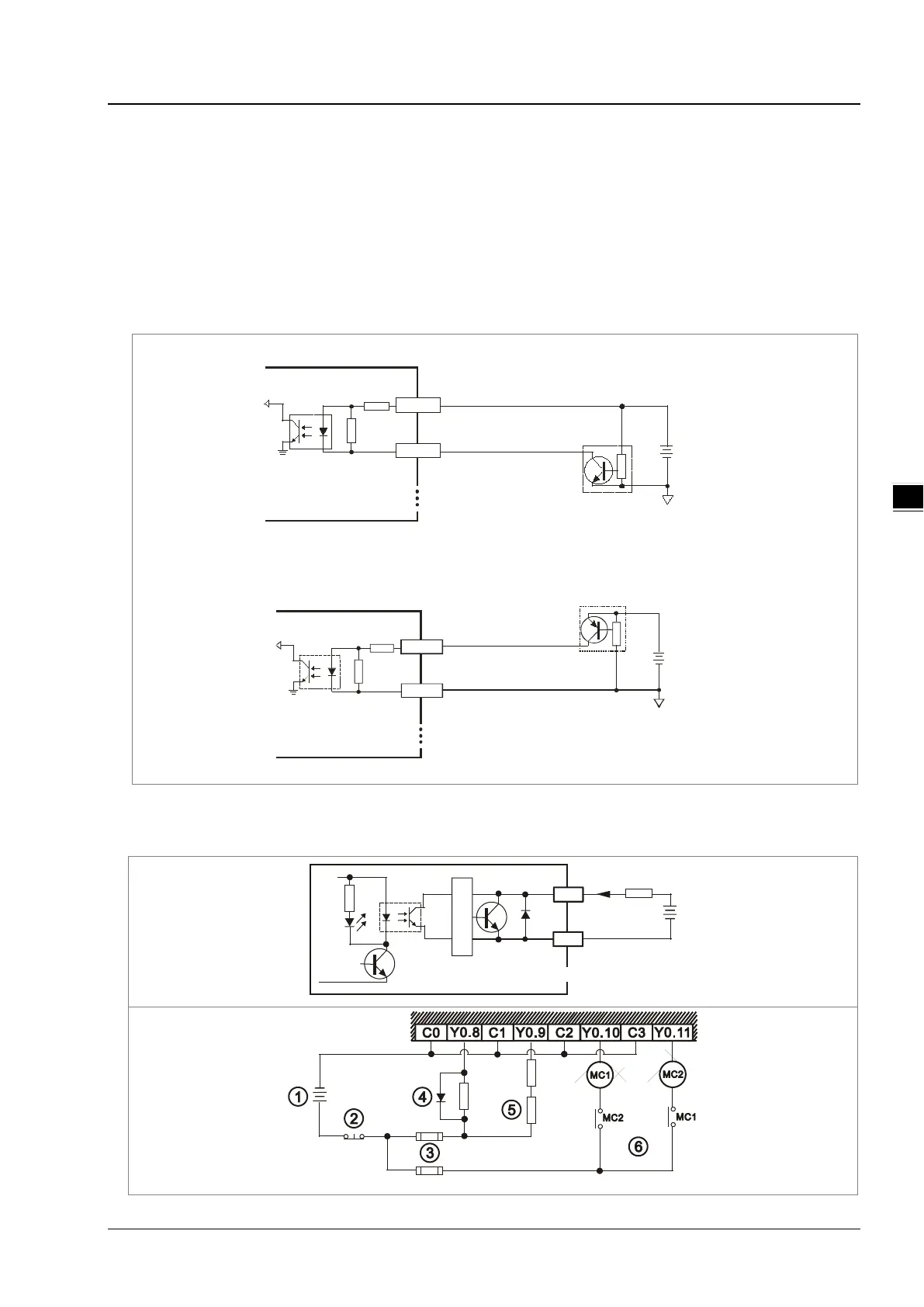

 Wiring the differential input terminals
The direct-current signals ranging in voltage from 5-24 VDC can pass through the high-speed input terminals
X0.0+~X0.3+ and X0.0-~X0.3- on AH10PM-5A, and X0.0+~X0.3+, X0.0-~X0.3-, X0.8+~X0.9+, and X0.8-~X0.9- on
AH15PM-5A. (Only 24 VDC signals can pass through the other input terminals on AH10PM-5A and AH15PM-5A.) The
frequency of input signals can be up to 200 kHz.
If the frequency of input signals is less than 50 kHz and there is not much noise, these high-speed input terminals can
be connected to the direct-current power supply whose voltage is in the range of 5 V to 24 V. The wiring diagrams for
AH10PM-5A are shown below.
NPN(Sink):
NPN
SENSOR
+
5~24V
X0.0+
X0.0-
PNP(Source):
+
5~24V
PNP
SENSOR
X0.0+
X0.0-
Wiring the Output Terminals
1. Transistor output circuit
Transistor output
Load
Trigger circuit
Y0.8
LED
C0
< 0.5A
