Delta AH Motion Series User Manual

Chapter 4 Installation and Wiring
4-63
4_

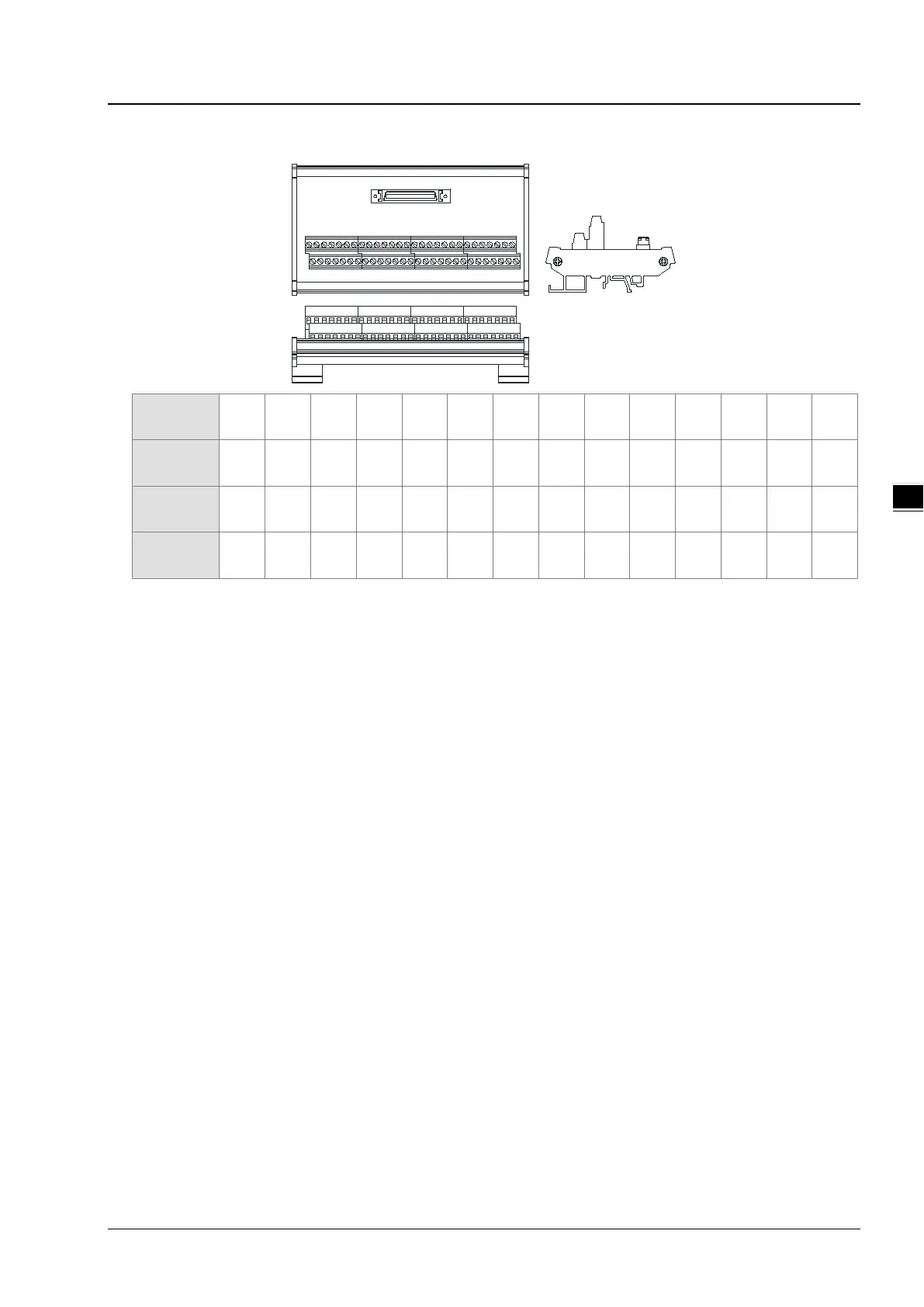

5. External terminal module for AH15PM-5A: UB-10-IO34C or DVPAETB-IO34C
1
st
from the
upper left
Y0.11 Y0.9 COM Y0.7- Y0.6- Y0.5- Y0.4- Y0.3- Y0.2- Y0.1- Y0.0- X1.5 X1.3 X1.1
15
th
from the
upper left
X0.15 X0.13 X0.11 X0.9- X0.8- X0.7 X0.5 X0.3- X0.2- X0.1- X0.0- 24G 24G FE
1
st
from the
lower left
Y0.10 Y0.8 Y0.7+ Y0.6+ Y0.5+ Y0.4+ Y0.3+ Y0.2+ Y0.1+ Y0.0+ S/S Y1.4 Y1.2 Y1.0
15
th
from the
lower left
X0.14 X0.12 X0.10 X0.9+ X0.8+ X0.6 X0.4 X0.3+ X0.2+ X0.1+ X0.0+ N/C 24V 24V
