Chapter 3 Product Specifications
3-11

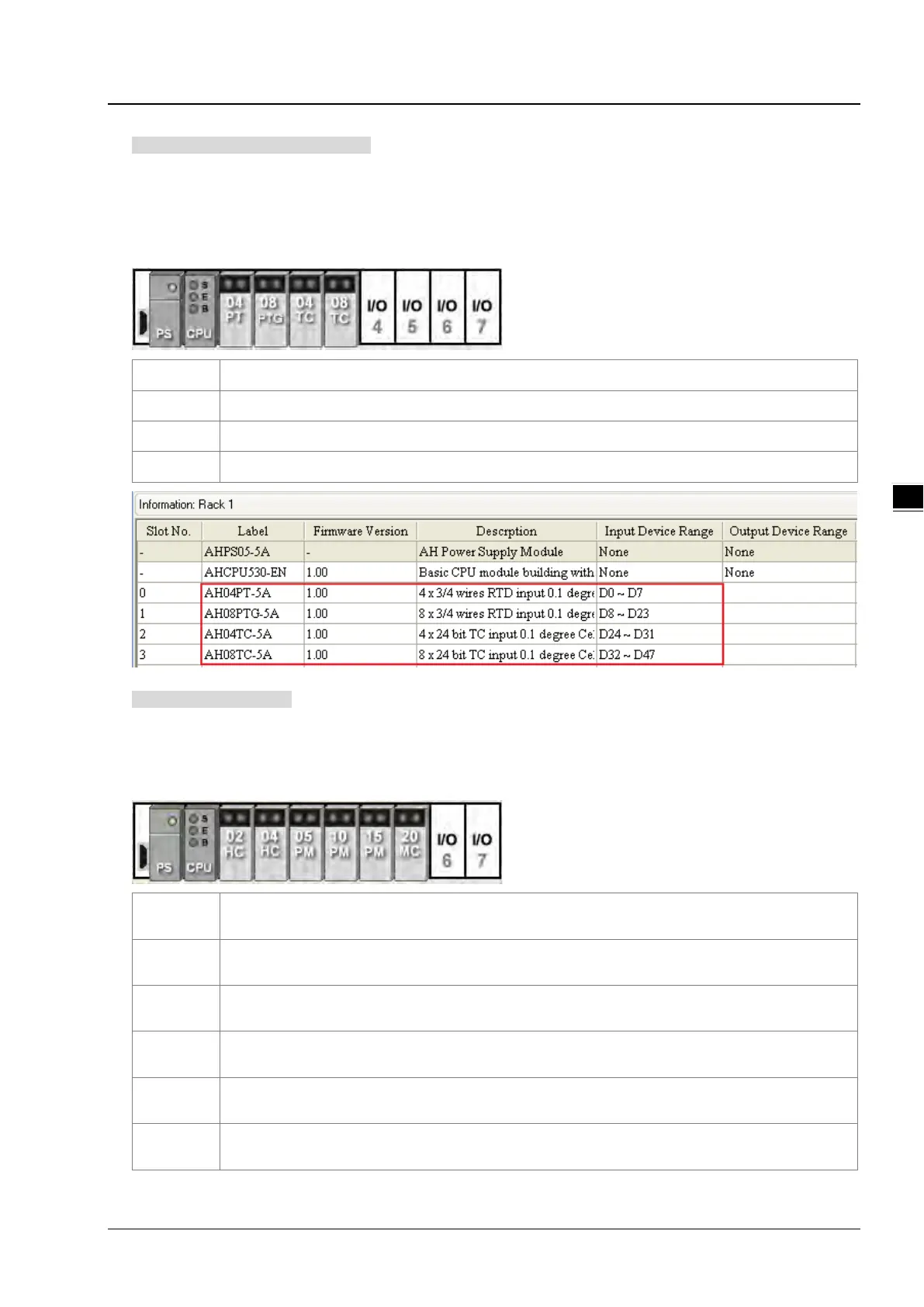

Temperature Measurement Modules
Input data registers are automatically assigned to a temperature measurement module through HWCONFIG in
ISPSoft according to the number of registers which is defined for the temperature measurement module. A channel
occupies two words.
Note: The below diagram only shows the list of the modules and is not an actual configuration.
4 input channels. The input device range occupies 8 data registers.
8 input channels. The input device range occupies 16 data registers
4 input channels. The input device range occupies 8 data registers.
8 input channels. The input device range occupies 16 data registers
Motion Control Modules
Input/Output data registers are automatically assigned to a motion control module through HWCONFIG in ISPSoft
according to the number of registers which is defined for the motion control module.
Note: The below diagram only shows the list of the modules and is not an actual configuration.
02HC
2 input channels. The input device range occupies 14 data registers, and the output device range
occupies 2 data registers.
04HC
4 input channels. The input device range occupies 28 data registers, and the output device range
occupies 4 data registers.
05PM
No input registers and no output registers are assigned to it. Please refer to AH500 Motion Control
Module Manual for more information about the parameter setting.
10PM
No input registers and no output registers are assigned to it. Please refer to AH500 Motion Control
Module Manual for more information about the parameter setting.
15PM
No input registers and no output registers are assigned to it. Please refer to AH500 Motion Control
Module Manual for more information about the parameter setting.
20MC
No input registers and no output registers are assigned to it. Please refer to AH500 Motion Control
Module Manual for more information about the parameter setting.
