AH Motion – Hardware Manual
3-12
Network Modules

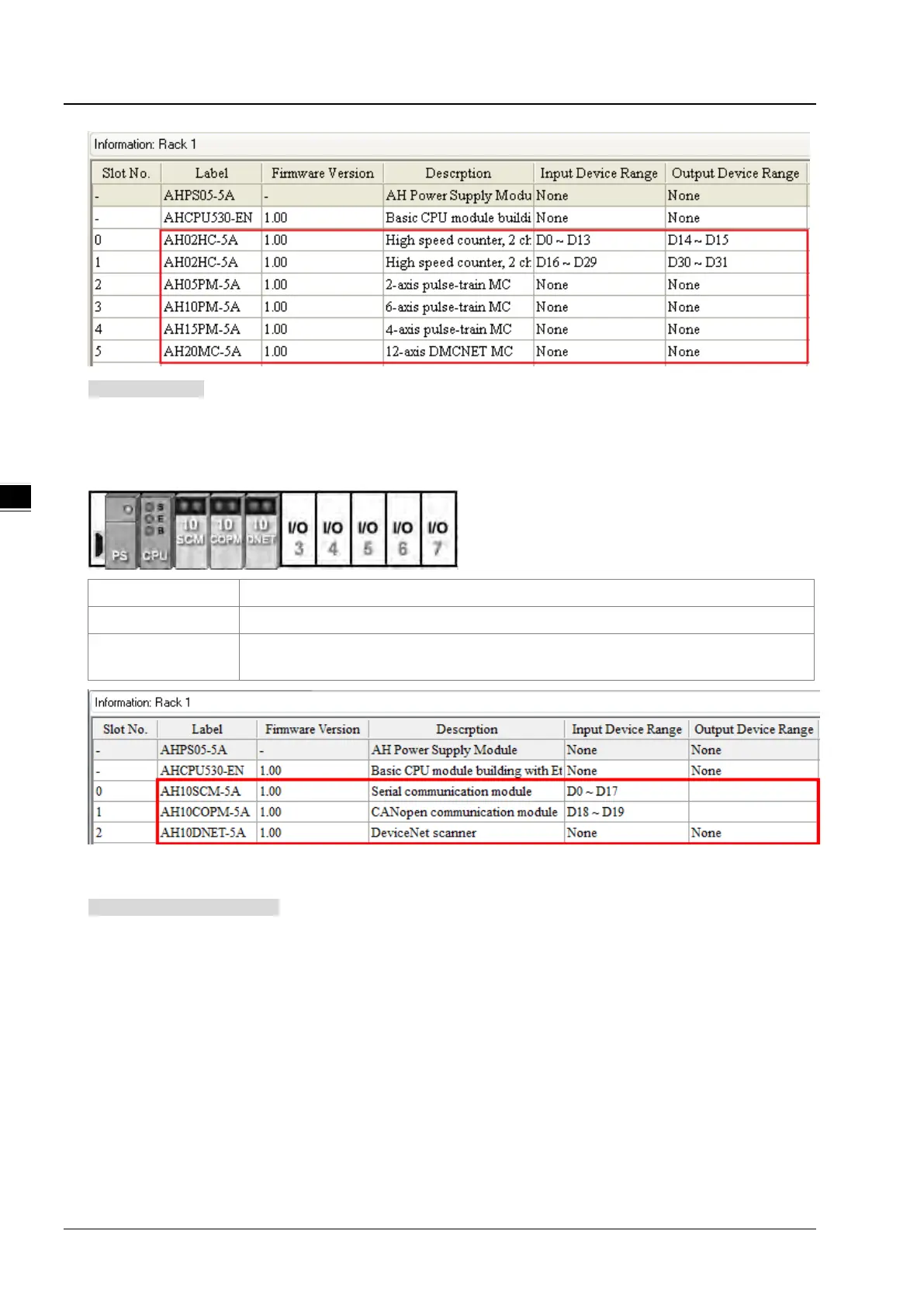

Input/Output data registers are automatically assigned to a network module through HWCONFIG in ISPSoft according
to the number of registers which is defined for the network module.
Note: The below diagram only shows the list of the modules and is not an actual configuration.
The
occupies 18 data registers.
The input device range occupies 2 data registers.
10DNET
No input registers and no output registers are assigned to it.
User-defined Addresses
Digital Input/Output Modules
You can assign input devices and output devices to a digital input/output module through HWCONFIG in ISPSoft. The
input devices should be within the range between X0.0 and X511.15, and the output devices should be within the
range between Y0.0 and Y511.15. Take AH16AP11R-5A for example. The default input devices are X0.0~X0.15, and
the default output devices are Y0.0~Y0.15. You can change the input device range from X0.0~X0.15 to X10.0~X10.15,
and change the output device range from Y0.0~Y0.15 to Y20.0~Y20.15.
The default input/output device range: X0.0~X0.15, and Y0.0~Y0.15
