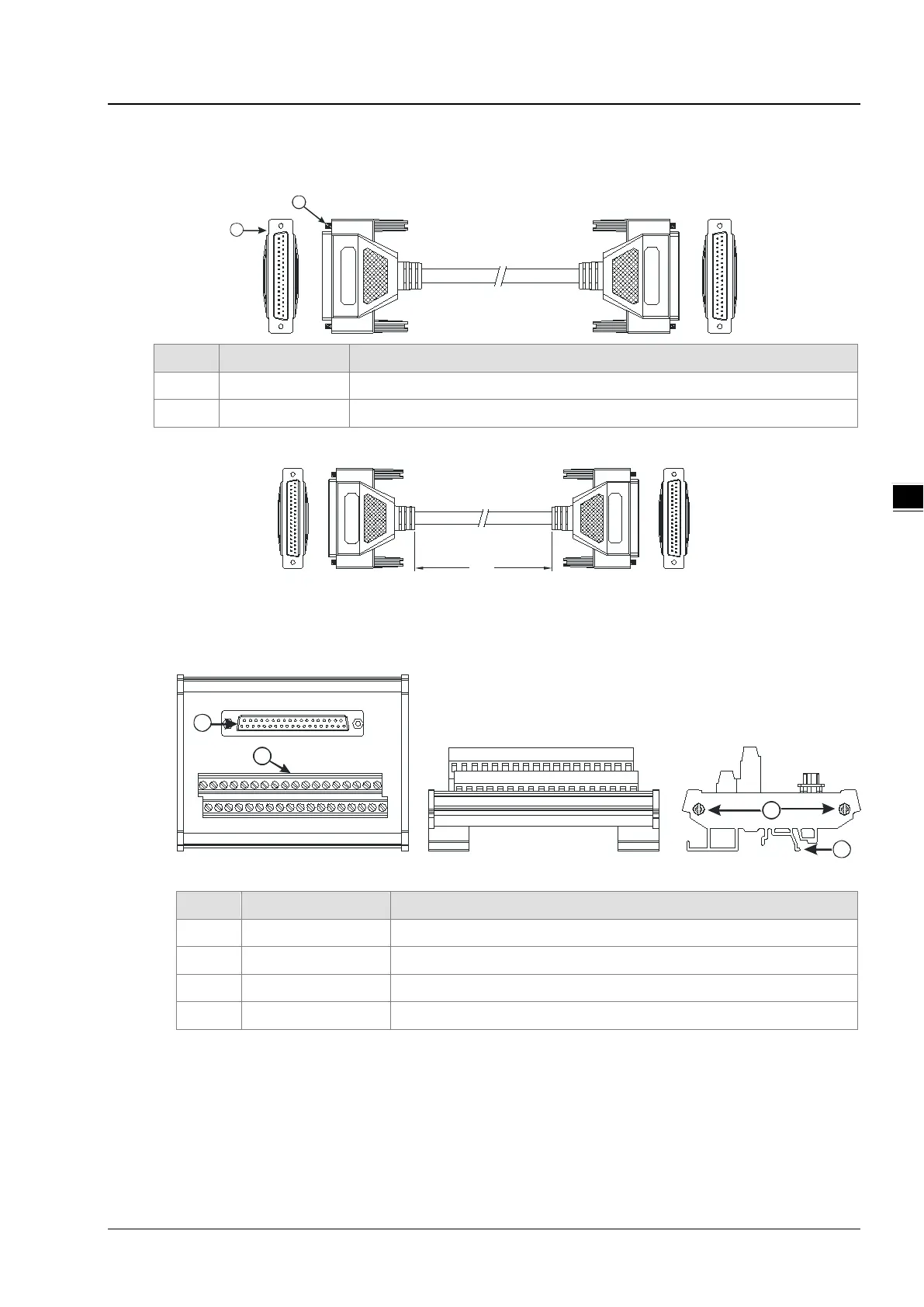

 DB37 connector, I/O extension cable, and external terminal module
- I/O extension cable: UC-ET010-33B
(DVPACAB7C10)
2
1
Number
Name
Description
1
DB37 connector
Connecting a digital input/output module and an external terminal module.
2
Set screw
Fixing the connector
Dimensions:
100
Dimensions are in cm
- External terminal module for AH32AM10N-5B:
 UB-10-ID32B(DVPAETB-ID32B)
1
3
4
2
Number
Name
Description
1 DB37 connector Connecting the external terminal modul
e and a digital input/output module
2
Terminals
Input/Output terminals for wiring
3
Clip
Hanging the external terminal module on a DIN rail
4 Set screw Fixing the base
