AH Motion – Hardware Manual
3-62
_3

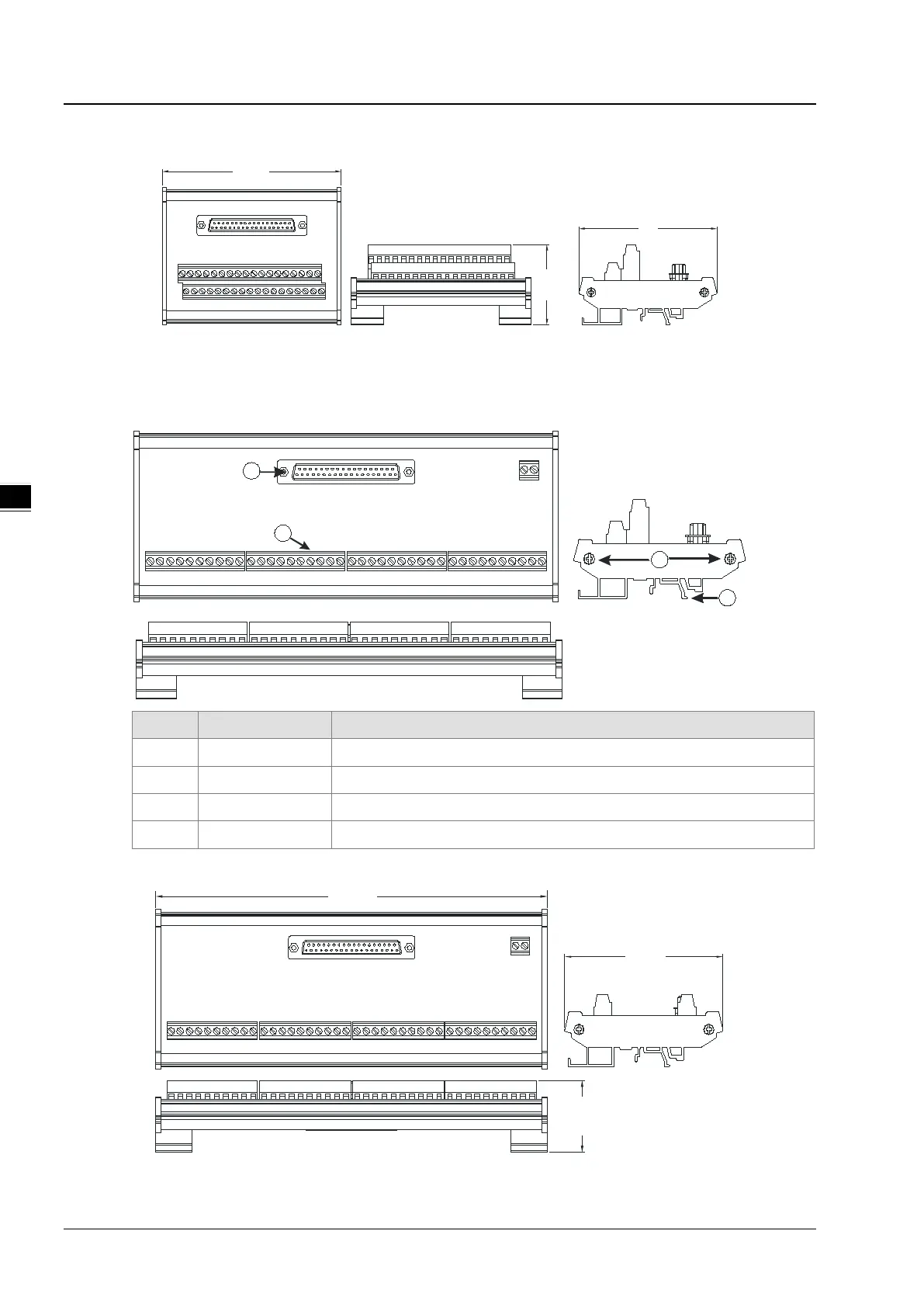

Dimensions:
113
87
50.8
Dimensions are in mm.
- External terminal modules for AH32AN02T-5B:
UB-10-OR32A(DVPAETB-OR32A)
1
3
4
2
Number
Name
Description
1
DB37 connector
Connecting the external terminal module and a digital input/output module
2
Terminals
Input/Output terminals for wiring
3
Clip
Hanging the external terminal module on a DIN rail
4
Set screw
Fixing the base
Dimensions:
215
87
39.4
Dimensions are in mm.
