Delta AH Motion Series

Chapter 3 Product Specifications
3-63
3_
 UB-10-OT32B(DVPAETB-OT32B)
1
3
4
2

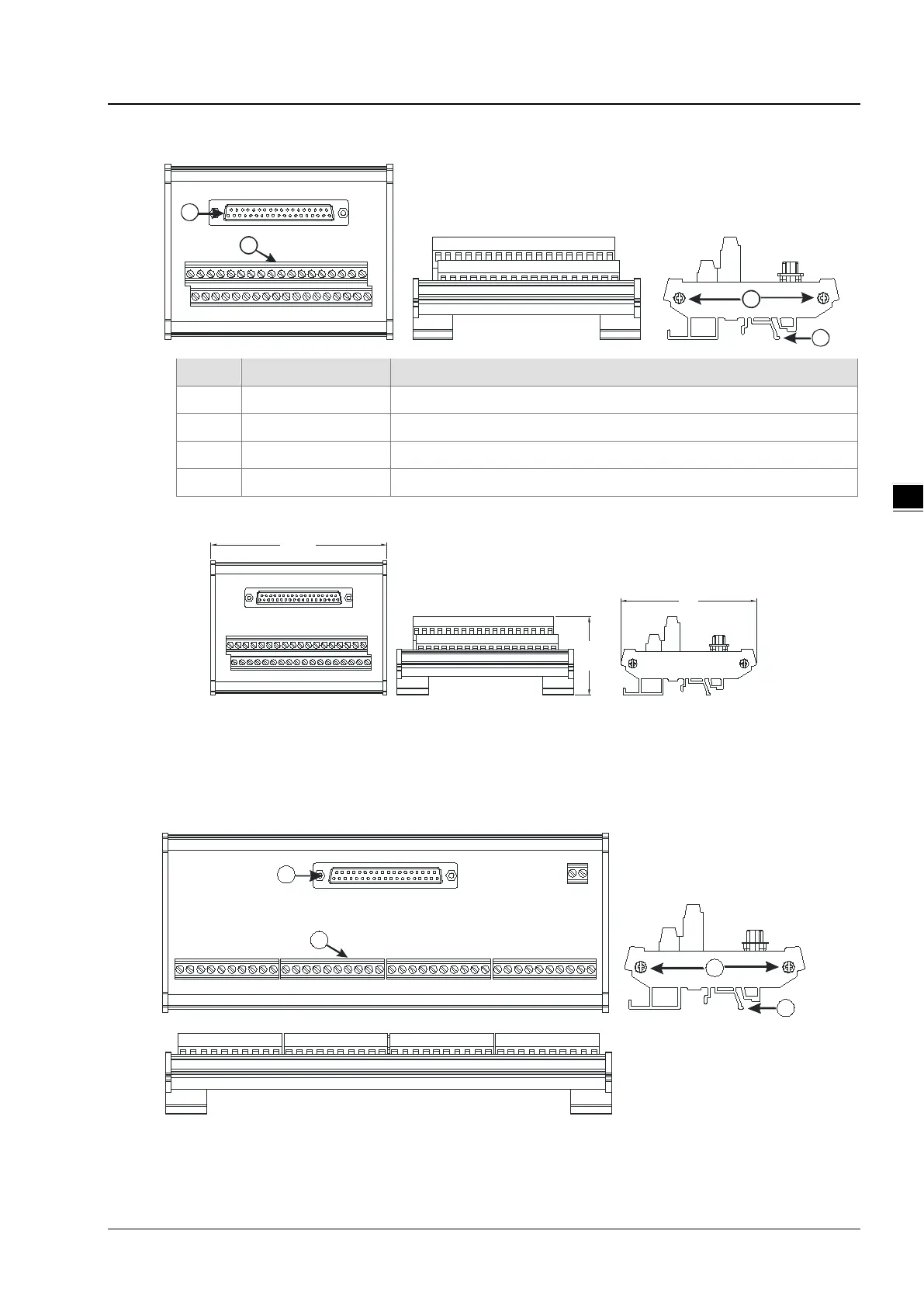

Number Name Description
1
DB37 connector
Connecting the external terminal module and a digital input/output module
2
Terminals
Input/Output terminals for wiring
3 Clip Hanging the external terminal module on a DIN rail
4
Set screw
Fixing the base
Dimensions:
113
87
50.8
Dimensions are in mm.
- External terminal modules for AH32AN02P-5B
 UB-10-OR32B(DVPAETB-OR32B)
1
3
4
2
