Delta AH Motion Series

AH Motion – Hardware Manual
3-64
_3
Number
Name
Description
1 DB37 connector Connecting the external terminal modul
e and a digital input/output module
2
Terminals
Input/Output terminals for wiring
3
Clip
Hanging the external terminal module on a DIN rail
4 Set screw Fixing the base

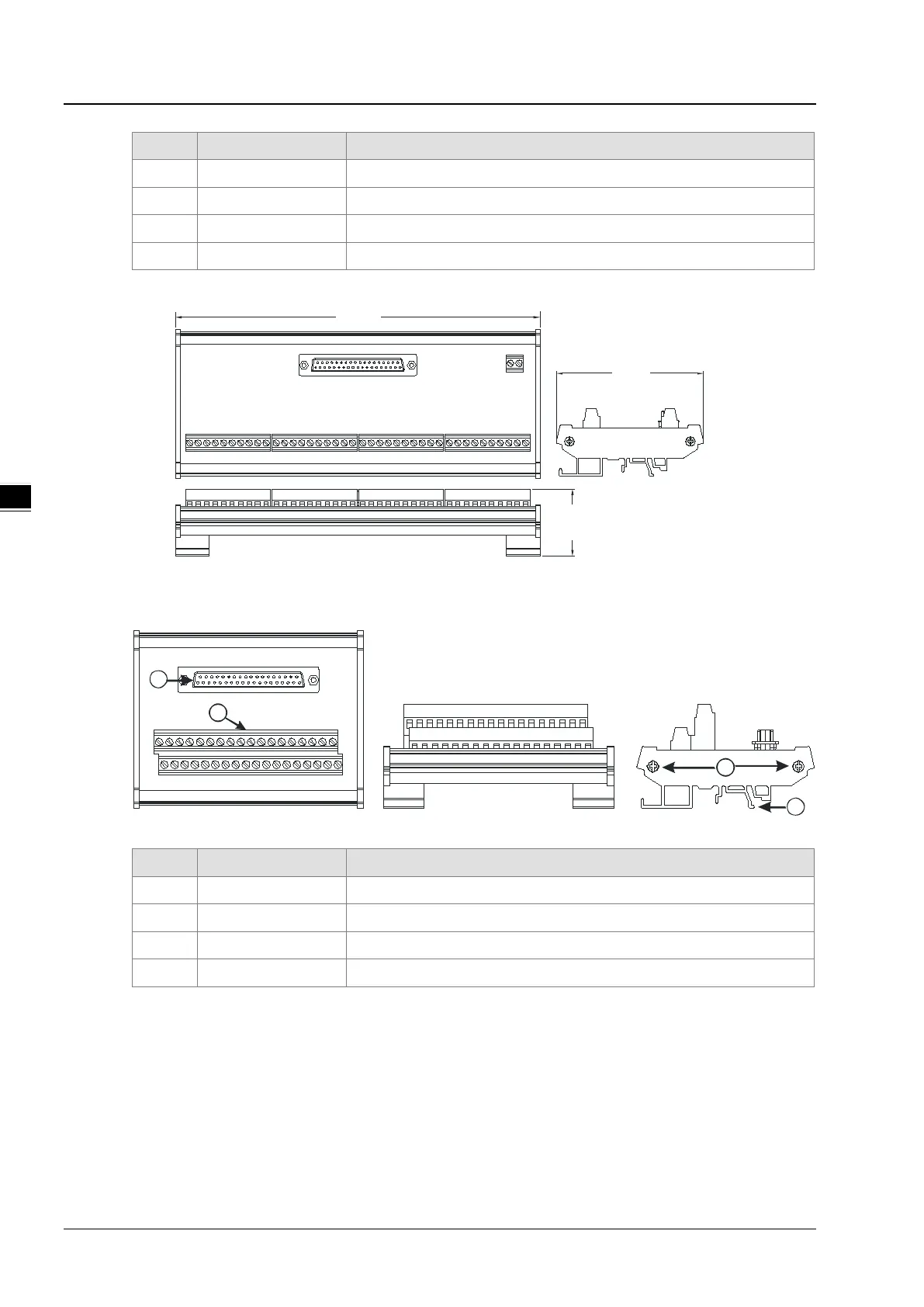

Dimensions:
215
87
39.4
Dimensions are in mm.
 UB-10-OT32B(DVPAETB-OT32B)
1
3
4
2
Number
Name
Description
1
DB37 connector
Connecting the external terminal module and a digital input/output module
2
Terminals
Input/Output terminals for wiring
3 Clip Hanging the external terminal module on a DIN rail
4
Set screw
Fixing the base
