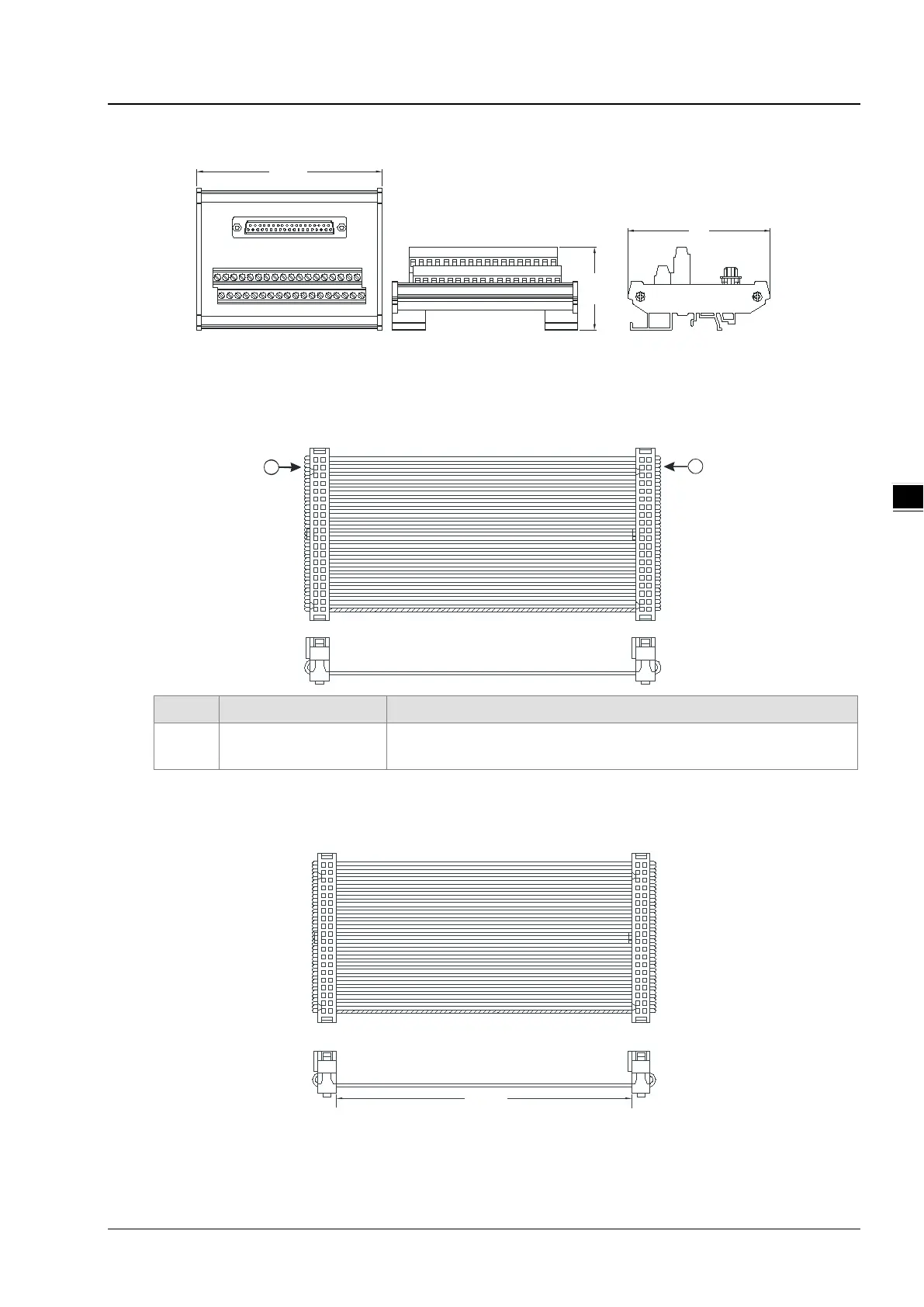

Dimensions:
113
87
50.8
Dimensions are in mm.
 MIL connector, I/O extension cable, and external terminal module
- I/O extension cable: UC-ET010-24A( DVPACAB7A10)
1
1
1 2
1 2
39 4039 40
Number
Name
Description
1 40-pin IDC connector
Connecting a digital input/output module and the external terminal module
UB-10-ID32A(DVPAETB-ID32A).
Dimensions:
100
1 2
1 2
39 4039 40
Dimensions are in cm.
- External terminal module for AH32AM10N-5C/AH64AM10N-5C: UB-10-ID32A( DVPAETB-ID32A)
