AH Motion – Hardware Manual
3-66
_3
3
4
2
1

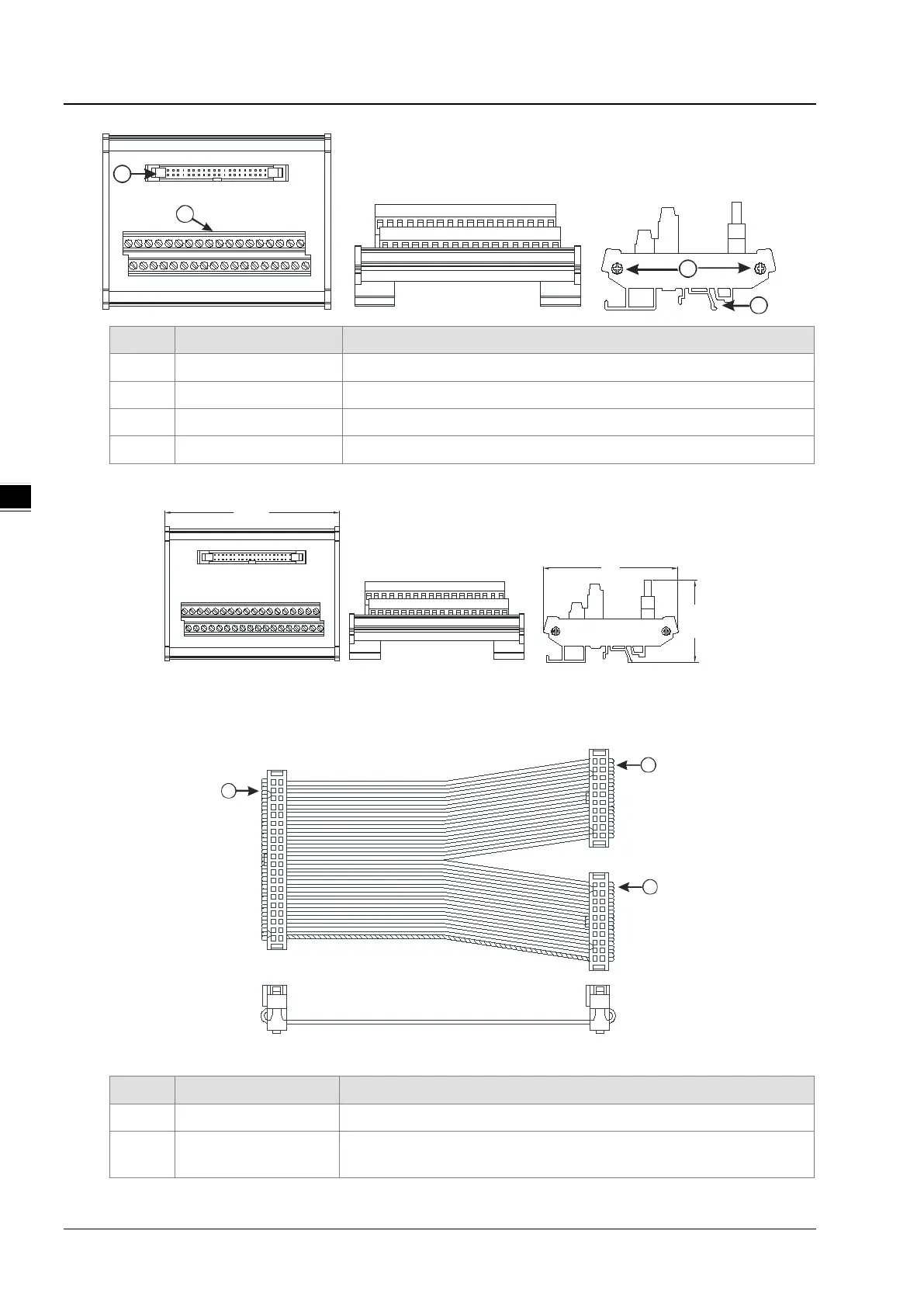

Number
Name
Description
1
40-pin MIL connector
Connecting the external terminal module and a digital input/output module
2
Terminals
Input/Output terminals for wiring
3
Clip 
Hanging the external terminal module on a DIN rail
4
Set screw
Fixing the base
Dimensions:
113
87
53.6
Dimensions are in mm.
I/O extension cable: UC-ET010-24C (DVPACAB7B10)
2
1
2
1 2
1 2
1 2
19 20
19 20
39 40
CN1
CN2
CN3
Number
Name
Description
1 40-pin IDC connector Connecting a digital input/output module and an external terminal module
2 20-pin IDC connector
Connecting a digital input/output module and the external terminal module
DVPAETB-OR16A or DVPAETB-OR16B
