Chapter 2 Network Installation
2-3
2_
 Star Topology
2.2.2 Dual Port Device

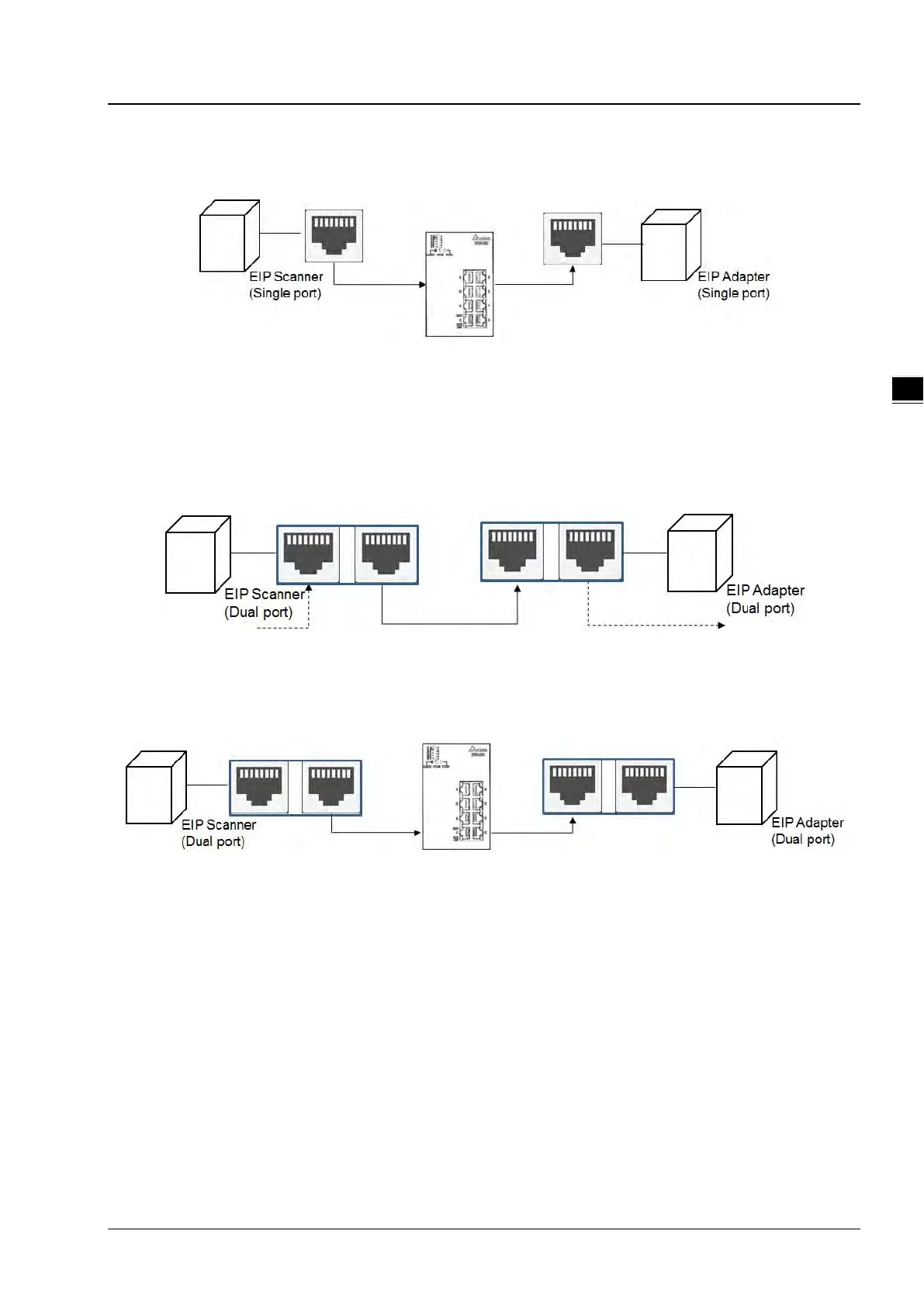

A dual port device can build up a linear, star and ring topology. A DLR function is required to create a ring
topology. Refer to section 9.2 for DLR supported series.

Linear Topology
 Star Topology
 Ring Topology
A DLR function is required to create a ring topology. Refer to section 9.2 for DLR supported series.
