EtherNet/IP Operation Manual

7-6

7.4 Connect to a Delta Adapter

This section will provide an overview of how to connect to a Delta EtherNet/IP Adapter via Rockwell’s Software Studio

5000.

7.4.1 Import an EDS file

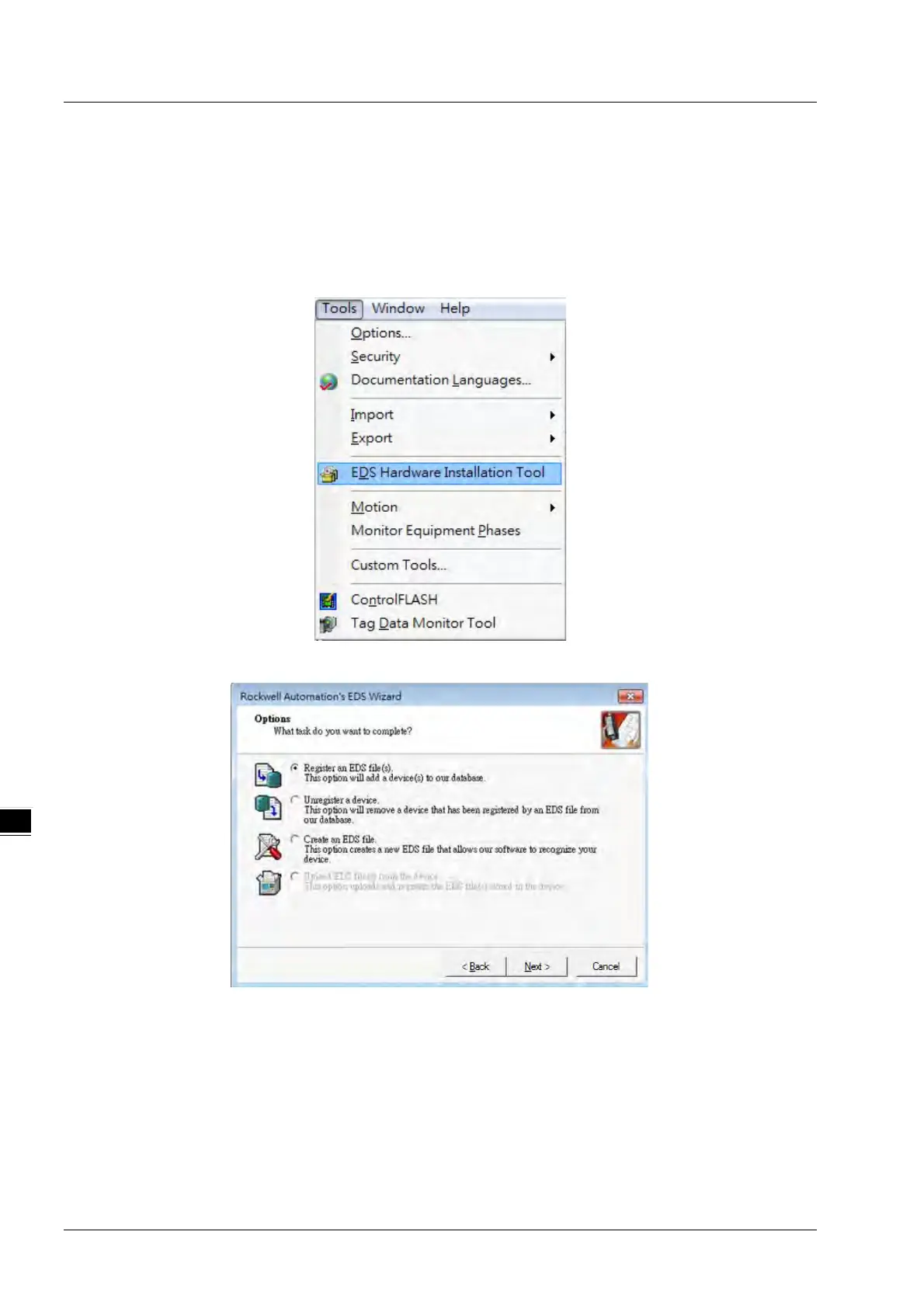

 Go to Tools > EDS Hardware Installation Tool.



Select “Register an EDS file(s)”.

Default Chapter3
