Chapter 7 Studio 5000 Software Operation

7-5

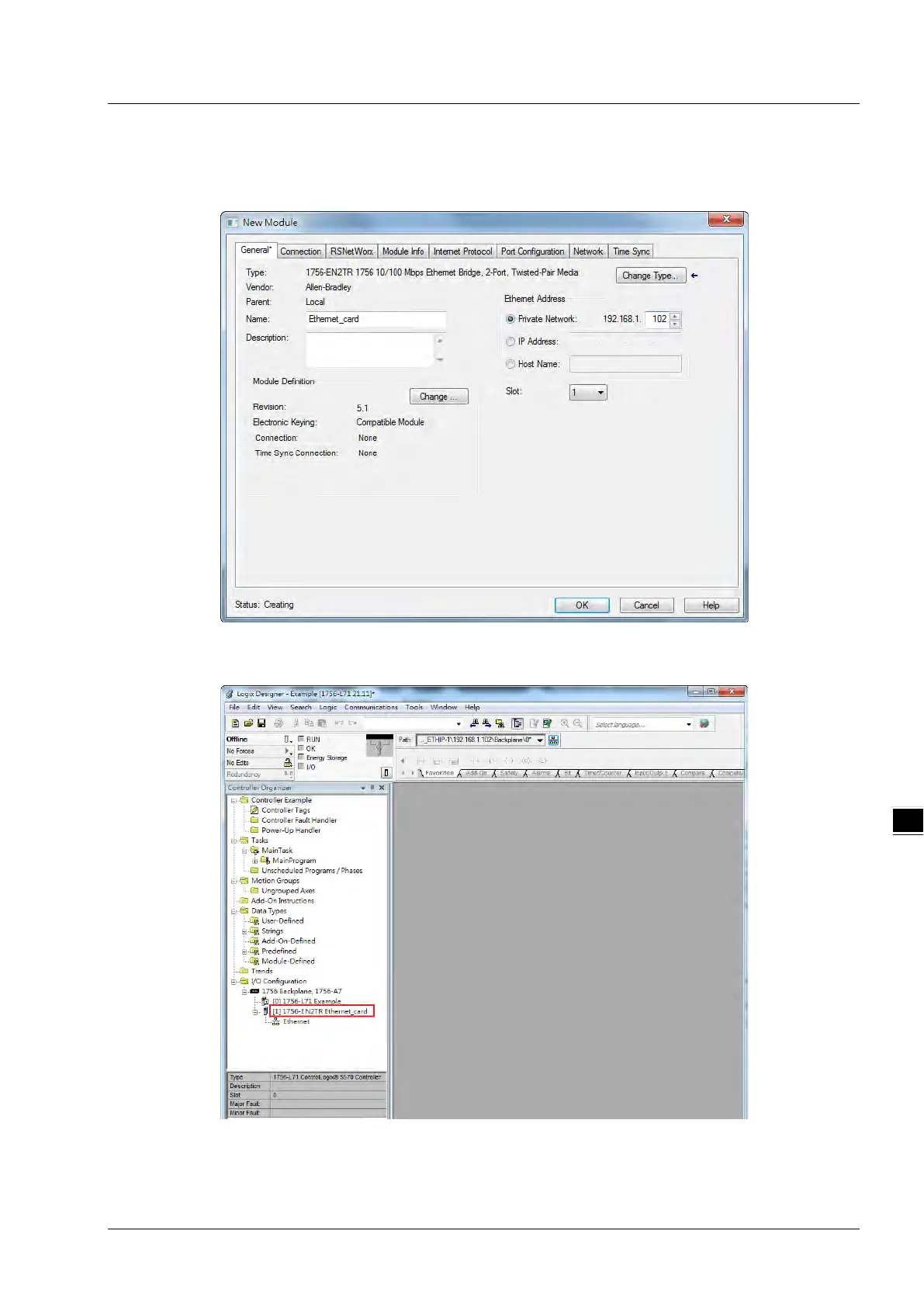

 Type the Name, IP address and other required information. After that click “OK” to complete the creation of an

EtherNet/IP module.

 You will see the newly created module 1756-EN2TR in the node.
