EtherNet/IP Operation Manual
7-12

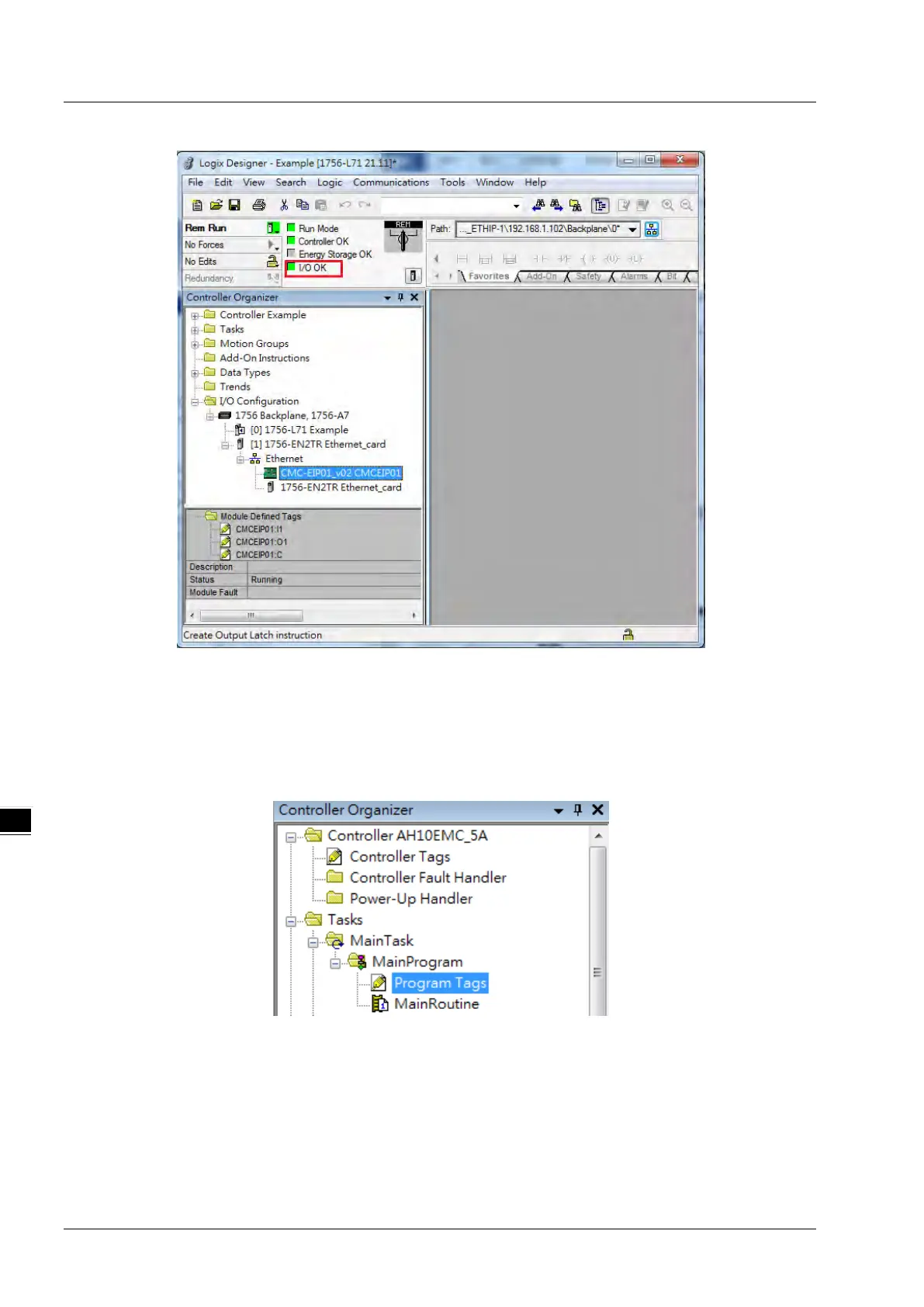

After the connection is successfully established, the I/O status will show OK.
7.6 Data Mapping
Click the “Program TAGs” under the “Tasks” node for data mapping setups, including Configure, Input and Output. After
the device is created in the I/O Configuration, the TAG will be added automatically.
Click the “Program TAGs”.
To Next Page
