Delta AHCPU560-EN2 Series User Manual

EtherNet/IP Operation Manual
7-2
_7
This section will provide an overview of how to use EtherNet/IP to connect to a Delta EtherNet/IP Adapter via the 3rd party
software. Here we take Rockwell’s Software Studio 5000 as an example.

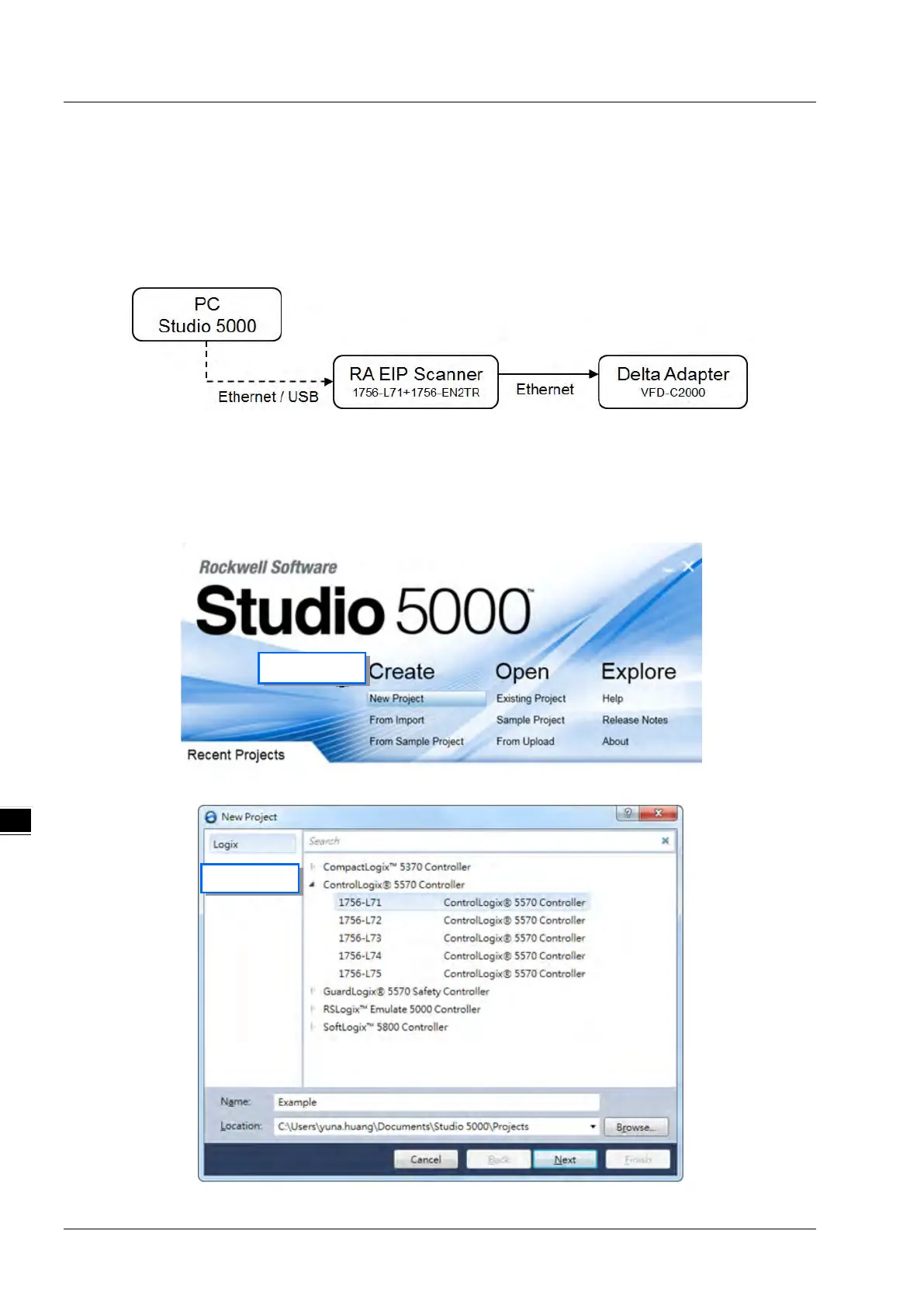

7.1 Architecture
RA EIP Scanner use Ethernet to connect a Delta Adapter; as for the PC, it can connect to the RA Scanner via the
Ethernet/USB.
※ Rockwell Software Studio 5000, ControlLogix, RSLogix are registered trademarks of Rockwell Automation, Inc.
7.2 Create a New Project
 Open the Studio 5000 and click the “New Project” under the “Create” section.

Select a PLC. Take 1756-L71 as an example here.
New Project
Select PLC
