Delta AHCPU560-EN2 Series User Manual

EtherNet/IP Operation Manual
4-14
_4

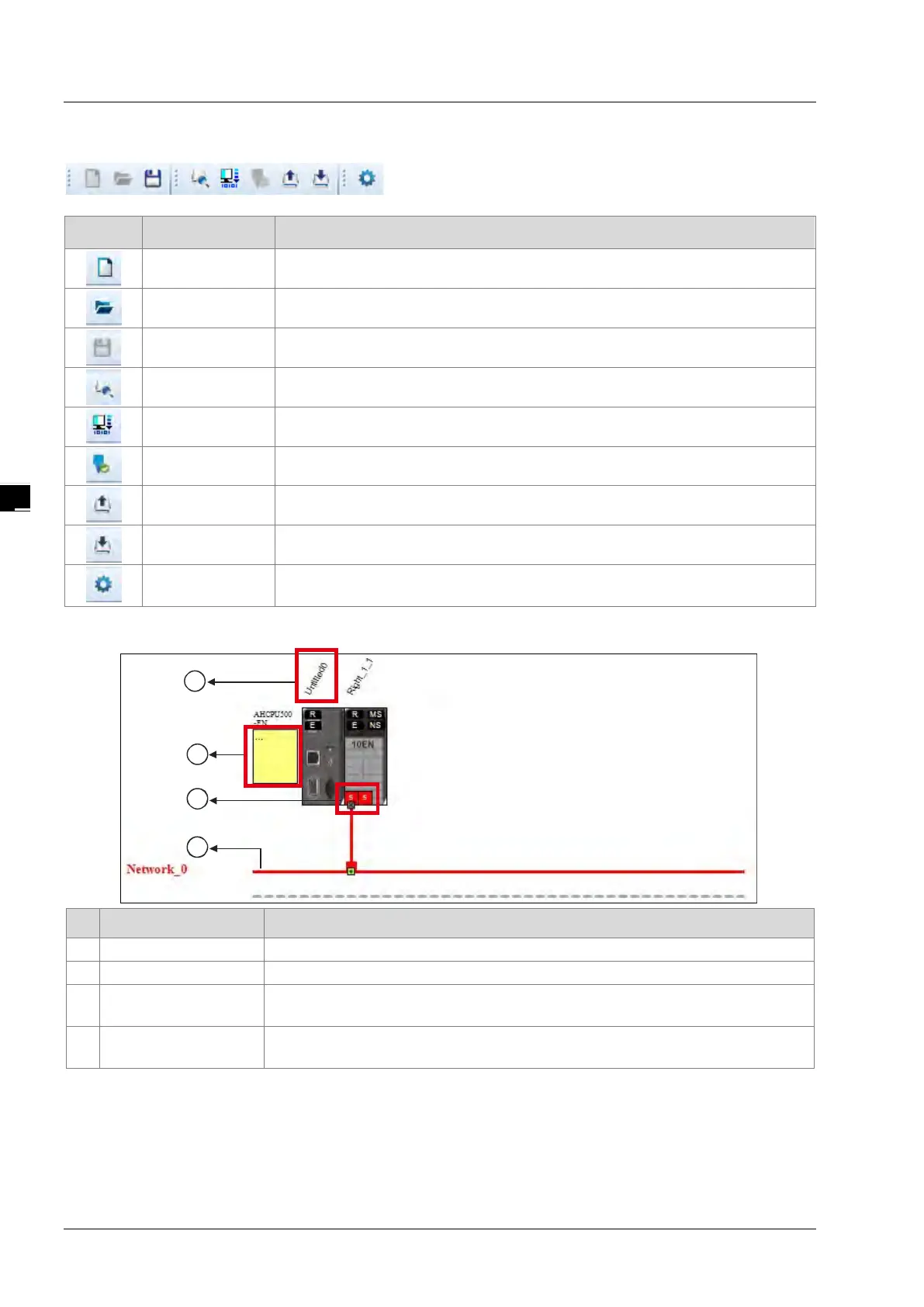

 Toolbar
Icon Name Definition
New Create a new EIP Builder project
Open Open an existing project
Save Save the project
Scan Network Scan the network for device availability
Check Check if the project is planed nicely
On-line Mode Switch to on-line mode
Uploader Upload
Downloader Download
Setup Button
Open the communication setting; set up the path connecting the PC to the EIP
Scanner
 Network View
1
2
3
4
Name Definition
 Station Name Name for the station

Device Name
Name for the device
 Ethernet COM Port
Display the number of devices with Ethernet communication ports.
The last digit of the IP address will be shown on the COM port.
 Network_0
Display connection status; devices on the same line indicate they are in the same
network.
 Configuration Area
Refer to section 4.3.3 for more information.
