Delta AHCPU560-EN2 Series User Manual

EtherNet/IP Operation Manual
4-32
_4

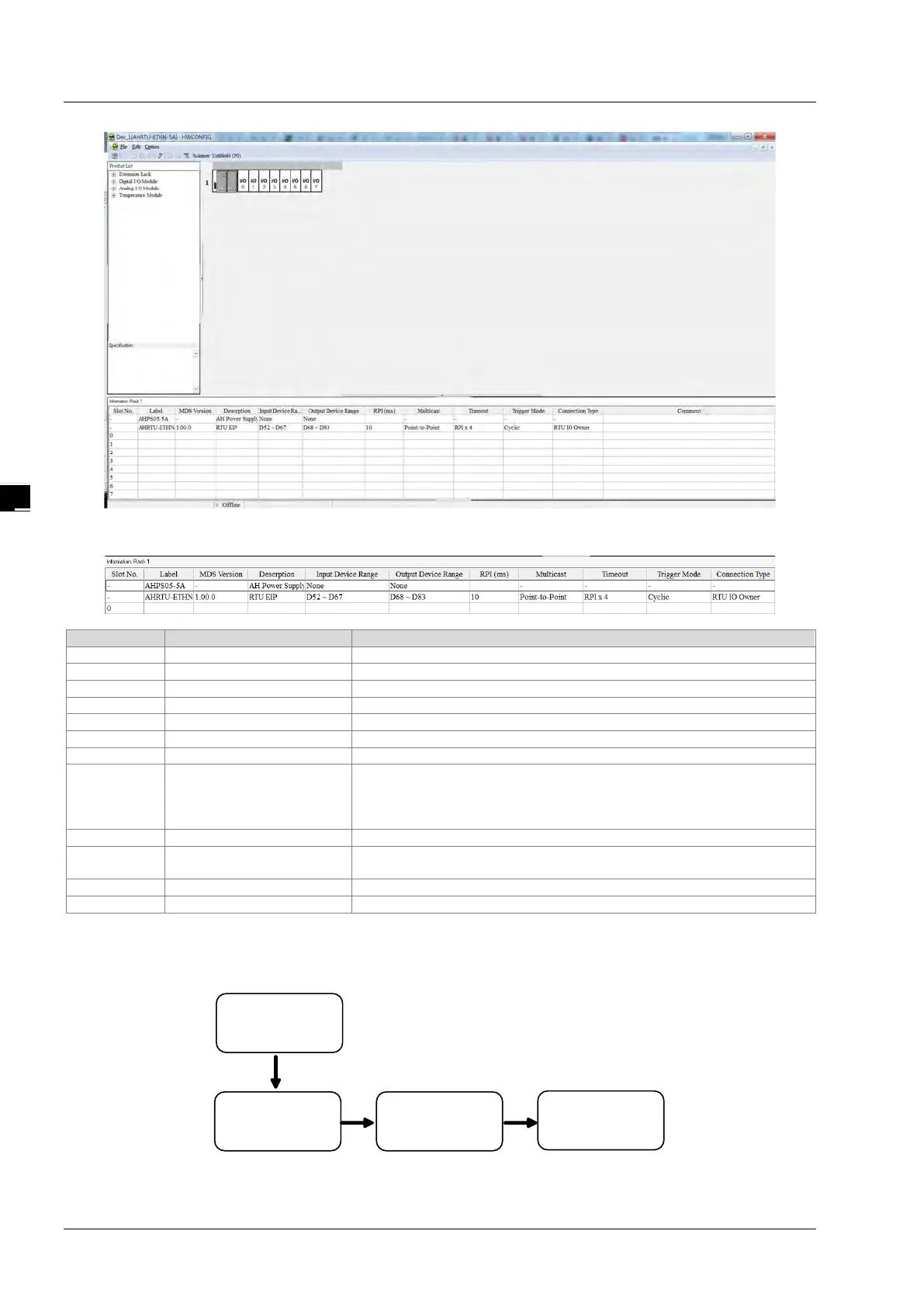

 Descriptions for the EIP Builder:
Name
Description
1
Information: Rack 1
Information of the rack 1
2
Slot number
Slot number of rack 1 (power module and AHRTU module are excluded)
3
Label
Module Name
4
MDS Version
Device firmware version
5
Description
Device description
6
Input Device Range
The input devices assigned to a module are displayed here
7
Output Device Range
The output devices assigned to a module are displayed here
8
Requested Packet Interval
(RPI)
RPI setting value; unit: mm
Only analog I/O modules and special modules need to set the RPI time
to renew data; for other digital I/O modules, data can be renewed
according to the RPI time set for the AHRTU-ETHN-5A.
9
Multicast
Communication mode setup: Multicast or Point-to-Point
10 Timeout
Timeout setup; set up the timeout time according to the RPI or the
multiple of RPI (RPI*X).
11
Trigger mode
Renew data according to the set RPI time
12
Connection type
Owner or Listen only
 Operation Steps:
R TU
HWCONFIG
Download
Set up
parameters
Add
I/O module
