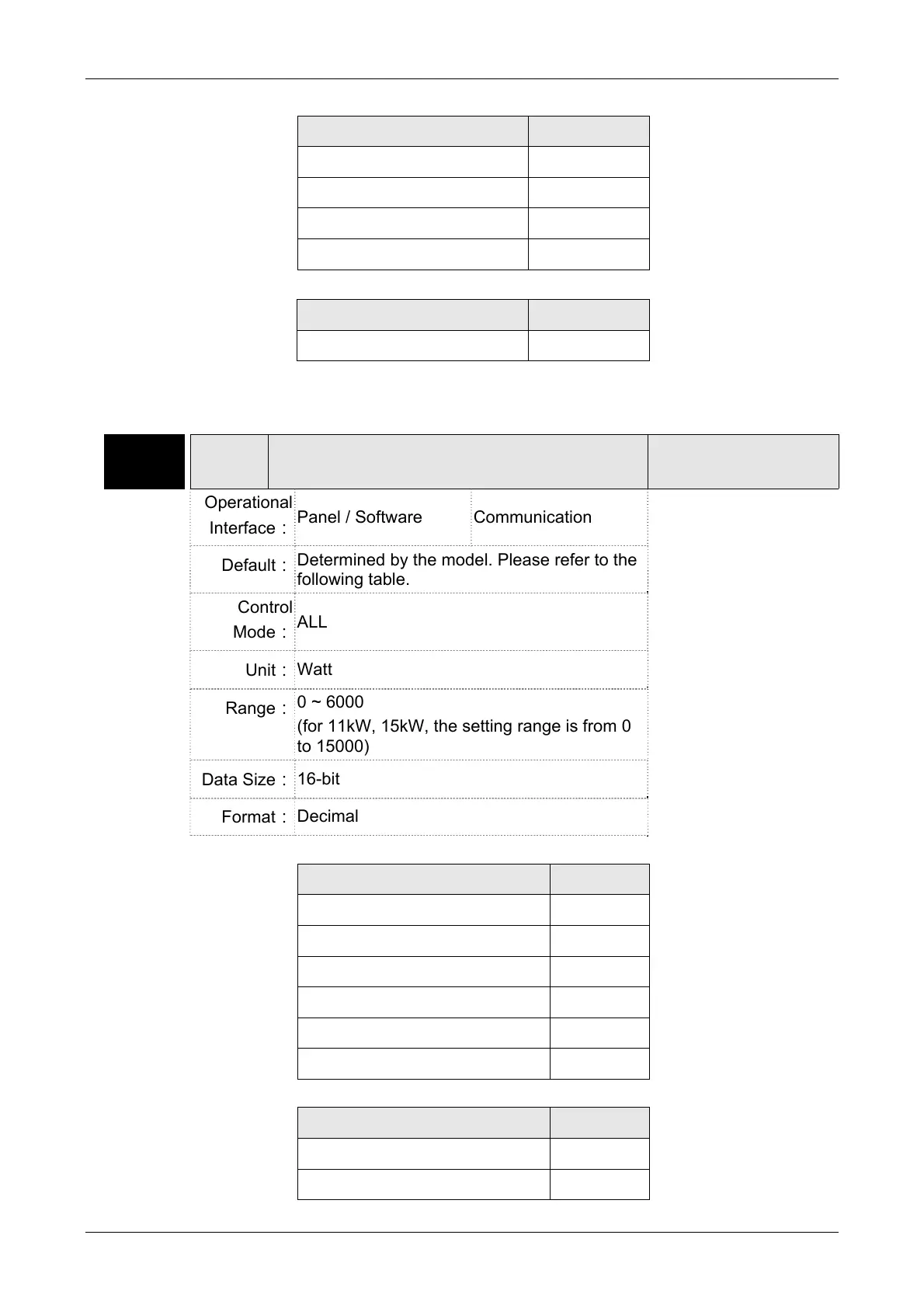

ASDA-A2 Chapter 8 Parameters
Revision February, 2017 8-77
Settings
220V:
Model Default
1.5 kW (included) or below 40
2 kW ~ 4.5 kW (included) 20
5.5 kW 15
7.5 kW 15
400V:
Model Default
750W ~ 7.5kW 80
Please refer to the description of P1-53 for the setting value when
connecting regenerative resistor with different method.
P1-53 RES2 Regenerative Resistor Capacity
Address: 016AH
016BH
Operational
Interface
Panel / Software Communication
Related Section:
2.7
Default
Determined by the model. Please refer to the
following table.
Control
Mode
ALL
Unit
Watt
Range
0 ~ 6000
(for 11kW, 15kW, the setting range is from 0
to 15000)
Data Size
16-bit
Format
Decimal
Settings
220V
Model Default
200W (included) or below 0W
400W 40W
750W ~ 1.5kW 60W
2 kW ~ 4.5 kW (included) 100W
5.5 kW 0W
7.5 kW 0W
400V
Model Default
750W ~ 1.5kW 100W
2 kW ~ 4.5 kW 0W
