Delta ASDA-A2 Series User Manual

ASDA-A2 Chapter 8 Parameters
Revision February, 2017 8-101

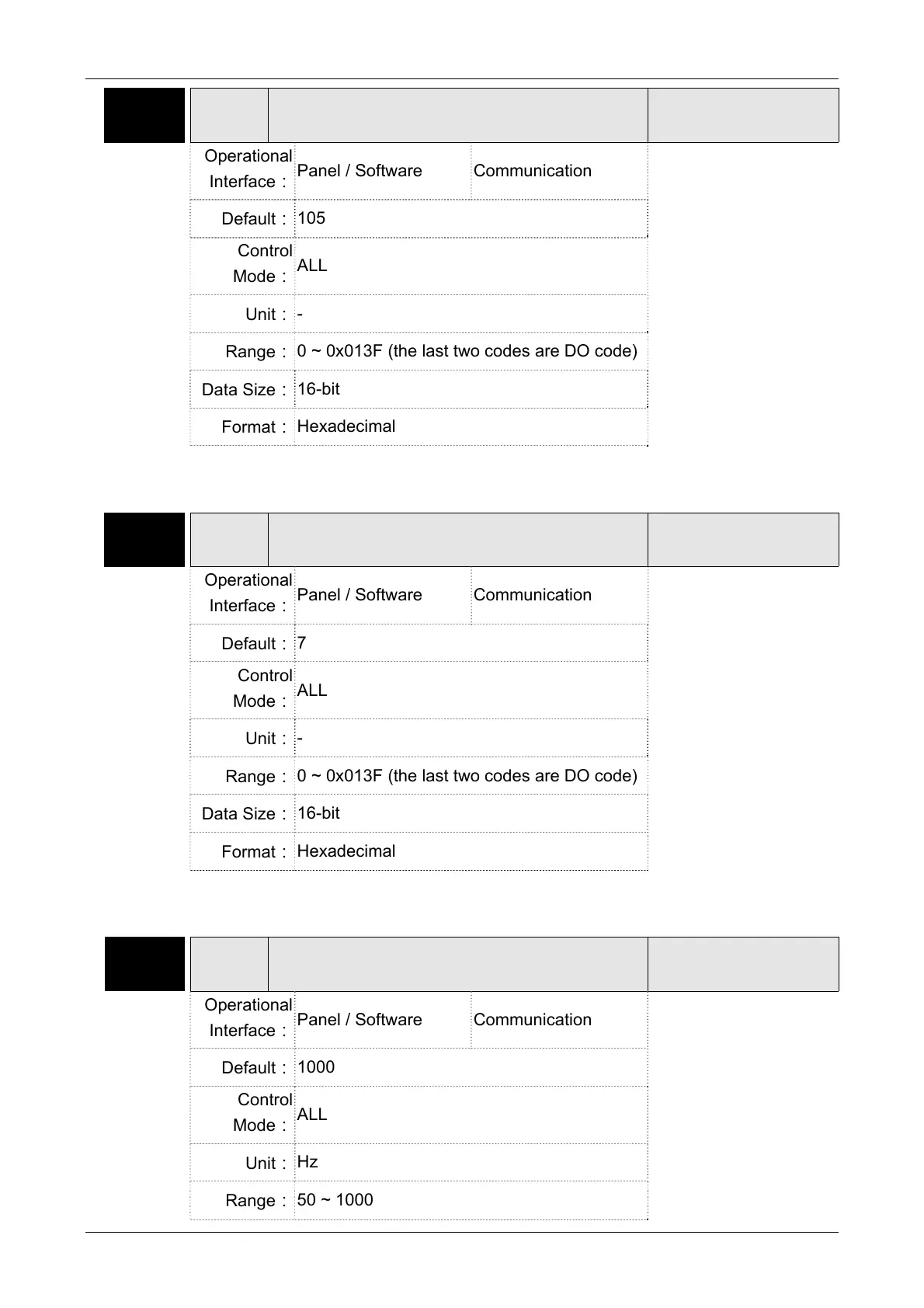

P2-21 DO4 DO4 Functional Planning
Address: 022AH
022BH
Operational
Interface：
Panel / Software Communication
Related Section:
Table 8.2
Default：
105
Control
Mode：
ALL
Unit：
-
Range：
0 ~ 0x013F (the last two codes are DO code)
Data Size：
16-bit
Format：
Hexadecimal
Settings：
Please refer to the description of P2-18
P2-22 DO5 DO5 Functional Planning
Address: 022CH
022DH
Operational
Interface：
Panel / Software Communication
Related Section:
Table 8.2
Default：
7
Control
Mode：
ALL
Unit：
-
Range：
0 ~ 0x013F (the last two codes are DO code)
Data Size：
16-bit
Format：
Hexadecimal
Settings：
Please refer to the description of P2-18
P2-23 NCF1 Resonance Suppression (Notch filter) (1)
Address: 022EH
022FH
Operational
Interface：
Panel / Software Communication
Related Section:
6.3.7
Default：
1000
Control
Mode：
ALL
Unit：
Hz
Range：
50 ~ 1000

Delta ASDA-A2 Series Specifications

General

Enclosure Rating	IP20
Control Mode	Position, Speed, Torque
Communication Interface	RS-485, CANopen
Protection	Overcurrent, Overvoltage, Undervoltage, Overload, Overtemperature, Encoder error
Operating Temperature	0°C to 55°C
Storage Temperature	-20°C to 65°C
Humidity	20% to 90% RH (non-condensing)
Altitude	1000m max
Cooling Method	Natural cooling or forced air cooling
Encoder Feedback	20-bit incremental encoder (standard), 17-bit absolute encoder (optional)
