Delta ASDA-A2 Series User Manual

Chapter 3 Wiring ASDA-A2
3-46 Revision February, 2017
When the drive connects to inductive load, the diode has to be installed. (The permissible current
is under 40mA. The surge current is under 100mA.)

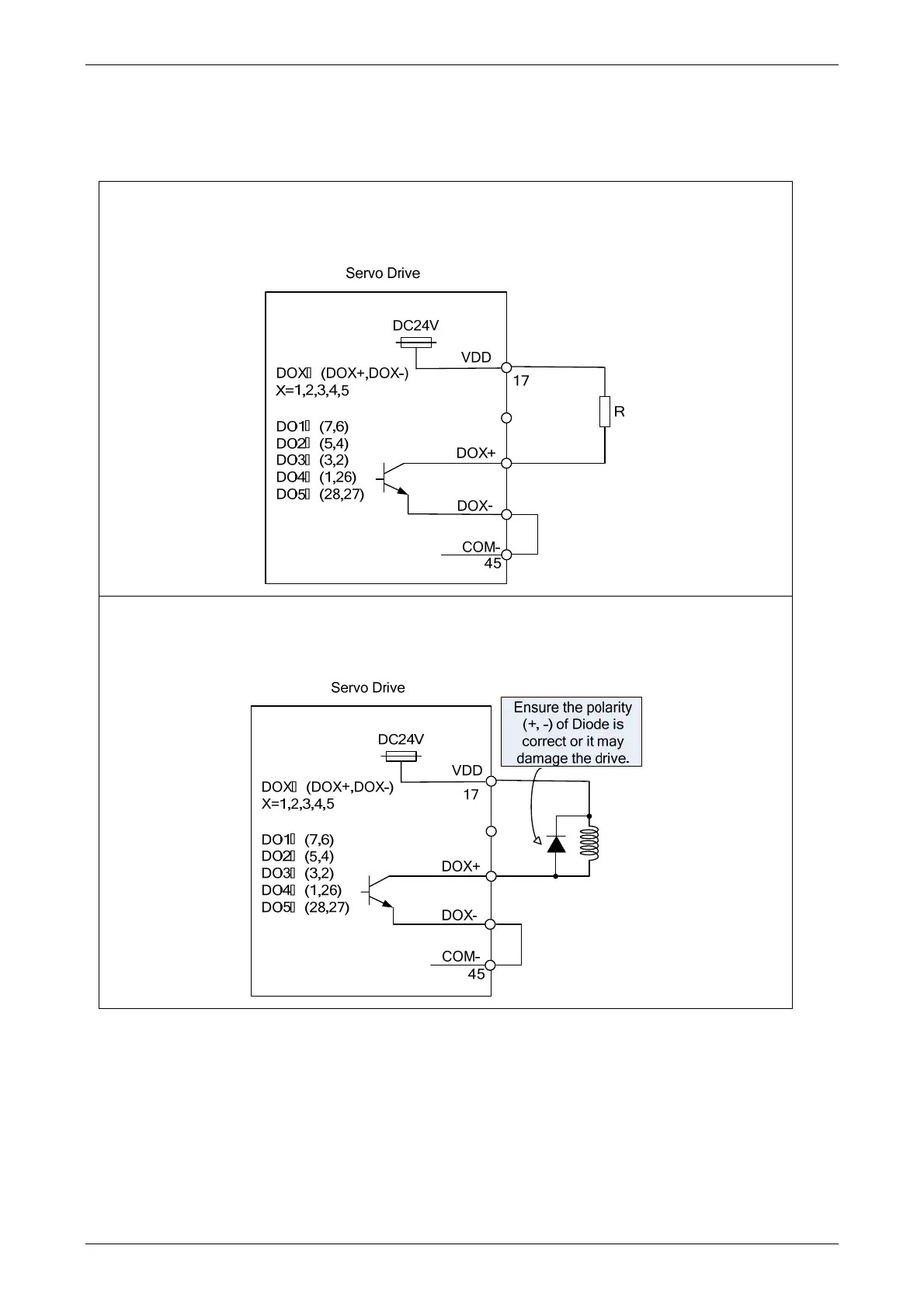

C5: Wiring of DO signal. The servo drive applies to the internal power and the resistor is
general load.
C6: Wiring of DO signal. The servo drive applies to the internal power and the resistor is
inductive load.
