Delta C2000 Series User Manual

Chapter 7 Optional AccessoriesC2000
7-13

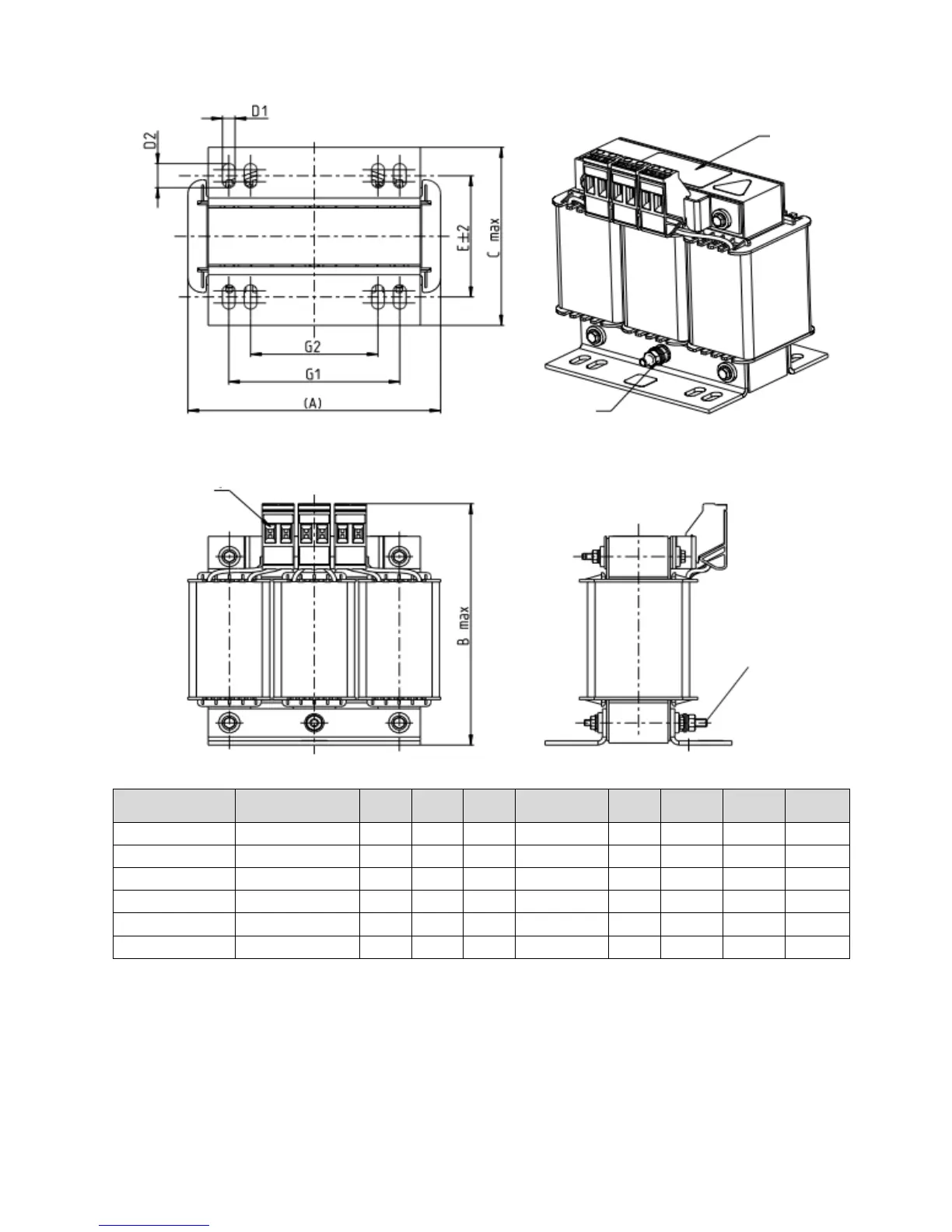

AC input reactor dimension and specifications:
Unit: mm
Model
Input AC reactor
Delta part #
A B C D1*D2 E G1 G2 PE D
VFD007C23A
DR005A0254 96 100 60 6*9 42 60 40 M4
VFD015C23A
DR008A0159 120 120 88 6*12 60 80.5 60 M4
VFD022C23A
DR011A0115 120 120 88 6*12 60 80.5 60 M4
VFD037C23A
DR017AP746 120 120 93 6*12 65 80.5 60 M4
VFD055C23A
DR025AP507 150 150 112 6*12 88 107 75 M4
VFD075C23A
DR033AP320 150 150 112 6*12 88 107 75 M4
Tightening torque: 10.2~12.3 kg-cm / [8.9~10.6 lb-in.] /
[1.0~1.2 Nm]
PE bolt
Tightening torque: 6.1~8.2 kg-cm / [5.3~7.1 lb-in.] / [0.6~0.8 Nm]
Marking
Screw length
must not
interfere with the
mounting holes
Table 7-19

Delta C2000 Series Specifications

General

Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Overload Capacity	150% of rated current for 60 seconds
Communication	DeviceNet
Protection	Overvoltage, Undervoltage, Overcurrent, Overload, Overheat
Humidity	5% to 95% (non-condensing)
Cooling	Forced air cooling
Control Mode	V/F Control, Sensorless Vector Control
