Delta C2000 Series User Manual

Chapter 7 Optional AccessoriesC2000
7-99
Frame E
Applicable model
Applicable for MKC-EFKM1: VFD450C23A/23E; VFD550C23A/23E
Applicable for MKC-EFKM2: VFD750C23A/23E; VFD900C43A/43E; VFD1100C43A/43E
Applicable for MKC-EFKM3: VFD750C63B-00; VFD900C63B-00; VFD1100C63B-00; VFD1320C63B-00; VFD750C63B-21;
VFD900C63B-21; VFD1100C63B-21; VFD1320C63B-21
Applicable for MKC-EFKB: VFD450C23A/23E; VFD550C23A/23E; VFD750C23A/23E; VFD900C43A/43E; VFD1100C43A/43E;
VFD750C63B-00; VFD750C63B-21; VFD900C63B-00; VFD900C63B-21; VFD1100C63B-00;
VFD1100C63B-21; VFD1320C63B-00; VFD1320C63B-21

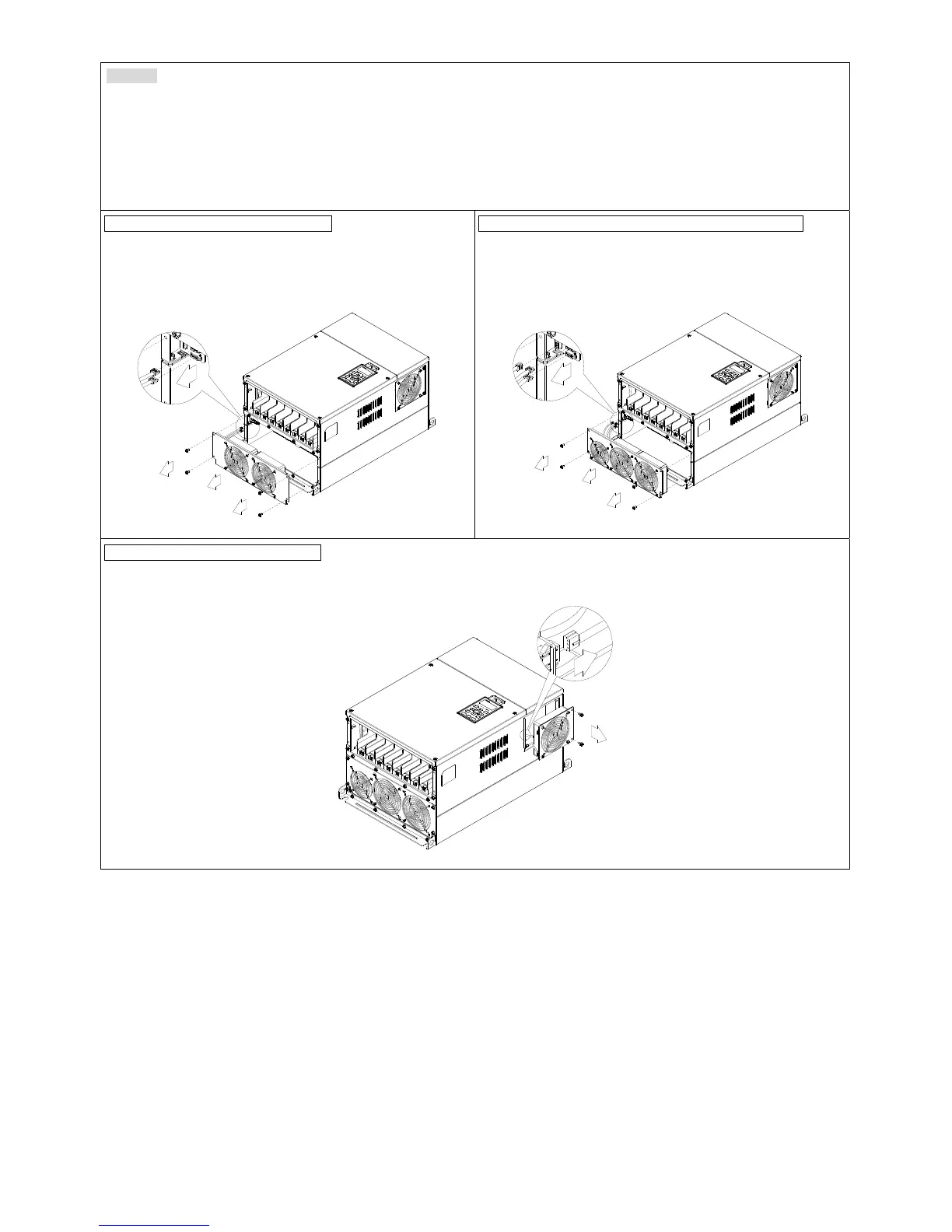

Model “MKC-EFKM1” Heat Sink Fan
1. Loosen screw 1~4 (figure 1) and disconnect fan power
and pull out the fan. (As shown in the enlarged picture 3)
Screw1~4 Torque: 24~26 kg-cm / [20.8~22.6 lb-in.] /
[2.4~2.5 Nm]
1
2
3
4
Figure 1
Model “MKC-EFKM2” / “MKC-EFKM3” Heat Sink Fan
1. Loosen screw 1~4 (figure 2) and disconnect fan power
and pull out the fan. (As shown in the enlarged picture 3)
Screw1~4 Torque: 24~26 kg-cm / [20.8~22.6 lb-in.] /
[2.4~2.5 Nm]
1
2
3
4
Figure 2
Model “MKC-EFKB” Capacitor Fan
1. Loosen screw 1~2 (figure 3) and disconnect fan power and pull out the fan. (As shown in the enlarged picture 3)
Screw1~2 Torque: 24~26 kg-cm / [20.8~22.6 lb-in.] / [2.4~2.5 Nm]
1
2
Figure 3

Delta C2000 Series Specifications

General

Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Overload Capacity	150% of rated current for 60 seconds
Communication	DeviceNet
Protection	Overvoltage, Undervoltage, Overcurrent, Overload, Overheat
Humidity	5% to 95% (non-condensing)
Cooling	Forced air cooling
Control Mode	V/F Control, Sensorless Vector Control
