Delta C2000 Series User Manual

Chapter 7 Optional AccessoriesC2000
7-100
Frame F
Applicable model
VFD900C23A/23E; VFD1320C43A/43E; VFD1600C43A/43E;
VFD1600C63B-00; VFD2000C63B-00; VFD1600C63B-21;
VFD2000C63B-21
Fan model “MKC-FFKM” Heat Sink Fan

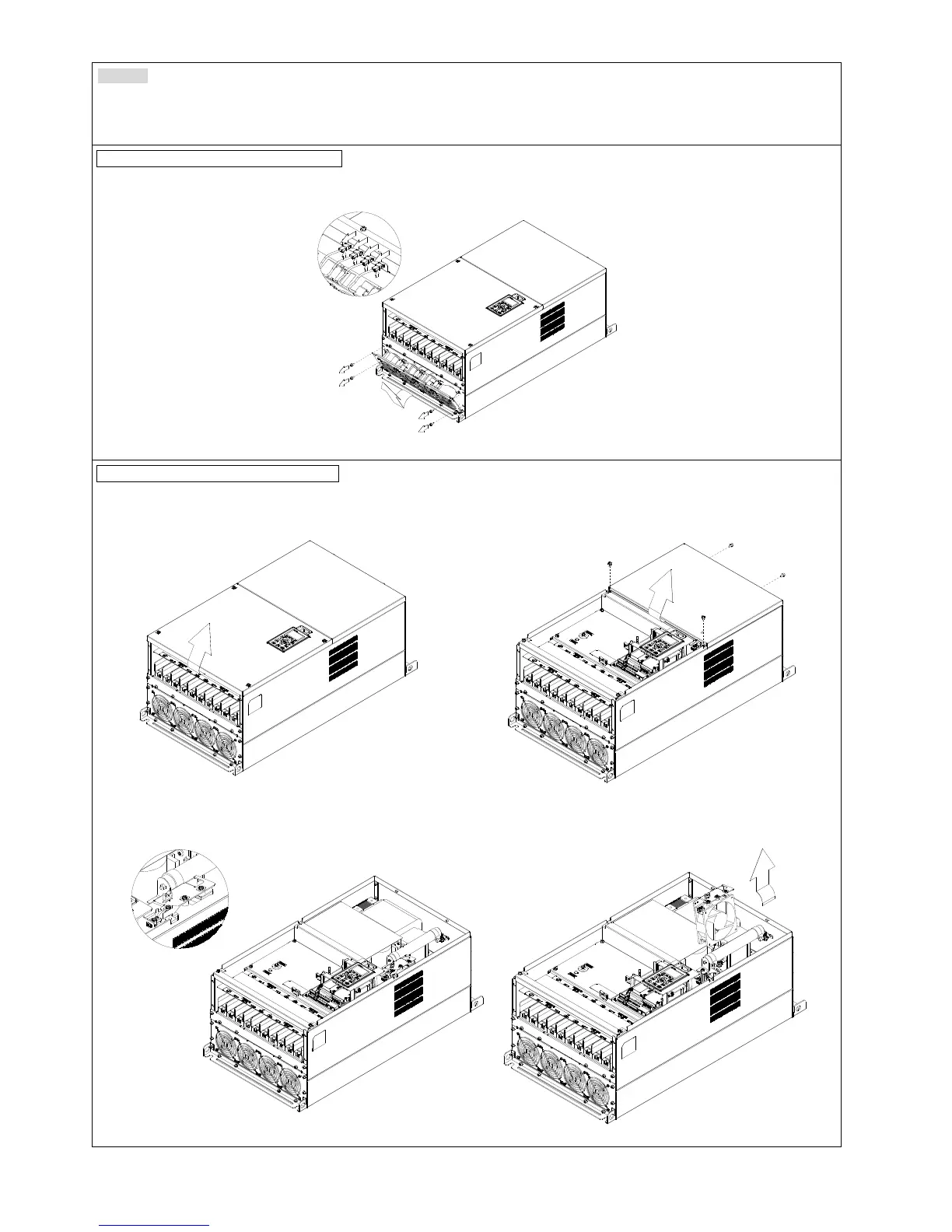

Loosen the screws and plug out the power of fan before removing (figure 1).
Screw torque: 24~26 kg-cm / [20.8~22.6 Ib-in.] / [2.4~2.5 Nm]
1
4
3
2
Figure 1
Fan model “MKC-FFKB” Capacitor Fan
1. Loosen the screw (figure 1) and removes the cover.
Screw torque:
12~15 kg-cm / [10.4~13 Ib-in.] /
[1.2~1.5 Nm]
1
3
2
4
Figure 1
2. Loosen the screw (figure 2) and removes the cover.
Screw torque:
24~26 kg-cm / [20.8~22.6 Ib-in.] /
[2.4~2.5 Nm]
8
7
6
5
Figure 2
3. Loosen the screws and remove the fan. (figure 3 and figure 4) Screw torque: 24~26 kg-cm / [20.8~22.6 Ib-in.] / [2.4~2.5 Nm]
11
10
9
11
10
9
Figure 3 Figure 4

Delta C2000 Series Specifications

General

Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Overload Capacity	150% of rated current for 60 seconds
Communication	DeviceNet
Protection	Overvoltage, Undervoltage, Overcurrent, Overload, Overheat
Humidity	5% to 95% (non-condensing)
Cooling	Forced air cooling
Control Mode	V/F Control, Sensorless Vector Control
