Chapter 12 Description of Parameter SettingsC2000
12.1-00-16
bit 4–15: user-defined unit
000xh: Hz
001xh: rpm
002xh: %
003xh: kg
004xh: m/s
005xh: kW
006xh: HP
007xh: ppm
008xh: 1/m
009xh: kg/s
00Axh: kg/m
00Bxh: kg/h
00Cxh: lb/s
00Dxh: lb/m
00Exh: lb/h
00Fxh: ft/s
010xh: ft/m
011xh: m
012xh: ft
013xh: degC
014xh: degF
015xh: mbar
016xh: bar
017xh: Pa
018xh: kPa
019xh: mWG
01Axh: inWG
01Bxh: ftWG
01Cxh: psi
01Dxh: atm
01Exh: L/s
01Fxh: L/m
020xh: L/h
021xh: m3/s
022xh: m3/h
023xh: GPM
024xh: CFM
xxxxh: Hz

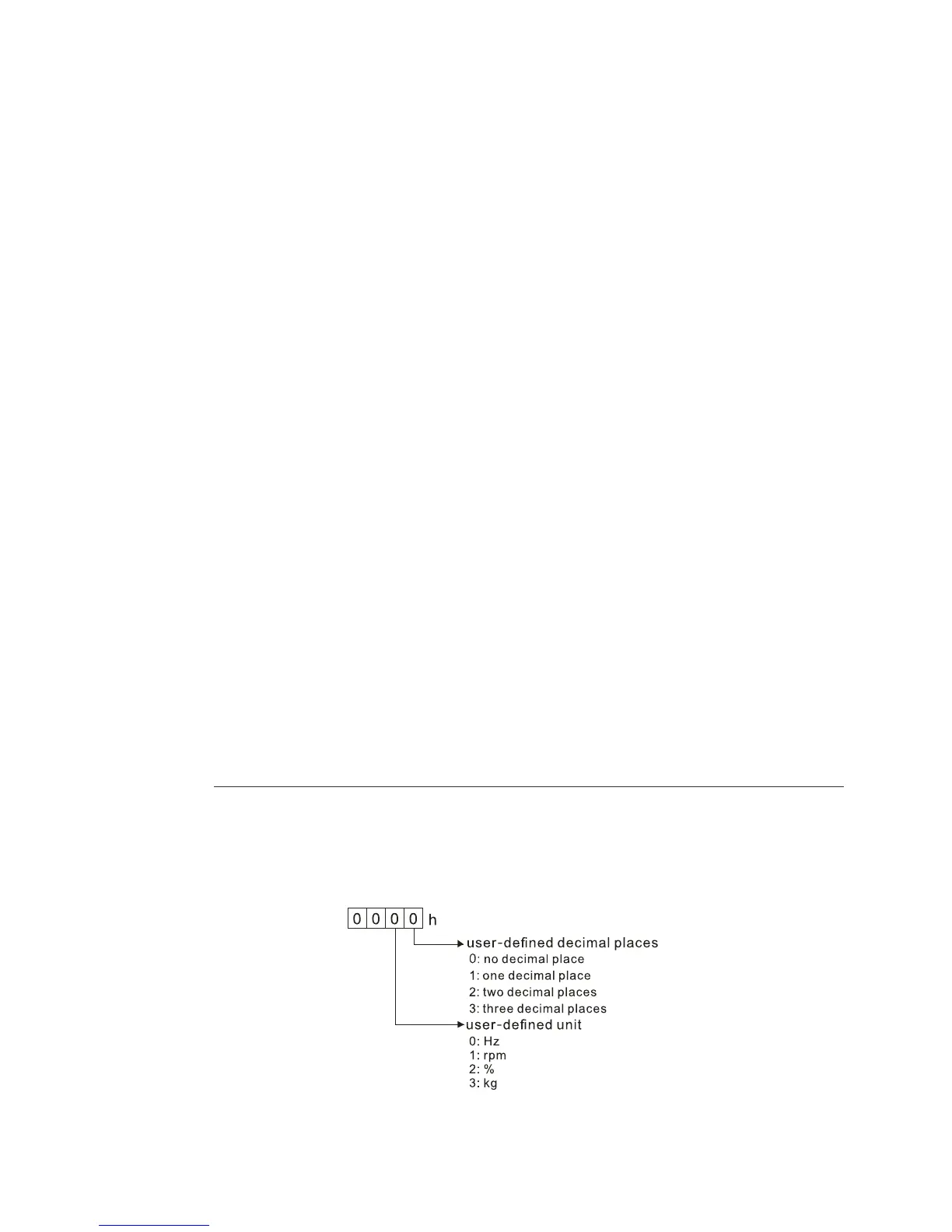

bit 0–3: the control frequency F page, user-defined unit (Pr.00-04 = d10, PID feedback value) and
the number of decimal places (Pr.00-26) which supports up to three decimal places.
bit 4–15: the control frequency F page, user-defined unit (Pr.00-04 = d10, PID feedback value)
and the displayed units for Pr.00-26.
