Delta C2000 Series User Manual

Chapter 12 Description of Parameter SettingsC2000
12.1-02-15
Settings Functions Descriptions
41 Multi-position reached
User can set any three multi-function input terminals to 41. The
current position action status of these three terminals will be
outputted. Example: if setting Pr. 02-36~02-38 to 41 and only the
multi-position of the second point has been done. Then, the
current status is RA (ON), RA (OFF) and MO1 (OFF). In this way,
their status is 010. bit0 is RA and so on.
MO2
Pr.02-17=41
MO1
Pr.02-16=41
RY2
Pr.02-14=41
RY1
Pr.02-13=41
Pr. 04-16 0 0 0 1
Pr. 04-18 0 0 1 0
Pr. 04-20 0 0 1 1
Pr. 04-22 0 1 0 0
Pr. 04-24 0 1 0 1
Pr. 04-26 0 1 1 0
Pr. 04-28 0 1 1 1
Pr. 04-30 1 0 0 0
Pr. 04-32 1 0 0 1
Pr. 04-34 1 0 1 0
Pr. 04-36 1 0 1 1
Pr. 04-38 1 1 0 0
Pr. 04-40 1 1 0 1
Pr. 04-42 1 1 1 0
Pr. 04-44 1 1 1 1
42 Crane Function
Use this function with Pr. 02-32, Pr. 02-33, Pr. 02-34, Pr. 02-57
and Pr. 02-58.
The example of the crane application is in the following for your
reference.
43
A
ctual motor speed
higher than Pr. 02-47
Active when motor actual speed is higher than Pr. 02-47.

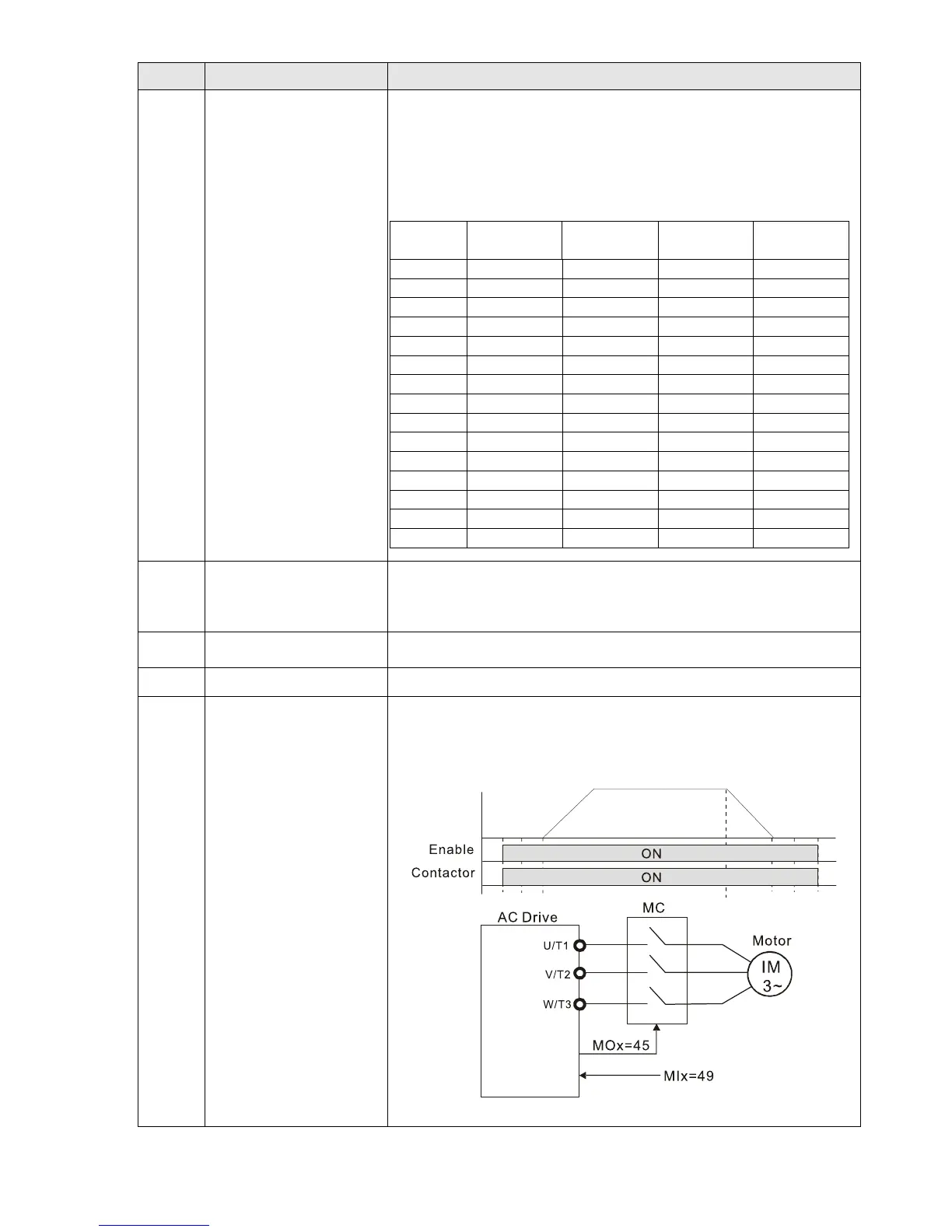

44 Low Current Output Use this function with Pr. 06-71–Pr. 06-73
45
UVW output
electromagnetic valve
switch
Use this function with external terminal input = 49 (drive enabled)
and external terminal output = 45 (electromagnetic valve
enabled), and then the electromagnetic valve is ON or OFF
according to the status of the drive.

Delta C2000 Series Specifications

General

Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Overload Capacity	150% of rated current for 60 seconds
Communication	DeviceNet
Protection	Overvoltage, Undervoltage, Overcurrent, Overload, Overheat
Humidity	5% to 95% (non-condensing)
Cooling	Forced air cooling
Control Mode	V/F Control, Sensorless Vector Control
