3-10

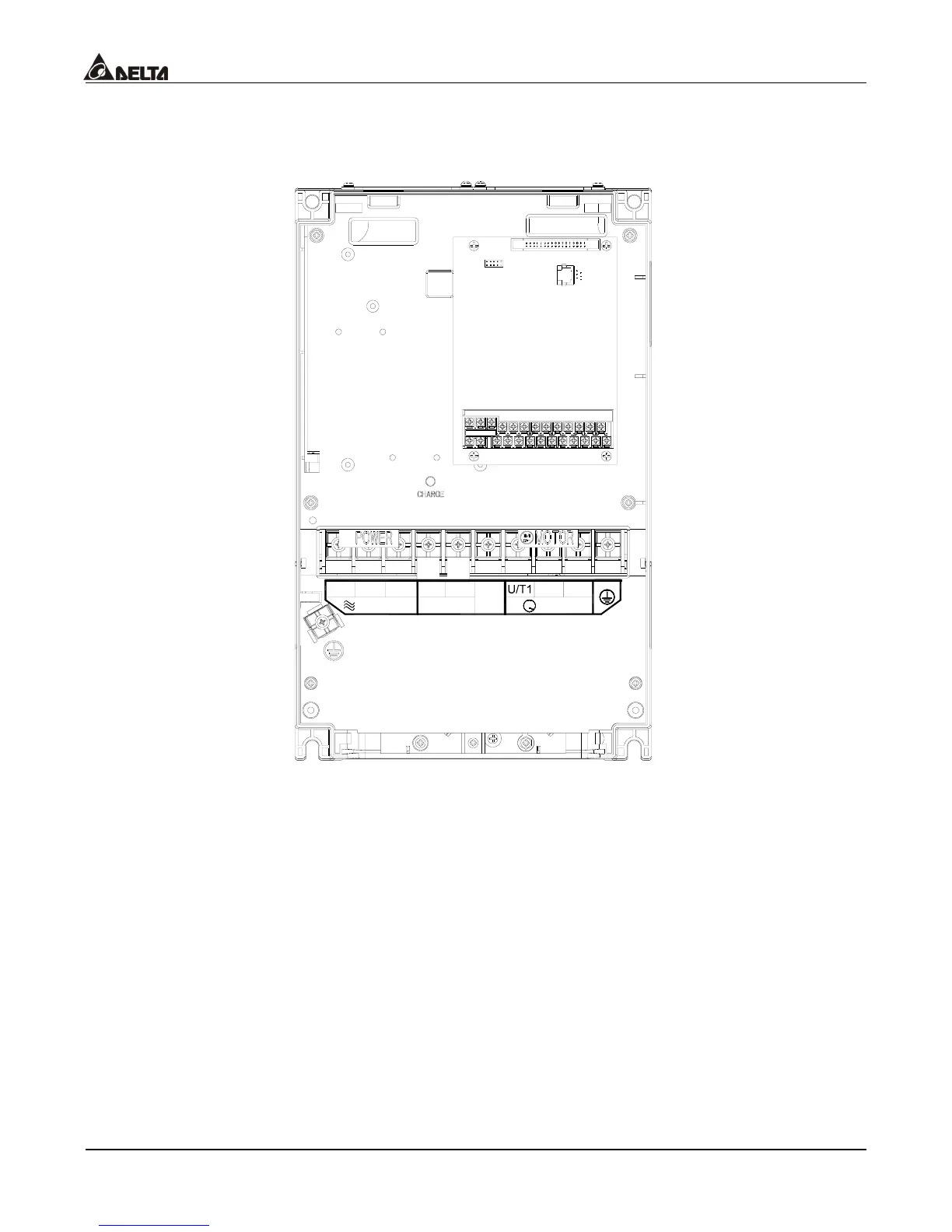

15HP to 30HP (VFD110V23A/43A, VFD150V23A/43A, VFD185V23A/43A,
VFD220V23A/43A)
R/L1
DC DC +
( )
( )
-
POWER
S/L2 T/L3
-
+2
+1
MOTOR
IM
3
V/T2 W/T3
Control Terminal
Torque: 8Kgf-cm (6.9 in-lbf)
Wire: 22-14 AWG
Power Terminal
Torque: 30 kgf-cm (26 in-lbf)
Wire Gauge: 8-2 AWG
Wire Type: Stranded Copper only, 75°C
NOTE: If wiring of the terminal of VFD220V23A utilizes the wire with a 1AWG-diameter, it
is thus necessary to use the Recognized Ring Terminal to conduct a proper
wiring.
