Welcome Screen

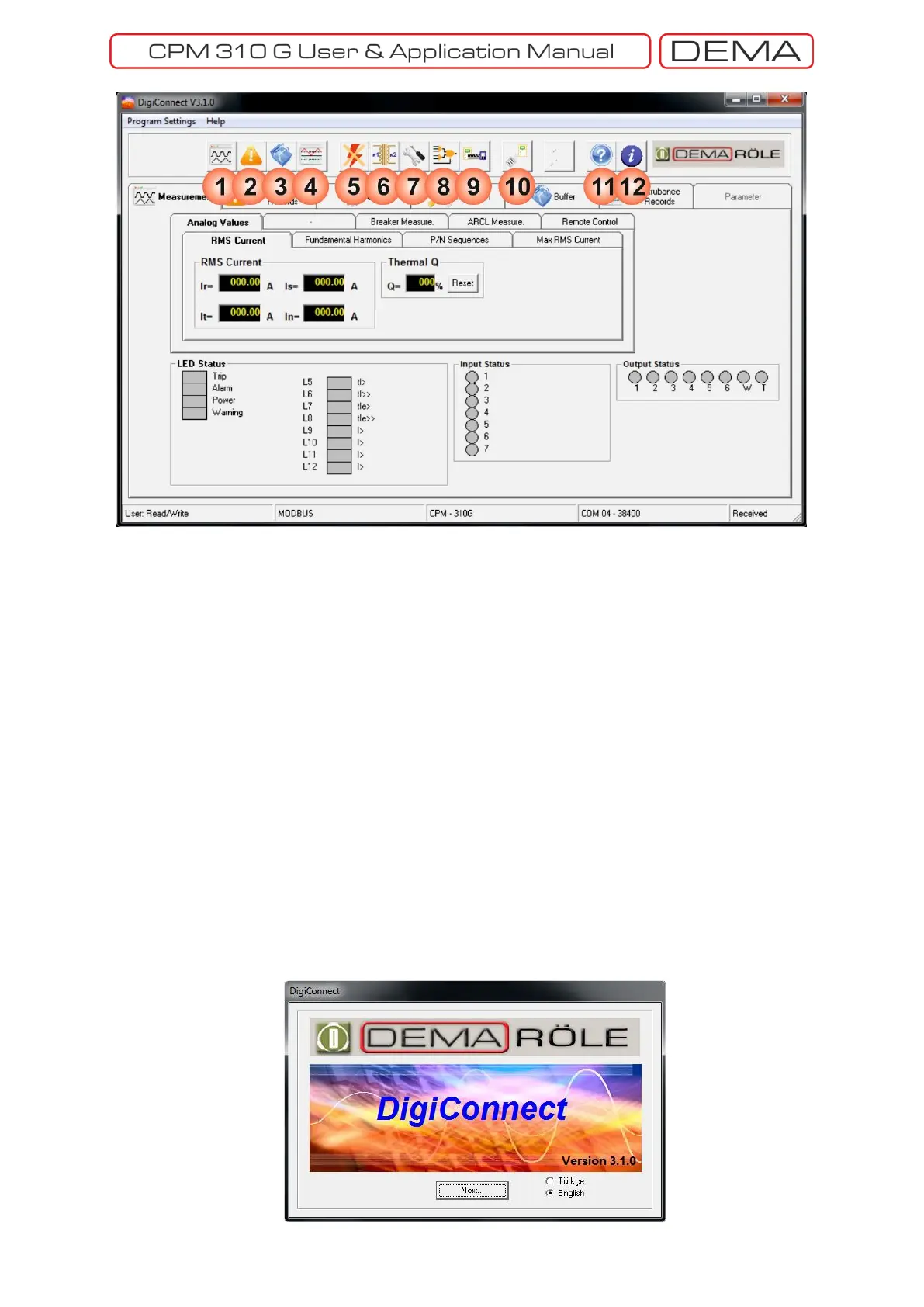

On the upper side of Welcome Screen, shortcuts to the menus listed below are located. It is also possible to
reach the same menus by exploring the tabs below the shortcuts.
1. Measurements shortcut leads to the measurement menus;
2. Alarms / Event Records shortcut leads to the submenus where alarms, event records and fault records can
be viewed;
3. Buffer shortcut leads to the menu where setting changes recorded to the buffer are sent to the relay, and
where the template and password files are managed;
4. Waveform Records shortcut leads to the menu where recorded waveforms are explored;
5. Protection Settings shortcut leads to the protection settings menu;
6. CT Settings shortcut leads to the menu where current transformer settings are done;
7. System Settings shortcut leads to the menu where system settings are made;
8. Automatic Control Settings shortcut leads to the leads to the automatic control settings menu;
9. Communication Settings shortcut leads to the menu where communication settings are done;
10. Remote Control shortcut leads to the menu where the circuit breaker and programmable outputs are
controlled remotely;
11. Help shortcut launches the help file in PDF format;
12. About shortcut pops up the window where software version is monitored, as shown on the screenshot
below. □
