- 144 -
Measurements » Remote Control

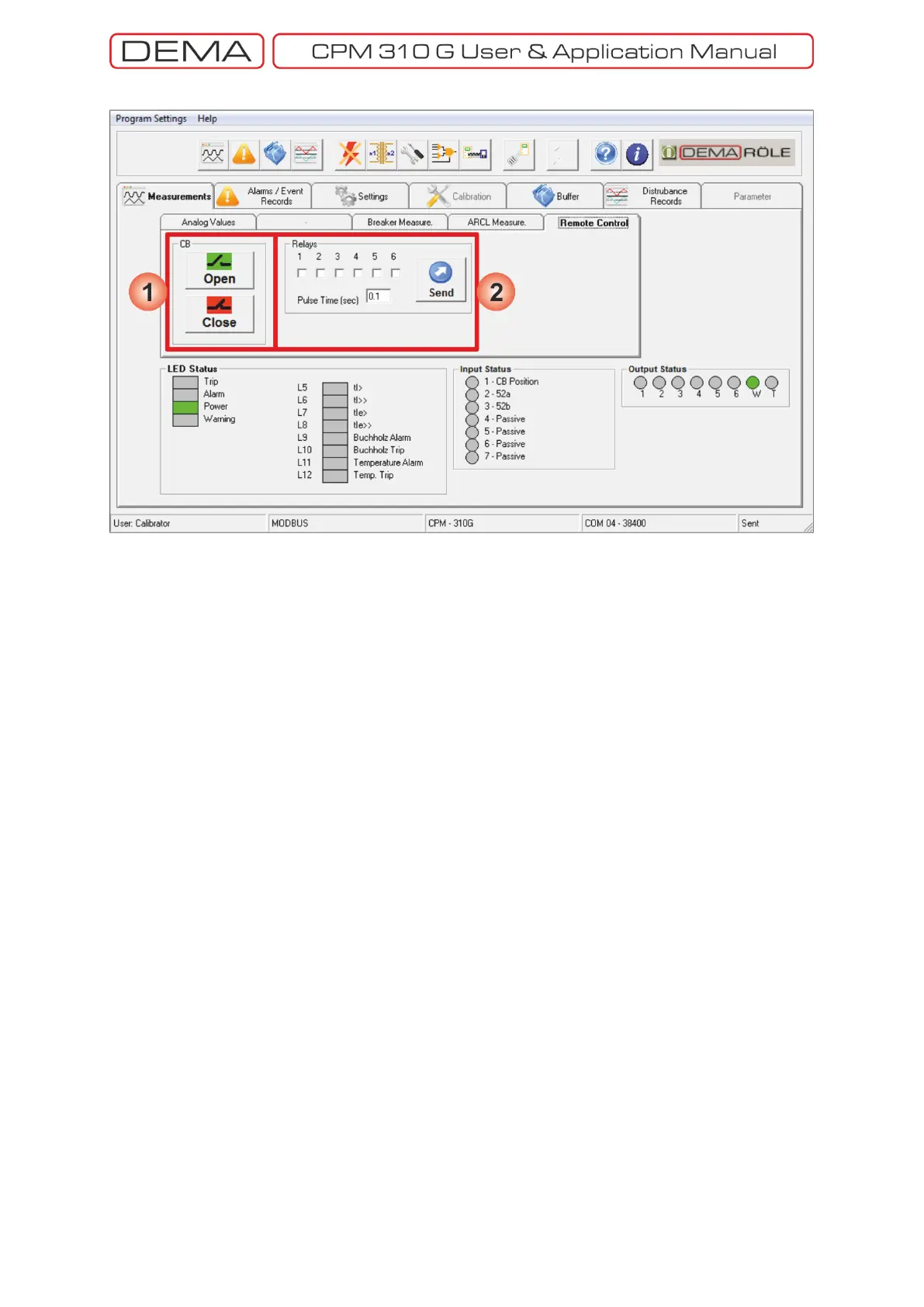

Remote Control tab comprises controls that enable the user to take remote control the CB and the
programmable outputs.
1. CB (Circuit Breaker) window is used for controlling the circuit breaker via the Open and Close buttons.
2. Relays window is used for controlling the programmable outputs by utilizing the check boxes and the Send
button. When a check box is checked and the Send button is hit, the related output relay changes position
for the time determined by the Pulse Time parameter on the window. It must be noted that, if the output
being controlled is set to latch via the related menu Latch Settings, the output relay will be latched and
stay closed even after the pulse time has expired.
Pulse time parameter can be set within the range of (0.1 - 5.0) s. □
