- 87 -
Max RMS Current Measurements Menu
Max. RMS Measurements Menu displays the measured
maximum R, S, T and N line RMS current values since
the last resetting.
The
Max RMS Current Measurements
menu;
Makes it possible to check the inrush current of the
protected system and fine-tune the protection
functions,
Monitors the peak current values a fault can reach,
And gives statistical information for archiving,
Maximum RMS current values are measured and
displayed within the range of (0.1-40.0) I
n
and (0.1-
40.0) I
en
. Values lower than the base limit will neither
be measured nor be displayed, while values exceeding
the upper limit will be evaluated and displayed as 40 I
n
or 40 I
en

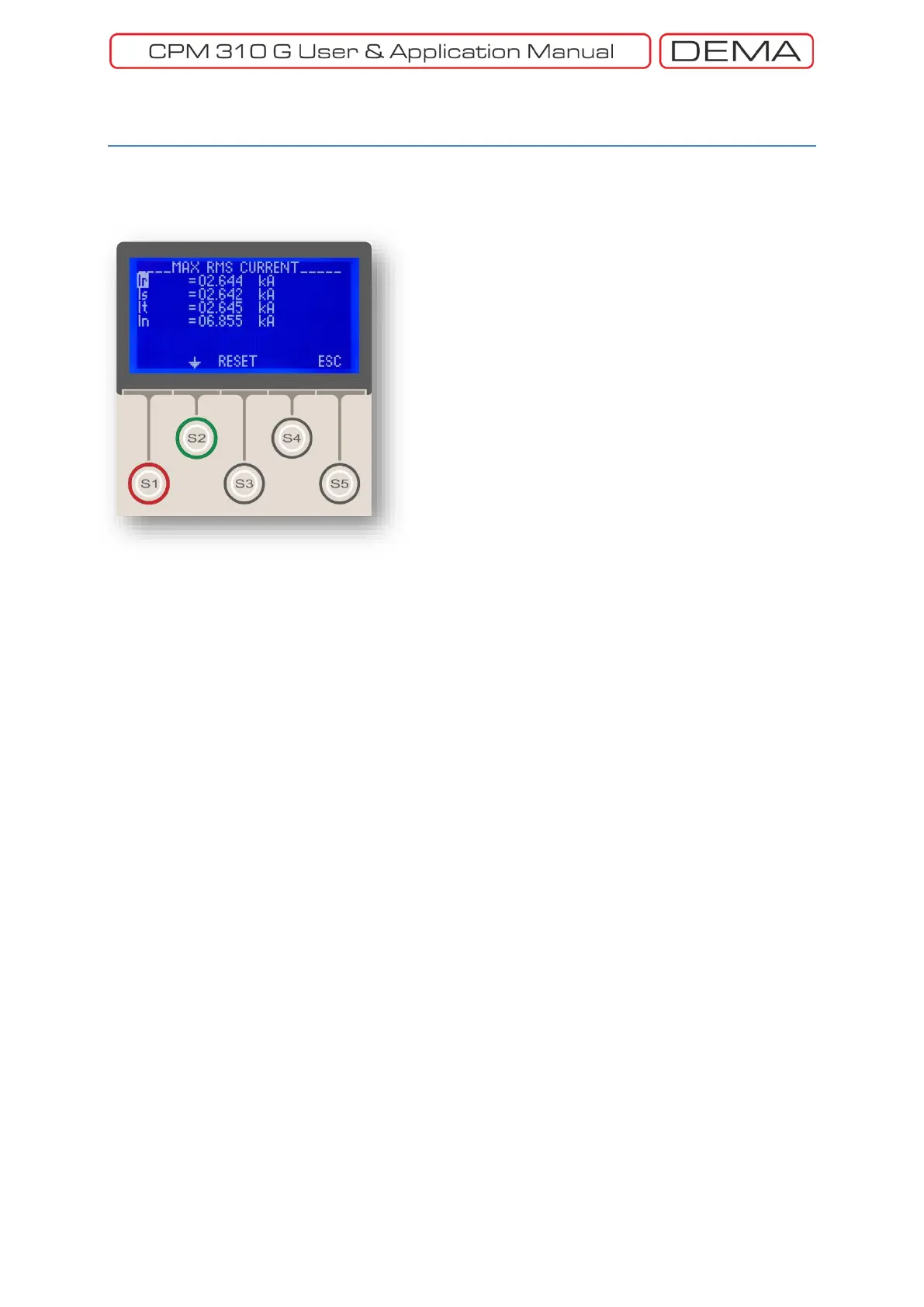

. As seen on the picture on the middle of the
page, maximum values of each measurement (R, S, T
and N) can be reset; this feature enables the users to
collect statistical data by regular basis. □
