Communication Settings Menu
Communication Settings Menu
allows the users to view
and change digital communication settings. The menu
controls provide the available options of communication
ports, communication protocols, communication speed
and relay addressing to be accessed and changed.

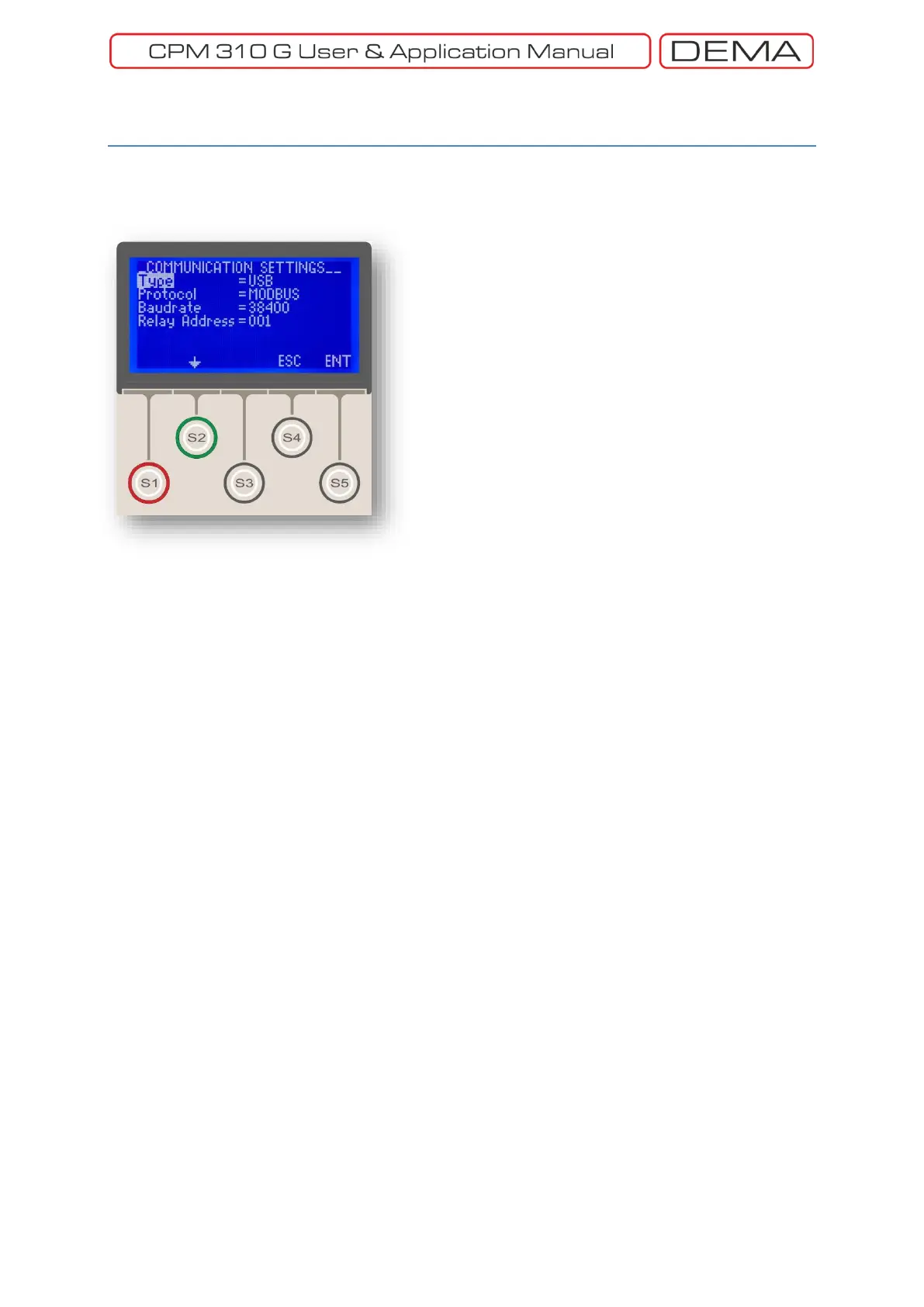

The welcome menu and the full content are shown on
the pictures in order.
The options on the menu are described below.
Type
This field enables the port setting alter between USB
and RS485. The USB port is located on the front face of
the unit, and is usually utilized to provide CPM 310 G –
DigiConnect PC Program
communication. Most of the
other communication systems need and use the RS485
port, of which terminals are located on the backside
terminal blocks of the unit. The default setting is
USB
.
Protocol
DEMA CPM 310 G allows the activation and use of three communications protocols. These protocols
are listed below.
1. DEMCOM (DEMA Communications Protocol),
2. MODBUS,
3. IEC 60870-5-103.
The default setting for this field is
DEMCOM
.
Baudrate
Options for this field are 1,200 – 2,400 – 4,800 – 9,600 -19,200 and 38,400 bauds. The default setting
is 38,400 bauds.
Relay Address
When more than one units of CPM 310 G are to be watched and/or controlled remotely, relay
addressing becomes essential. DEMA CPM 310 G Relays allow addressing in integers from 1 to 255.
The default address is “001”. □
