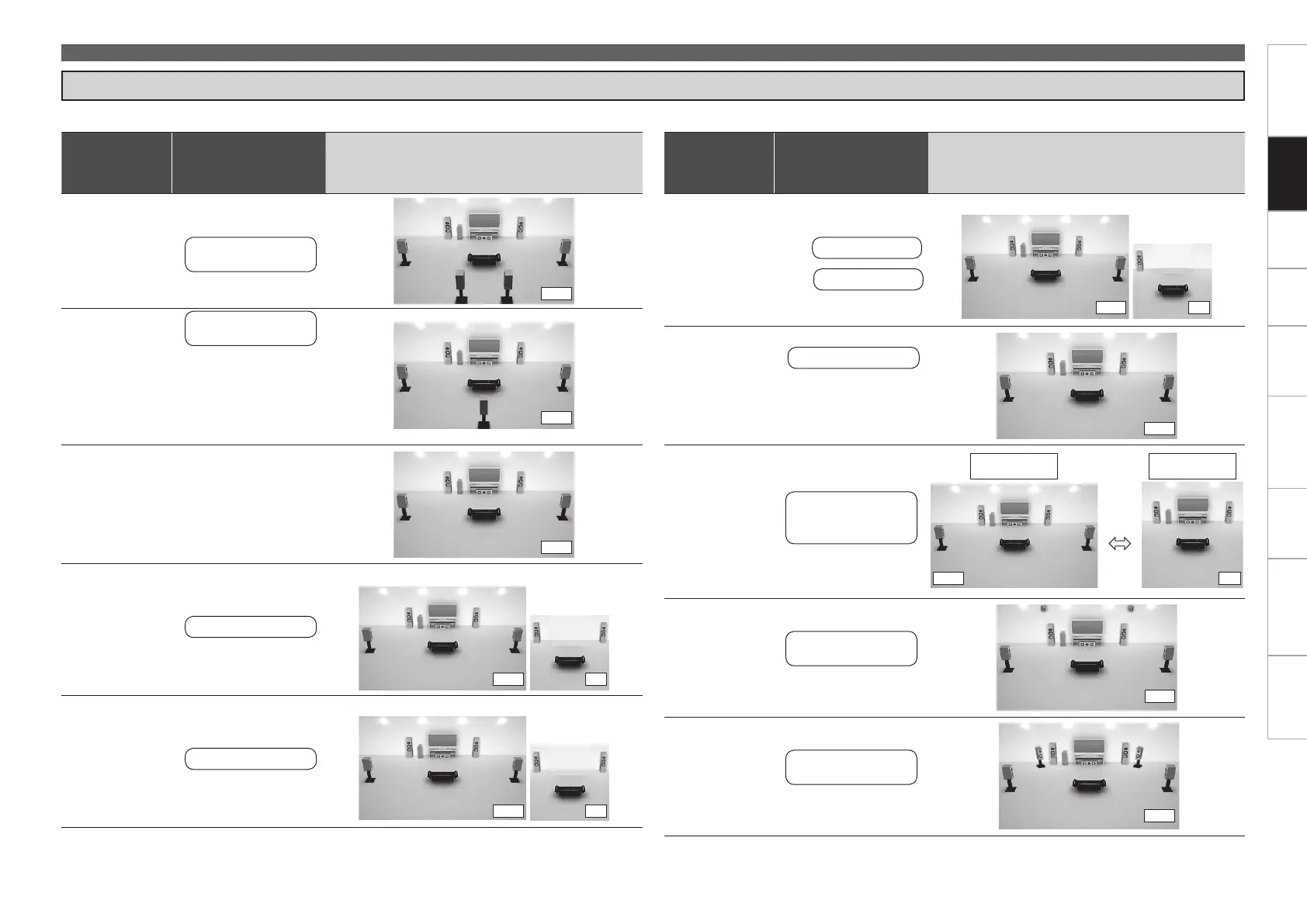

s Set the “Amp Assign” Mode According to the Speaker Layout
The signals output from the AVR-4310CI’s SURR. BACK/AMP ASSIGN speaker terminals can be switched (vpage 34 “Amp Assign”).
Amp assign
mode
(vpage 34)
SURR. BACK /
AMP ASSIGN
Speaker connections
Example of speaker installation
(Number of channels played)
Normal
Surround Back
Speakers
Normal
Surround Back L
Speaker
Connect to the “L”
speaker terminal.
Set “Surround Back”
(vpage 35) to
“1spkr”.
b
b
Normal
Not connected
Set “Surround Back”
(vpage 35) to
“None”.
b
ZONE2
(Default)
ZONE2 speakers
MAIN ZONE ZONE2
ZONE3
ZONE3 speakers
MAIN ZONE ZONE3
(7.1)
(6.1)
(5.1)
(5.1) (2)
(5.1) (2)
Amp assign
mode
(vpage 34)
SURR. BACK /
AMP ASSIGN
Speaker connections
Example of speaker installation
(Number of channels played)
ZONE (MONO)
L ch :
ZONE2 speaker
R ch :
ZONE3 speaker
MAIN ZONE ZONE2 or ZONE3
Bi-Amp
Front Speakers
For connections,
see “About Bi-amp
Connections” (vpage
13).
b
2CH
Exclusively for
2-channel playback
Front Speakers
Front Height
Front Height
Speakers
Front Wide
Front Wide
Speakers
(5.1) (1)
(5.1)
(2)
(7.1)
(7.1)
(5.1)
Multi channel
surround
DIRECT/
STEREO
Switching
Connections
Installing/Setting the Speakers
