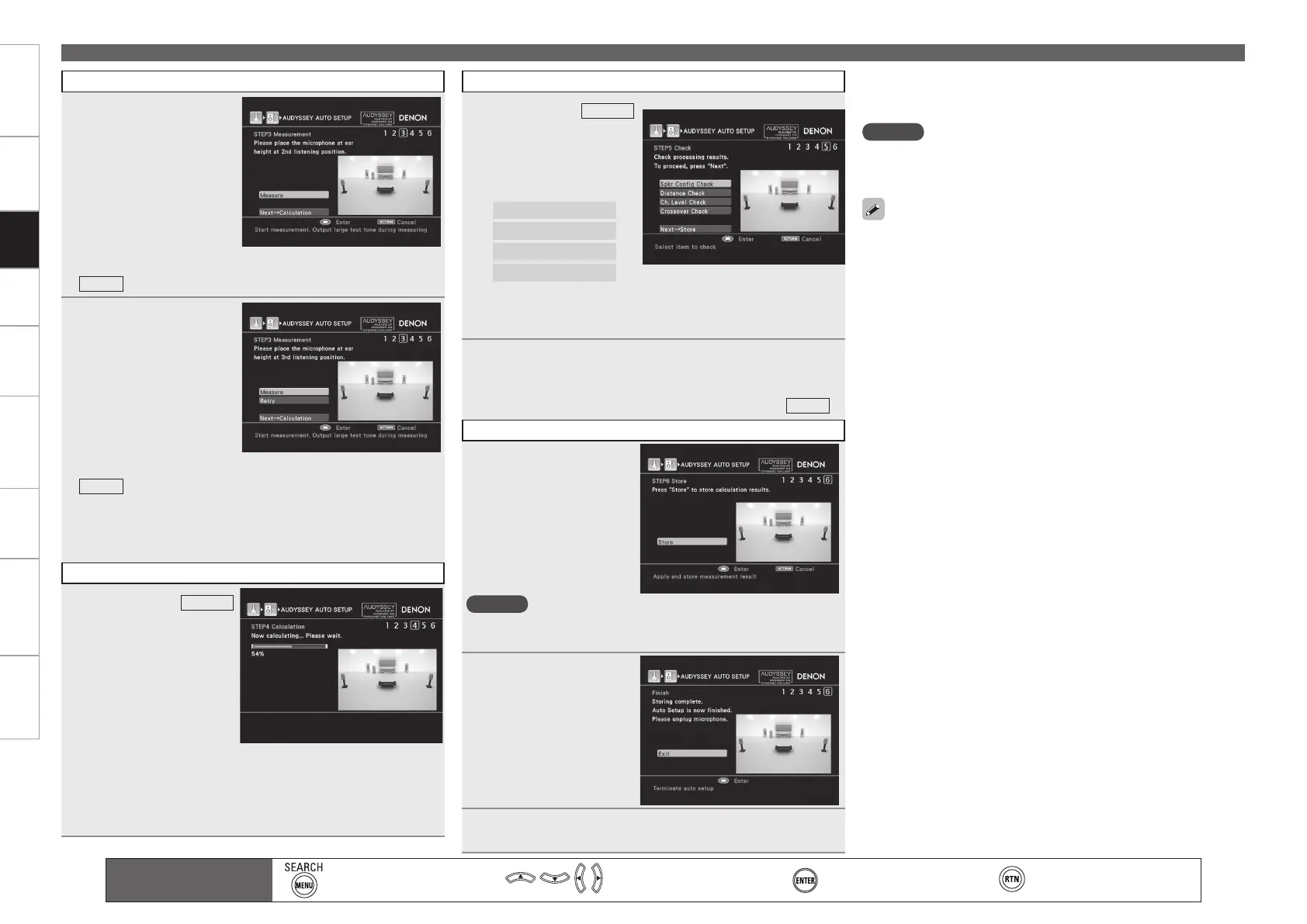

Make the Optimal Speaker Settings, and Correct the Room Acoustics (Audyssey Auto Setup)
STEP5 Check
5
On the
STEP5
screen, press ui
to select the item you
want to check, and
then press ENTER.
Speaker Config. Check
Distance Check
Channel Level Check
Crossover Freq. Check
Subwoofers may measure a greater reported distance than
the actual distance due to added electrical delay common in
subwoofers.
b
6
Press ui to select the channel you want to check.
The measurement result of each speaker is displayed.
If you want to check another item, press RETURN.
Select “Next → Store” and press ENTER to proceed to “
STEP6
”.
b
b
STEP6 Store
7
Select “Store” and
then press ENTER.
Save the measuring
results.
The save operation
takes about 30 seconds
to complete.
b
NOTE
During saving of measuring results, be sure not to turn off the
power.
8
When the screen
shown on the right
appears, unplug the
setup microphone
from the AVR-4310CI
SETUP MIC jack.
9
Select “Exit” and then press ENTER.
Exiting the GUI Menu
Press MENU while the GUI menu is displayed.
The GUI menu display disappears.
n
STEP3 Measurement
2
Move the setup
microphone to
position 2, select
“Measure”, and then
press ENTER.
The measurement of the
2nd position starts.
To skip this step, select “Next → Calculation” and proceed to
STEP4
.
b
3
Repeat step 2,
measuring positions
3 ~ 8.
When measurement of
position 8 is completed,
a “Measurements
finished.” message is
displayed.
To skip this step, select “Next → Calculation” and proceed to
STEP4
.
Measure in at least 6 positions in and around the main listening
position. Even though you can complete measurement with at
least 6 positions, it is advisable to use more than 6 (a maximum
of 8 positions).
b
b
STEP4 Calculation
4
On the
STEP3
screen, select “Next
→ Calculation”, and
then press ENTER.
Measuring results
are analyzed, and the
frequency response
of each speaker in
the listening room is
determined.
Analysis takes several minutes to complete. The time required for
this analysis depends on the number of speakers connected.
The more connected speakers there are, the longer it takes to
perform analysis.
b
If there is a disparity between the results and the connection status,
or if an error message is displayed, check the error message against
the errors listed in the “Error Messages” section (vpage 32) and
perform Audyssey Auto Setup again.
If the result still differs from the actual connection status after
remeasurement or the error message still appears, it is possible
that the speakers are not connected properly. Turn the AVR-4310CI
off, check the speaker connections and repeat the measurement
process from the beginning. Turn the AVR-4310CI off, check the
speaker connections and repeat the measurement process from the
beginning.
If you change a speaker position or orientation, perform Audyssey
Auto Setup again to obtain optimal equalizer correction.
•
•
•
NOTE
After performing Audyssey Auto Setup, do not change the speaker
connections or subwoofer volume. In event of a change, perform
Audyssey Auto Setup again.
Main remote control
operation buttons
:Displaying the menu
Cancel the menu
:Moves the cursor
(Up/Down/Left/Right)
:Confirm the setting :Return to previous menu
Setting
1.AVR4310CIEU.indd 31 2009/04/14 16:37:00
