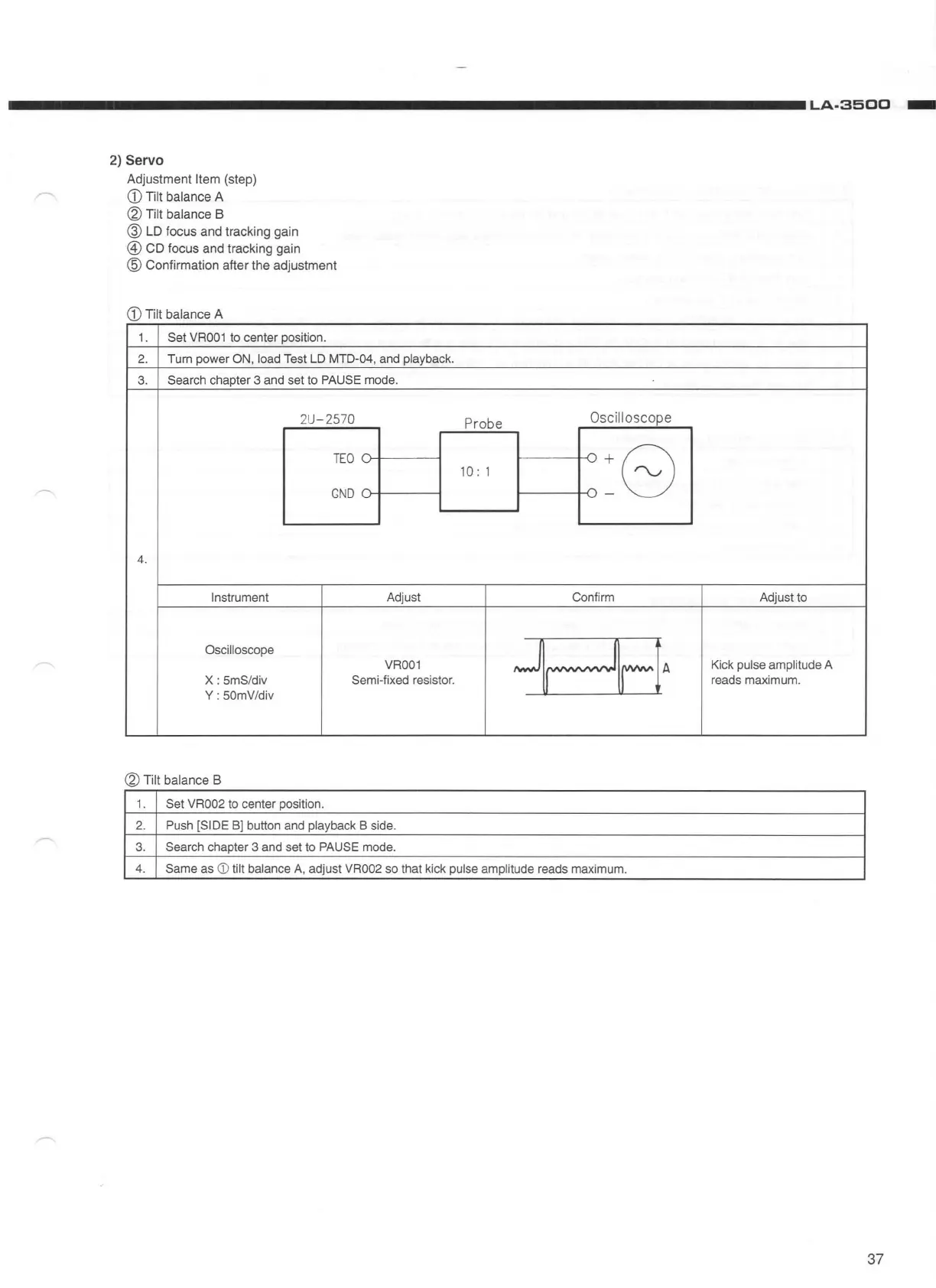

2) Servo
Adjustment Item (step)
CD Tilt balance A
@ Tilt balance B
@ LD focus and tracking gain
® CD focus and tracking gain
@ Confirmation after the adjustment
CD Tilt balance A
1. Set VR001 to center position.
2. Turn power ON, load Test LD MTD-04, and playback.
3. Search chapter 3 and set to PAUSE mode.
4.
Instrument
Oscilloscope
X: 5mS/div
Y :
50mV/div
2U-2570
TEO
GND
Adjust
VR001
Semi-fixed resistor.
@Tilt balance B
1. Set VR002 to center position.
2. Push [SIDE B] button and playback B side .
3.
Search chapter 3 and set to PAUSE mode.
Probe
Oscilloscope
10: 1
!-----+-< :) : 8
Confirm
~F++
4.
Same as CD tilt balance A, adjust VR002 so that kick pulse amplitude reads maximum.
Adjust
to
Kick pulse amplitude A
reads maximum.
