Denon RCD-N7 Service Manual

43
to 2.2. CD PLAY
z
Mark

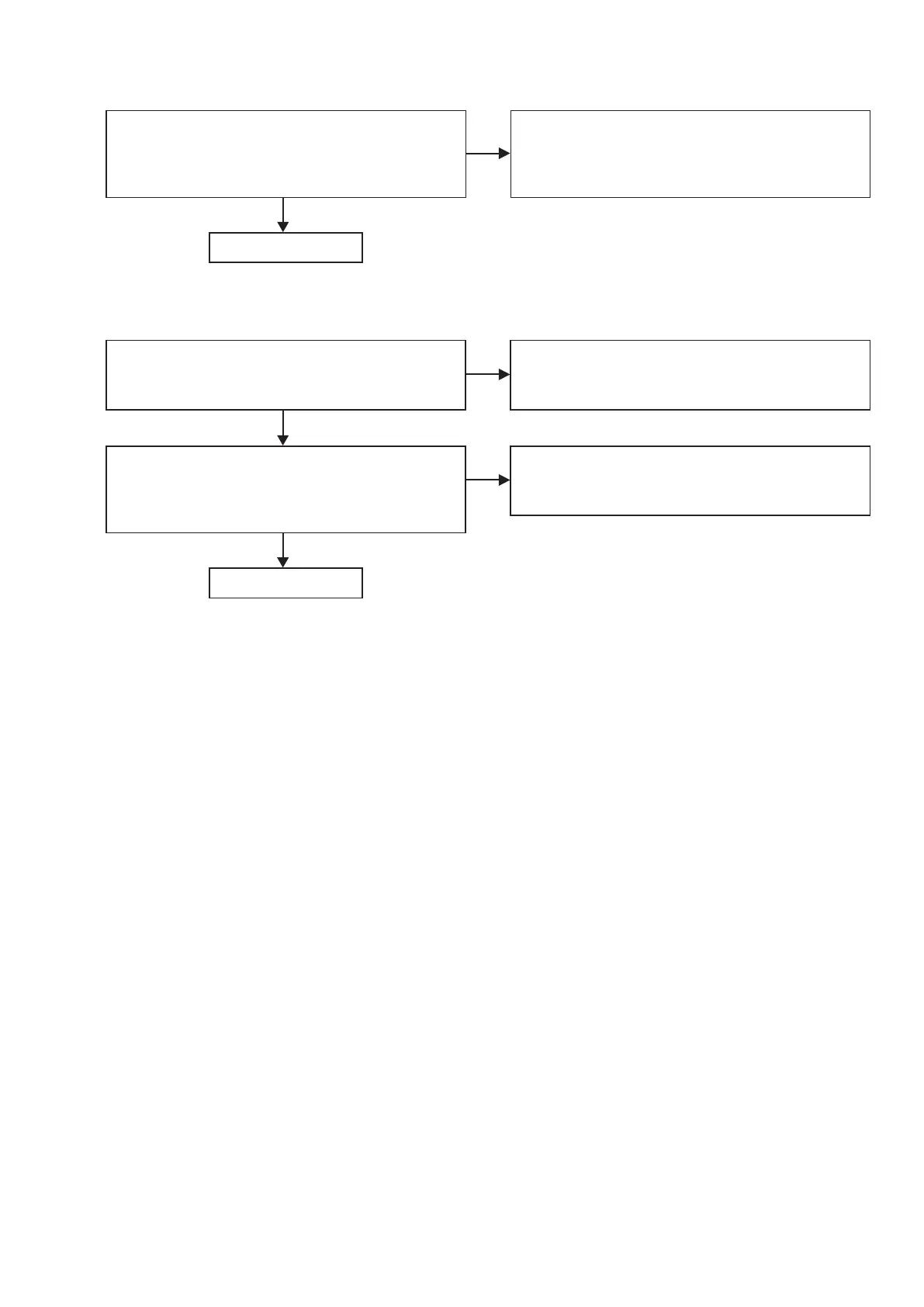

2.5 . AUX1/AUX2
Check Analog Audio Signal from AUX1/AUX2.
MAIN B'D
• [AUX1], [AUX2] input
• [IC41] : 55,56pin AUX1_L_IN, AUX1_R_IN
• [IC41] : 53,54pin AUX2_L_IN, AUX2_R_IN
Check Soldering.
• [JK63] on MAIN B'D
• [C422], [C423] on MAIN B'D
• [C420], [C421] on MAIN B'D
NG
OK
to 2.2. CD PLAY
z
Mark
2.6. AUX3 (OPTICAL-in)
Check Digital Audio Data from OPTICAL Input IC
MAIN B'D
• [IC42] : 3,5pin OPT_IN
• [IC41] : 5pin OPT_IN
Check Power Supply Voltages for OPTICAL Input IC.
MAIN B'D
• [JK64] : 3pin +3.3V
• [CN45] : 10pin +3.3V
Check Soldering.
• [JK64] : 3pin +3.3V
• [CN45] : 10pin +3.3V
• SMPS B'D
Check Soldering.
• [IC42] on MAIN B'D
• [IC41] OPT_IN on MAIN B'D
NG
NG
OK
OK

Denon RCD-N7 Specifications

General

Frequency range	5 - 20000 Hz
RMS rated power	65 W
Pre-out channels	1 SW
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	2.0 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.7 %
Dynamic power per channel (4 Ohm)	80 W
Power output per channel (20-20KHz@8 Ohm)	- W
Audio (L/R) in	2
Digital audio optical in	1
Headphone connectivity	3.5 mm
Connectivity technology	Wired & Wireless
Speakers connectivity type	Binding post
Audio formats supported	AAC, FLAC, MP3, WMA
Image formats supported	JPG
Video formats supported	AVI, WMV
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	99
Internet radio services supported	Last.fm, Napster
Optical drive type	CD player
Disc types supported	CD, CD-R, CD-RW
Display	OLED
Product color	Silver
Audio decoders	Not supported
Volume control	Rotary
Apple docking compatibility	iPhone, iPod
Number of products included	1 pc(s)
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.4 W

Weight and Dimensions

Depth	299 mm
Width	280 mm
Height	112 mm
Weight	4300 g
