Denso SMT7 - Allowable Shaft Load

Chapter 3 Choosing AC Servomotors
33

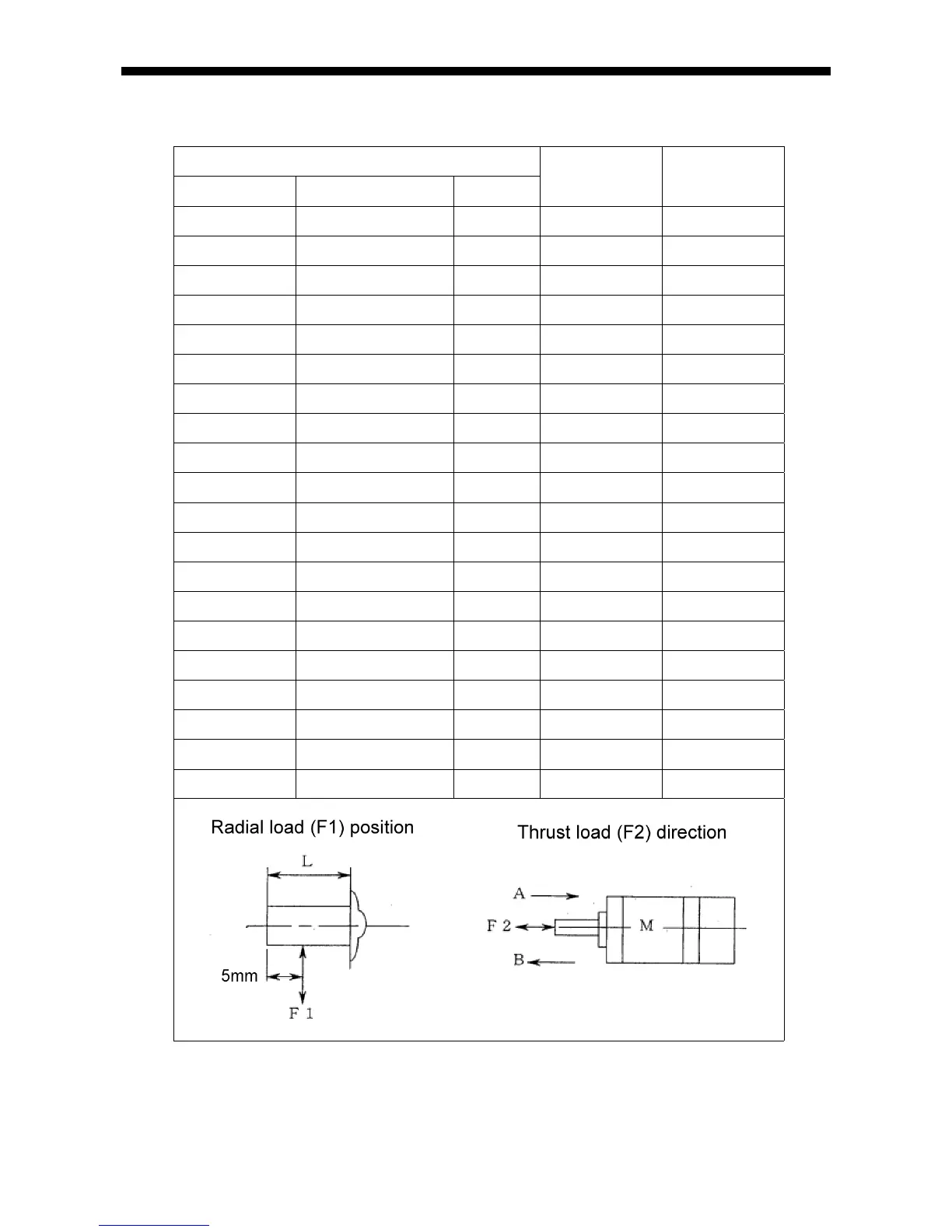

(4) Allowable shaft load
Motor
Part No. Model Capacity
Radial load
(F1)
Thrust load
(F2)
410627-0210 SGMAH-A5A1A-DH1* 50W 68N 54N
410627-0160 SGMAH-A5A1A-DH2* 50W 68N 54N
410627-0220 SGMAH-01A1A-DH1* 100W 78N 54N
410627-0170 SGMAH-01A1A-DH2* 100W 78N 54N
410627-0230 SGMAH-02A1A-DH1* 200W 245N 74N
410627-0180 SGMAH-02A1A-DH2* 200W 245N 74N
410627-0240 SGMAH-04A1A-DH1* 400W 245N 74N
410627-0190 SGMAH-04A1A-DH2* 400W 245N 74N
410627-0250 SGMAH-08A1A-DH1* 750W 392N 147N
410627-0200 SGMAH-08A1A-DH2* 750W 392N 147N
410627-0310 SGMPH-01A1A-DH1* 100W 78N 49N
410627-0260 SGMPH-01A1A-DH2* 100W 78N 49N
410627-0320 SGMPH-02A1A-DH1* 200W 245N 68N
410627-0270 SGMPH-02A1A-DH2* 200W 245N 68N
410627-0330 SGMPH-04A1A-DH1* 400W 245N 68N
410627-0280 SGMPH-04A1A-DH2* 400W 245N 68N
410627-0340 SGMPH-08A1A-DH1* 750W 392N 147N
410627-0290 SGMPH-08A1A-DH2* 750W 392N 147N
410627-0350 SGMPH-15A1A-DH1* 1500W 490N 147N
410627-0300 SGMPH-15A1A-DH2* 1500W 490N 147N
