3.2 External Dimensions of AC Servomotors

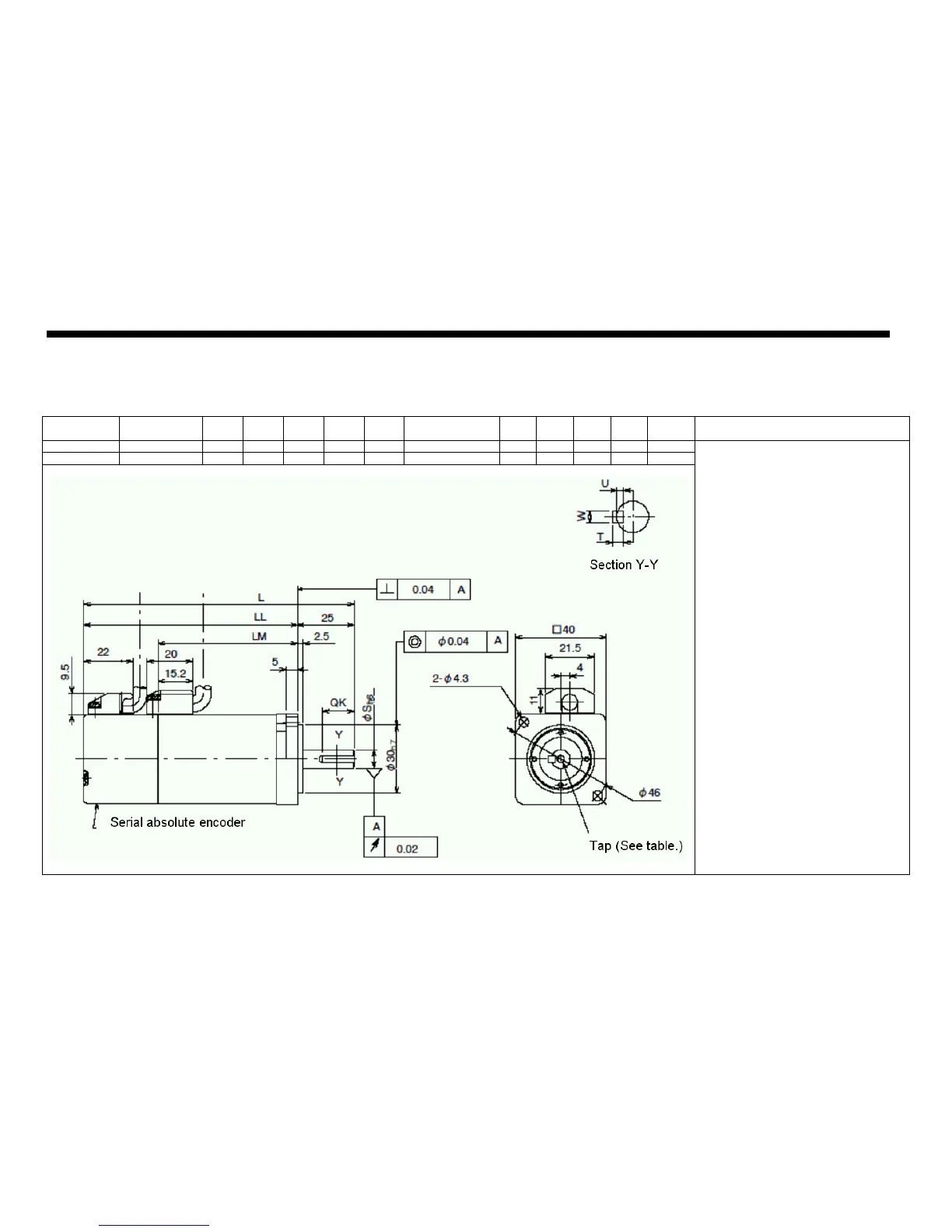

■Standard type without brake [50W or 100W]
Part No.
Motor model
SGMAH -
Rated
output
L LL LM S Tap QK U W T
Approx
weight
Remarks
410627-0210 A5A1A - DH1* 50W 102.0 77.0 44.0 6 Dia. 2.5, Depth 5 14 1.2 2 2 0.4 kg
410627-0220 01A1A - DH1* 100W 119.5 94.5 61.5 8 Dia. 3, Depth 6 14 1.8 3 3 0.5 kg
(Unit: mm)
(1) Assembly accuracy conforms to Japan
Machine Tool Builder's Association
standard (MAS402-1981). (TIR value)
a) Shaft end deflection 0.03
(Shaft projection center)
b) Squareness of flange face against
shaft 0.08 (45)
c) Eccentricity of
flange-fitting-outside diameter
against shaft
(Spigot joint portion center)
(2) Flange fixing bolt:
Use hexagon socket head bolt.
(3) Motor cable / Encoder cable length:
300 mm
