Deutz 1012 - Engine Component Illustrations

2
Engine Description
2.2 Engine Illustrations

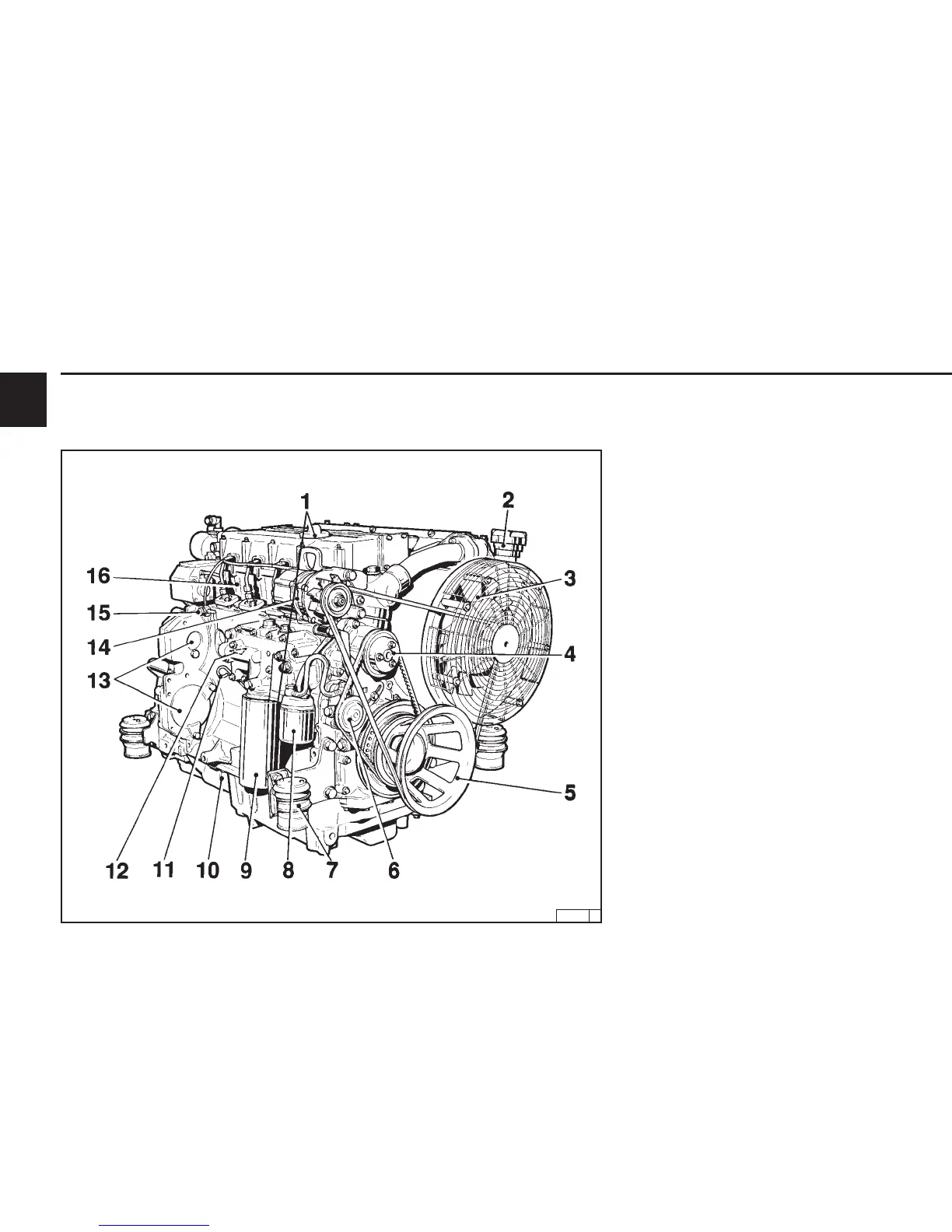

2.2.1 Service Side 1012
1 Oil filler (option: between filters)
2 Coolant filler
3 Cooling fan
4 Coolant pump
5 Belt pulley
6 Fuel pump
7 Engine mount
8 Fuel filter
9 Lube oil filter
10 Oil pan
11 Dipstick
12 Lube oil cooler
13 Mounting facility for hydraulic pumps
14 Alternator
15 Back leak fuel pipe with pressure-regulating
valve
16 Cylinder head
26234 1
