Deutz 1012 - Monitoring Systems

3
Engine Operation
3.3 Monitoring Systems
3.3.1 Engine Oil Pressure

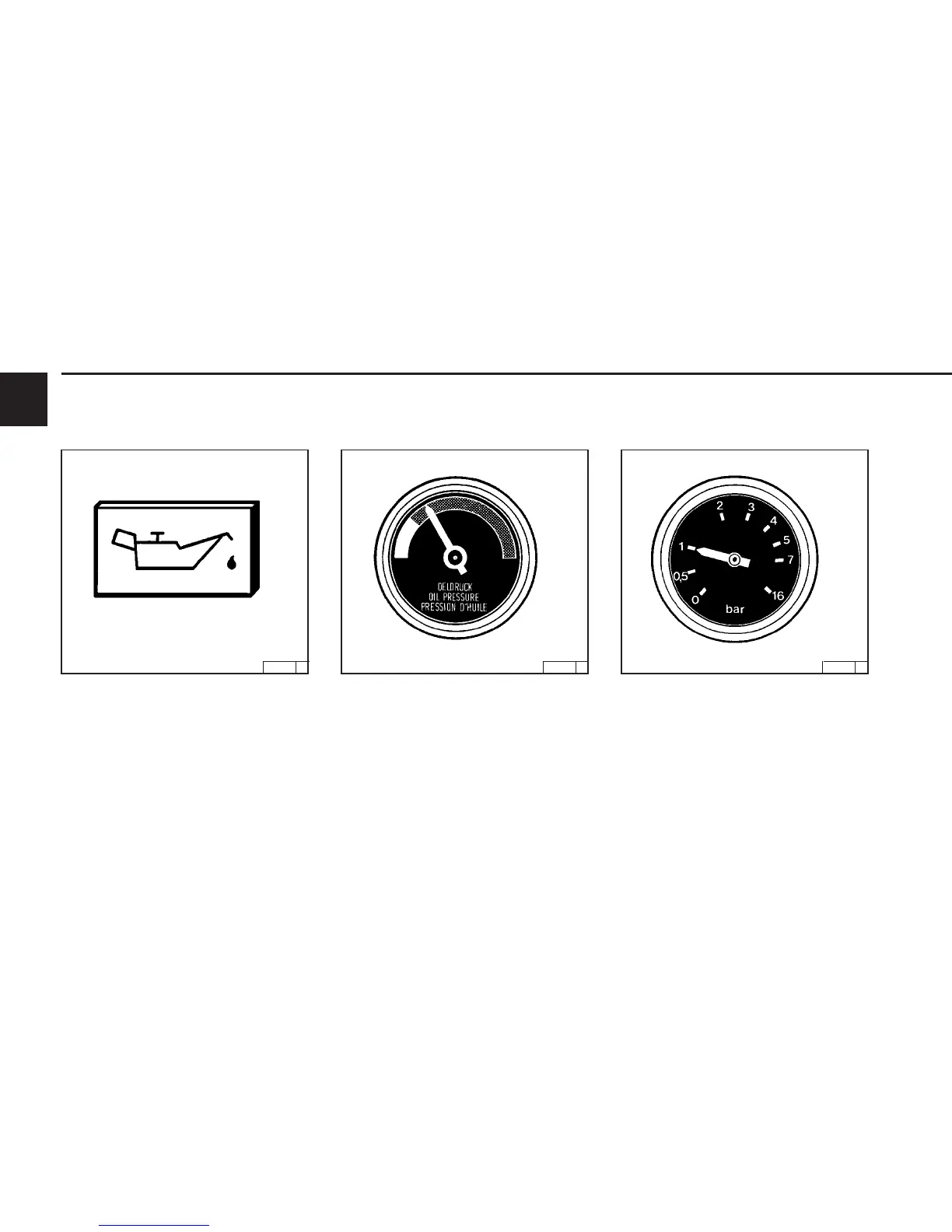

Oil Pressure Pilot Light
● The oil pressure pilot light comes on with
operating voltage on and engine off.
● The oil pressure pilot light should go out when
the engine is running.
Oil Pressure Indicator
● The pointer must remain in the green sector
over the entire operating range.
Oil Pressure Gauge
● The pointer must indicate the minimum oil
pressure (see 9.1).
