Check, tension and change
belts only with the engine off.
Refit guard, if provided.
z To retension belt, remove one or more shims
3 – as may be required – from inside. Place
removed shim(s) outside on removed half-
pulley 2.
z Turn engine over while tightening bolts 1 to
prevent belt being pinched.
z Remove hex. bolts 1.
z Take off outer half-pulley 2.
z Replace belt if necessary.

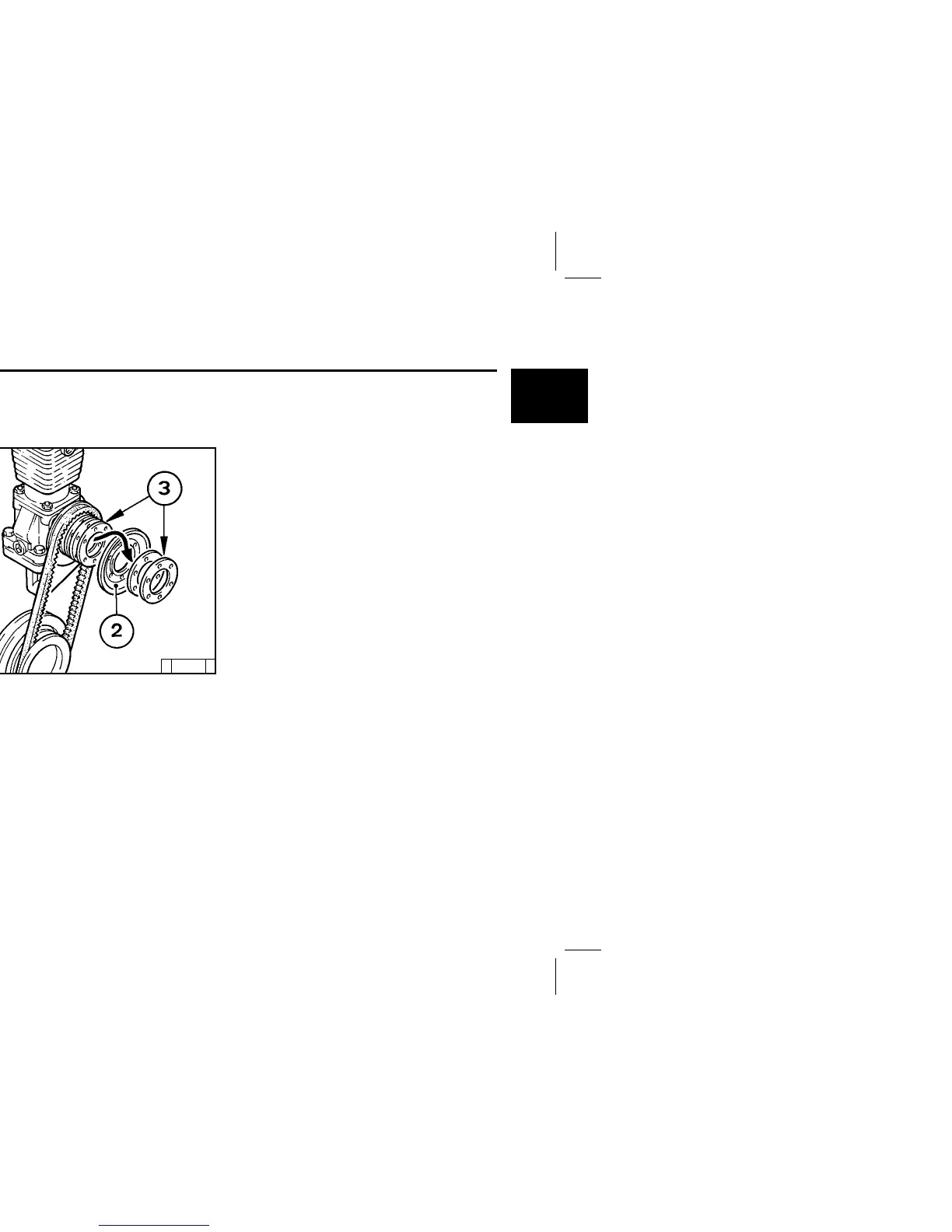

6.5.16 Tensioning /Changing
Compressor Belt
© 24 598 1
© 24 599 1
6.5 Belt Drives Service and Maintenance
9682en_K06.p65 17.11.2008, 12:2181
