Deutz 1012 - Starter Side

2
Engine Description

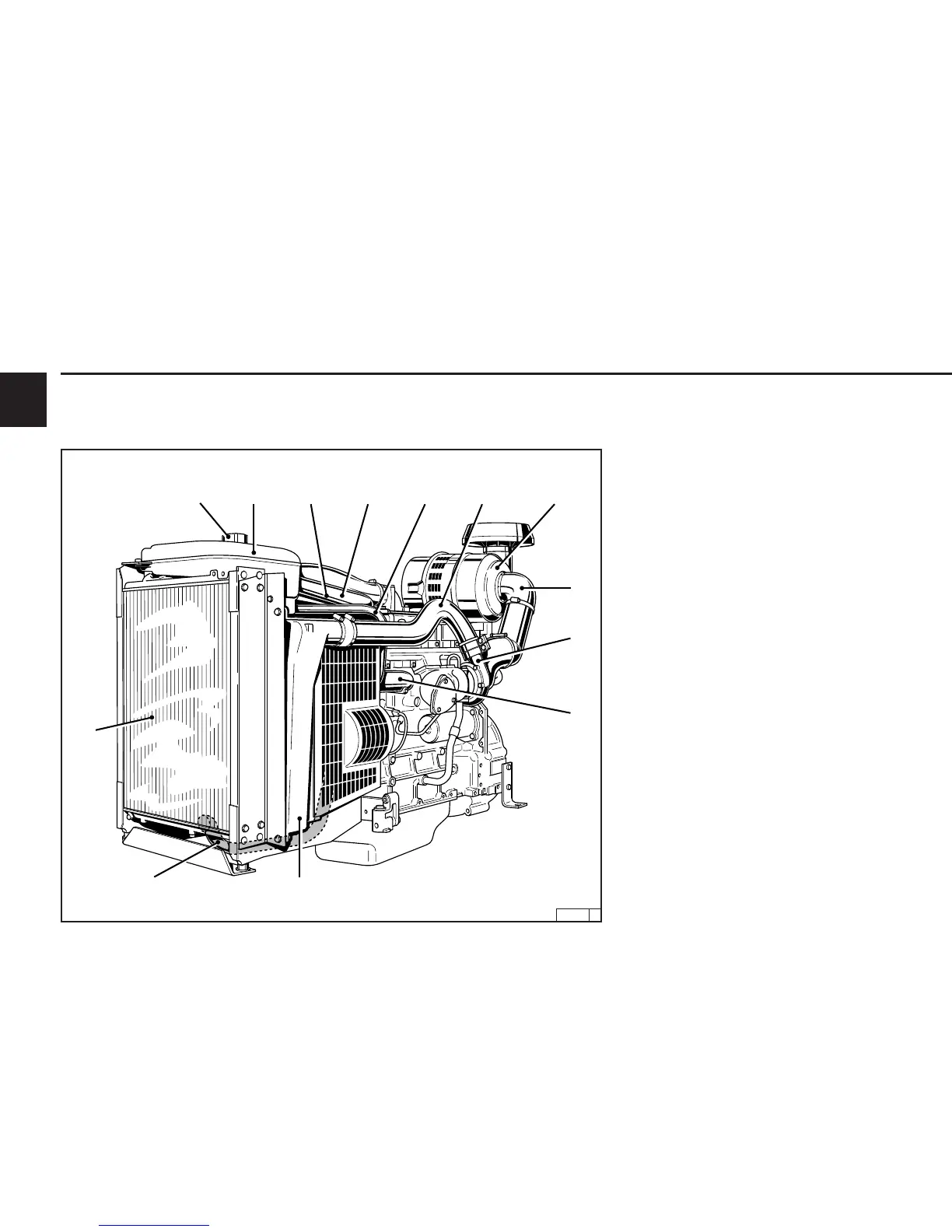

2.2 Engine Illustrations
1 Coolant filler neck with cap
2 Expansion tank
3 Vent line from cylinder head to expansion tank
4 Coolant line from engine crankcase to engine
fluid radiator
5 Expansion line from expansion tank to radiator
6 Charge air line from exhaust turbocharger to
charge-air cooler
7 Dry air filter
8 Induction air line between dry air filter and
exhaust turbocharger
9 Exhaust turbocharger
10 Coolant line from crankcase to engine fluid
radiator
11 Charge-air cooler
12 Engine fluid radiator
13 Coolant line from engine fluid radiator to engine
thermostat
26 336 0
2.2.9 Starter Side
Unit Engine BF4M 1013 EC
30 088 0
8
9
10
12
1113
1 2 3 4 5 6 7
